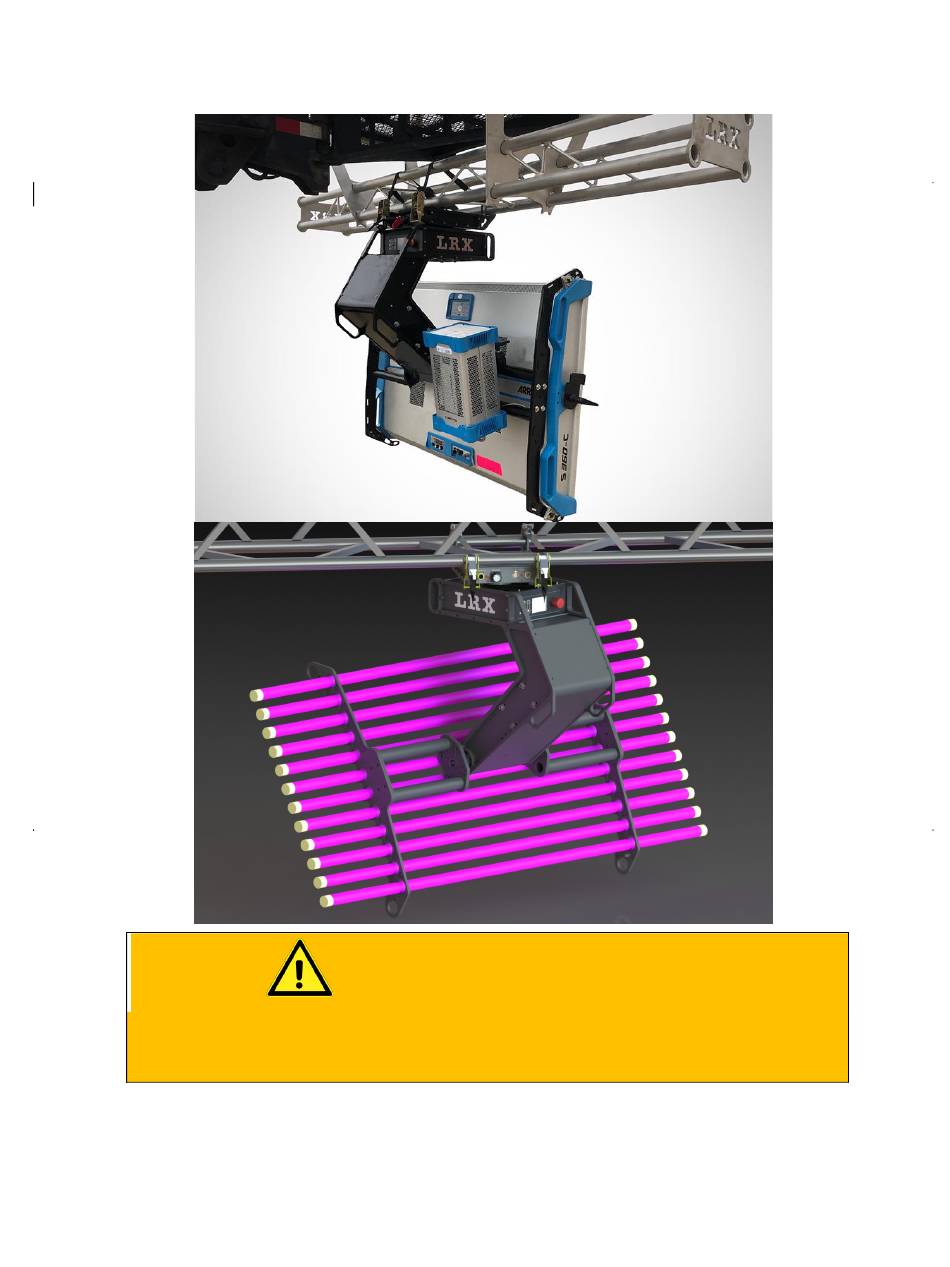

- Page 1 LRX VULTURE WARNING READ EQUIPMENT MANUFACTURES MANUAL BEFORE USING THIS PRODUCT Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 2: Safety Instructions
In case of malfunction disconnect all power supplies, discontinue use, notify supplier. Area under fixture must always be cordoned off and kept clear of all personnel. If using a power trolley with this fixture, please refer to “LRX Power Trolley” manual. THERE ARE NO USER SERVICEABLE PARTS. - Page 3 Removal of shipping case cover requires two people. Always use lifting points to avoid potential pinch points. Rotate case lid forward, then lift. Undo the internal transport ratchet strap – located at the base of the Vulture. If there are any concerns regarding handling, please contact your supervisor.
- Page 4 Uninstalling the fixture and placing into the shipping case: Remove accessories from Vulture and place them in their storage location. Use the homing feature to park the Vulture; or use hand controller to rotate the output arms to vertical and then rotate the hanger assembly parallel to base.
- Page 5 LRX VULTURE Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 6 LRX VULTURE If LRX truss is to be installed, ensure that load is centered and evenly applied to basket. Maximum capacity for LRX truss is 500 pounds evenly distributed. Never use damaged or compromised trusses or equipment. Follow all lift manufactures guidelines for load/wind capacities and de-rating as required.
- Page 7 LRX VULTURE Hanger Tee Bolt 1.5 Wraps Minimum Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 10: Hand Controller
The hand controller will allow fixture selection, (up to 32 fixtures), provide control of tilt, pan, and flood/spot functions. All switches act as momentary type. SPEED INCREASE SPEED DECREASE Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... - Page 11 All power and data cables must have a strain relief attached. If cable rollers are required refer to “LRX Cable Roller” manual. Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 12 For example if the unit was left on when the battery shut off – or AC was lost, it will power up again when AC is restored. If the Vulture shuts off (battery), it may be turned back on until the battery is exhausted. This would be several hours of intermitant use.
-
Page 13: Normal Operating Display
Start UP – Press the “ON/OFF” key once. The system will check the encoders and prepare the unit for operation. The user does not have to press “OK or START” as the Vulture will pause for a short time, then continue running if no key is pressed. - Page 14 The bottom left ICON dims and a flashing number appears indicating the remaining battery powered run time in seconds. AC Power ESTOP WARNING AC PRESENT AC FAILED Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 15: Menu Options
To operate correctly, the last device in the DMX line should have a termination resistor. The Vulture has this option built in. Select “SET TERMINATION” if the unit is the last in the chain. If there are only a few units on a single DMX line, all terminations may be set. - Page 16 (when in that mode). Manual Channel Selection Auto Learn Need Information… SPEED: The speed of the Vulture can be controlled from the Hand Control, by using the focus keys. Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 17 1) Fader – DMX values 20-40% & 60-80% - all other values are inactive and cause the axis to stop moving. “Fader” Profile “Encoder” Profile DATA connection lost / faulty Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 18 DMX PROFILES FADER MODE This mode allows for old school control of the VULTURE. When the console DMX control is set to the 50% mark, no motion occurs. If the slider is moved to less than 40%, but greater than 20%, motion occurs in one direction – conversely, if the slider is moved to greater than 60%, but less than 80%, motion occurs in the opposite direction.
-
Page 19: Encoder Mode
PAN axis to 30 Degrees WEST (looking from the rear), DMX=100% will move the PAN axis to 300 Degrees (EAST). DMX= 50% will position the VULTURE at 180 Degrees (NORTH – facing away). TILT (DMX[n+3]) works in a similar way, moving from DMX Value =1% (-30 DEGREES) to DMX=100% (170 DEGREES –... - Page 20 Once data input is absent, the unit will show “ready to park”. Press PARK, or CANCEL to exit. The VULTURE will display a 5 second countdown and a warning that the unit will begin to move automatically to the stowed position.
- Page 21 Check hanger display for proper addressing and mode. It is important to note that the LRX fixture will not begin responding to a newly selected FIXTURE/DMX address until it has been stored. Ensure the address at the fixture matches the address on the hand controller.
