4 tonne bottle jack

Advertisement

Quick Links

EC DECLARATION OF CONFORMITY

Date of issue: 1 September 2018
Reference batch number: ....................................
(to be entered by the customer)
Directive:
Machinery Directive 2006/42/EC as amended by Directive 2009/127/EC
Conforming apparatus:
Product: Halfords 4 Tonne Bottle Jack
Model: TH90404
Item code: 657164
Manufacturer:
Halfords Limited, Icknield street Drive, Redditch, Worcestershire, B98 0DE
Harmonised standards referenced or applied:
EN1494:2000 + A1:2008 Mobile or movable jacks and associated lifting equipment
The Supply of Machinery (Safety) Regulations 2008 Statutory instrument 2008
No.1597
The Supply of Machinery (Safety) (Amendment) Regulations 2011 Statutory
instrument 2011 No.2157
Halfords Limited hereby declare that the machine described below is both in its basic design
and construction and in the version marketed by us conforms to the relevant safety and health
related requirements of the appropriate EC Directives. This declaration shall cease to be valid
Date of placement onto market: September 2018
Signed....................................................................
CONTACT US
Halfords Ltd, B98 0DE.
www.halfords.com
Produced for Halfords
HAL1478~35819V2_657164_4Tonne_BottleJack_InstructionManual.indd 1-2
CHRIS HALL
Head of Quality
1 September 2018

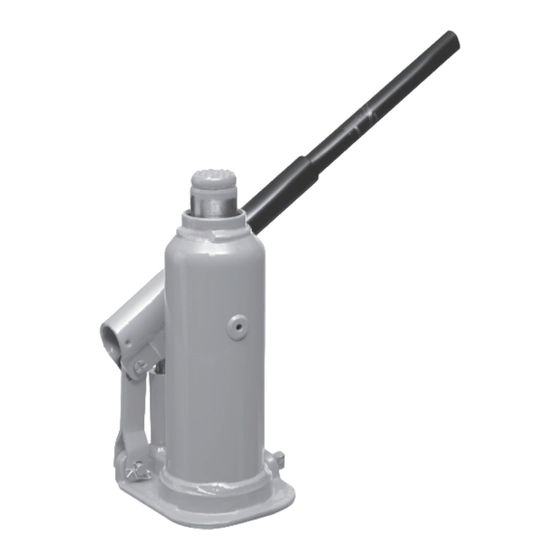

4 TONNE
BOTTLE JACK
SWL (SAFE WORKING LOAD) UP TO 4 TONNE (4,000KG)
lifting
minimum
maximum
capacity
height
*Lifting range 19cm to 36cm (including 6cm extra height from the adjustment screw)
Item Code: 657164
Model: TH90404

INTRODUCTION

For your safety please read this manual before using any lifting equipment ensuring you fully
understand its operation and the safety procedures to be observed.
Ensure this manual is retained for future reference and that new users of this product
read and understand the content before they use the product.

GUARANTEE

This product is guaranteed by Halfords against manufacturing defects for a period of
12 months from the date of purchase. This does not affect your statutory rights.
Should you experience a problem please return the product, together with the receipt and this
manual to your nearest Halfords store.
HAL1478/35819
INSTRUCTION MANUAL
height*
09/10/2018 10:19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH90404 and is the answer not in the manual?

Questions and answers

Summary of Contents for Halfords TH90404

  • Page 1 The Supply of Machinery (Safety) (Amendment) Regulations 2011 Statutory instrument 2011 No.2157 Halfords Limited hereby declare that the machine described below is both in its basic design and construction and in the version marketed by us conforms to the relevant safety and health related requirements of the appropriate EC Directives.
  • Page 2 WARNING FOR YOUR SAFETY AND TO PREVENT INJURY: Failure to comply with these instructions can cause serious injury and damage to the vehicle. If you are in any way unsure, do not attempt to use this product and consult Use Service Jack For Lifting purposes ONLY.
  • Page 3 3. To check oil level: Place the jack upright on level ground. Lower the jack to the lowest SPECIFICATIONS Use hydraulic oil ISO VG.22.32 obtainable from Halfords. DO NOT USE BRAKE FLUID. not use the jack if you suspect a fault. Refer to the trouble shooting section of this manual.
