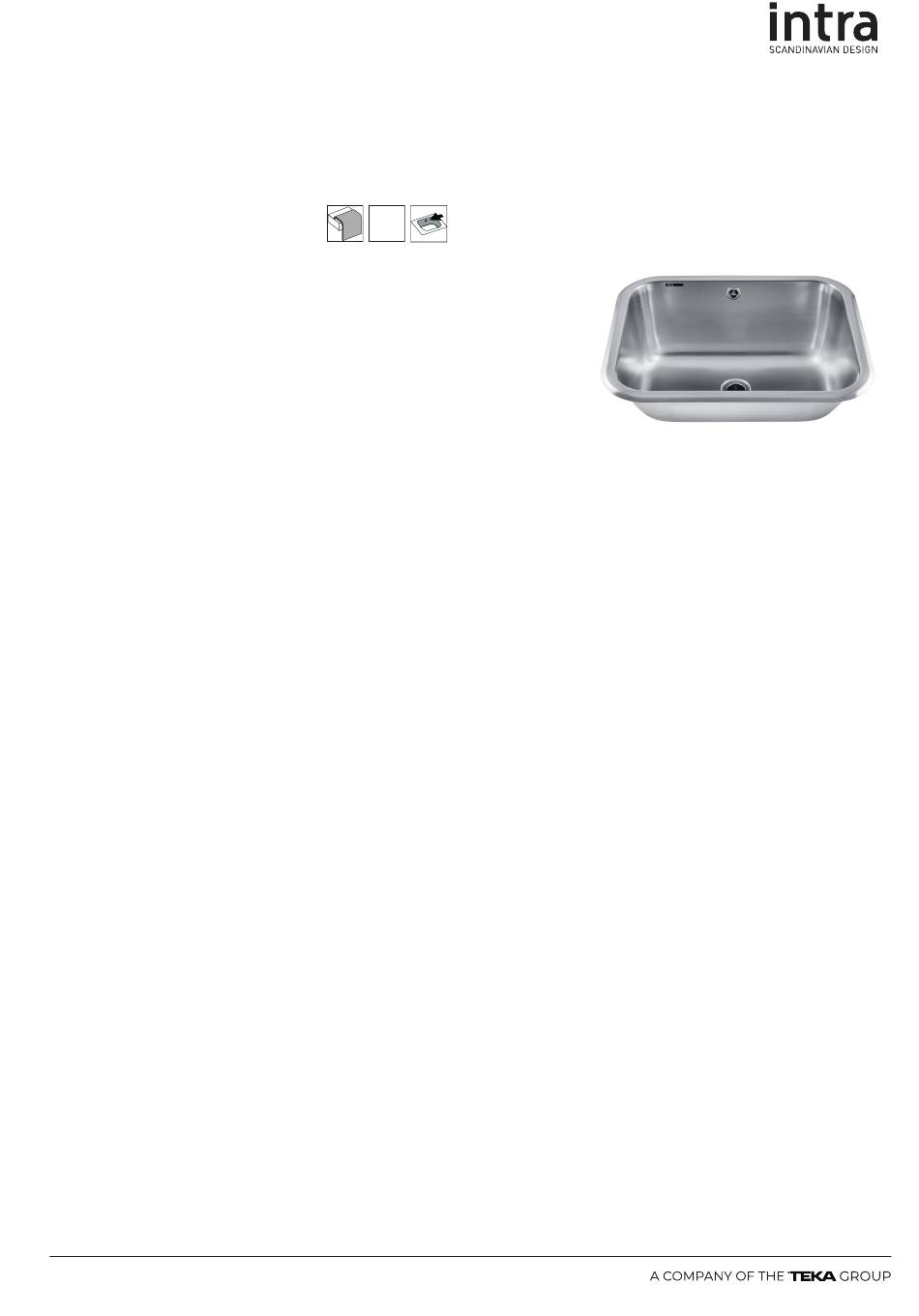

Utility sink VK50inset
Art. no.
VK50NF
GTIN
7393069022216
Overall dimension in mm
Depth in mm
Bowl dim. in mm
Cut-out dimension, inset
model
Waste hole dim. in mm
Volume in L
Material
Material thickness in mm
Gross weight in kg
Weight, pallet
Pcs per pallet
www.intra-teka.com
POLISHED
555 x 455 x 230
230
500 x 400 x 230
520 x 420, R80
Ø52
34
AISI 304
0,9
4.00
96.00
24
FDV Revision 20200507
Description
Utility sink in stainless steel, for inset. Supplied with
fixing clips and hole for overflow.
Installation
Cut a hole in the table top using the enclosed 1:1
template. Place the sink in the hole. Fasten the sink to
the table top from underneath with the fixing clips.
