CARE AND MAINTENANCE

Store outdoor furniture indoors or cover well when it is not in use.
Dust regularly with small brush or vacuum.Spills should be taken care of
immediately before they harden or stain with a slightly dampened sponge.
NOTICE
Please make sure that you have all parts indicated
before you begin assembly of this item.

Part List and Hardware List

PIECE
DESCRIPTION
A
Left side
B
Right side
C
Back
D
Seat
E
Support bar
F1
Allen bolt
Allen screw
F2
F3
Screw
Bolt extra
F4
F5
Allen key
QUANTITY
1X
1 X
1 X
1 X
1 X
4 X
M6x90
2 X
M6x55
2 X
M4x35
1 X
M6x50
1 X

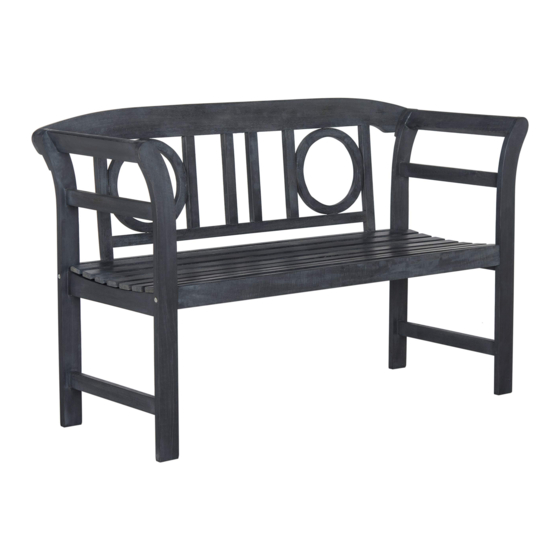

MODEL # PAT6743
Product Dimension: 19.69"Wx49.21"Dx31.1"H
Weight capacity : 600 lbs.
Warning : Do not stand on the bench
Warning : Do not torque bolts / screws

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAT6743 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Safavieh PAT6743

  • Page 1 Part List and Hardware List PIECE DESCRIPTION PICTURE QUANTITY MODEL # PAT6743 Product Dimension: 19.69”Wx49.21”Dx31.1”H Weight capacity : 600 lbs. Left side Warning : Do not stand on the bench Warning : Do not torque bolts / screws...
  • Page 2 Before beginning the assembly of the product,make sure all parts are present. Compare the parts with package contents list and hardware contents list. If any parts are missing or damaged,do not attempt to assemble the product. Tool required for assembly (included): Allen key. Step1: attach the left side (A) and the right side (B) to the Step 2: use the Allen screw (F2) to fit the back (C) to the back (C) and the Support bar (E) as shown on the picture...
  • Page 3 Step 3: put the seat (D) inside the bench as shown on Step 4: use the screw (F3) to fit the seat (D) as shown on the picture. the picture and tighten all with a screwdriver.
