NOTICE
*
*
*
*
email
PREPARATION
*
*
*
*
CARE AND MAINTENANCE
Part List and Hardware List
DESCRIPTION
PIECE
1
Top Table Wooden
Leg Table Frame
2
Support Table Frame
3
4
Right Frame
5
Left Frame
Seat Chair Frame
6
7
Back Chair Frame
8
Seat Bench Frame
9
Back Bench Frame
CSH1
Seat Chair Cushion
CSH2
Seat Bench Cushion
CSH3
Back Cushion
HW1 Allen Bolt: M6 x 0.5 x 20 mm
HW2 Allen Bolt: M6 x 0.5 x 30 mm
Flat Washer: M6 x 1 mm
HW3
HW4
Allen Key
PICTURE QUANTITY
1X
2X
1X
3X
3X
2X
2X
1X
1X
2X
1X
4X
12X
32X
44X
2X
Model# PAT7730
Product Dimensions:
35.43"x 19.69"x H14.17" (Table)
25.20"x 27.56"x H27.16" (Chair)
48.03"x 27.56"x H27.16" (Bench)
Weight Capacity : 176 lbs ( Table)
352 lbs (Single seat )
704 Ibs (Two person seat)
Warning : Do not stand on table/bench, chair
Warning : Do not over torque bolts
Advertisement
Table of Contents
Related Manuals for Safavieh Randolph PAT7730
Summary of Contents for Safavieh Randolph PAT7730

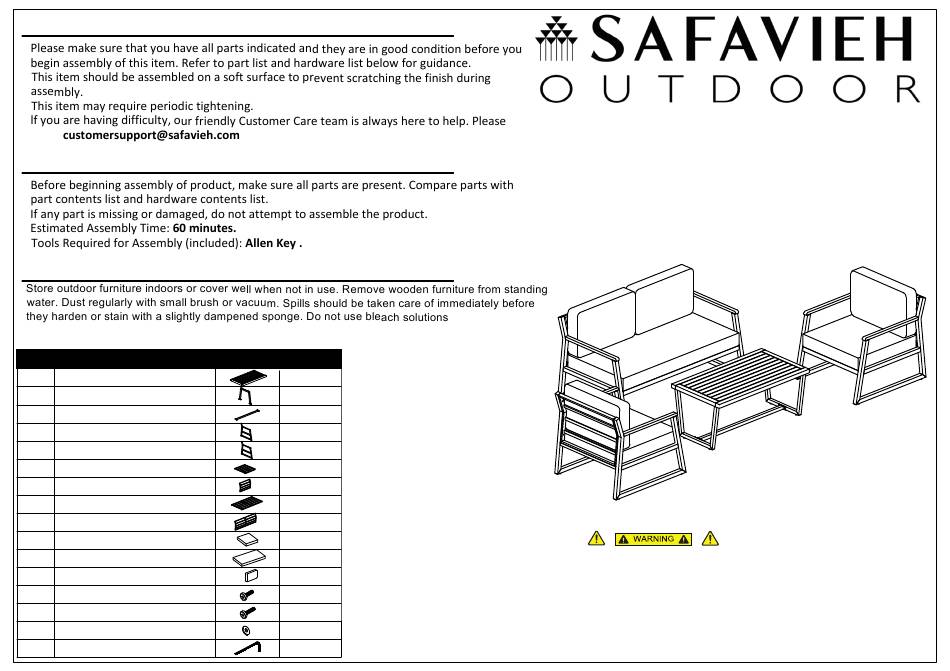

- Page 1 NOTICE email PREPARATION Model# PAT7730 Product Dimensions: 35.43"x 19.69"x H14.17" (Table) 25.20"x 27.56"x H27.16" (Chair) 48.03"x 27.56"x H27.16" (Bench) CARE AND MAINTENANCE Part List and Hardware List DESCRIPTION PIECE PICTURE QUANTITY Top Table Wooden Leg Table Frame Support Table Frame Right Frame Left Frame Seat Chair Frame...
- Page 2 PREPARATION 100% X8 Bolt X4 Bolt STEP 3: Put the Table upright and make sure all legs are level, then firmly tighten bolts with Allen Key (HW4), to STEP 1: STEP 2: Connect Top Table Wooden (1) & Leg Table Frame (2), Connect The Part from STEP 1 &...
- Page 3 PREPARATION 60 minutes. CSH3 100% CSH1 STEP 6: STEP 7: Put the Chair upright and make sure all legs are level, then firmly tighten Put on Seat Chair Cushion (CSH1) & Back Cushion (CSH3), to Chair . Stick bolts with Allen Key (HW4), to finish Chair string to Back Chair &...
- Page 4 PREPARATION 100% X8 Bolt STEP 9: Connect The Part from STEP 8 & Back Bench Frame (9), tighten Bolt (HW2), STEP 10: Put the Bench upright and make sure all legs are level, then firmly tighten bolts Flat Washer (HW3) with Allen Key (HW4). with Allen Key (HW4), to finish Bench CSH3 CSH2...
