Summary of Contents for Ross Gear Lite FDR-9647-ST
- Page 1 FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide...
- Page 2 Ross has become well known for the Ross Video Code of Ethics. It guides our interactions and empowers our employees. I hope you enjoy reading it below. If anything at all with your Ross experience does not live up to your expectations be sure to reach out to us at solutions@rossvideo.com.
-
Page 3: Safety Notices
Copyright ©2018 Ross Video Limited, Ross®, and any related marks are trademarks or registered trademarks of Ross Video Limited. All other trademarks are the property of their respective companies. PATENTS ISSUED and PENDING. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, mechanical, photocopying, recording or otherwise, without the prior written permission of Ross Video. -
Page 4: Environmental Information
To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in an environmentally friendly and health conscious manner. - Page 5 Company Address Ross Video Limited Ross Video Incorporated 8 John Street P.O. Box 880 Iroquois, Ontario Ogdensburg, New York Canada, K0E 1K0 USA 13669-0880 General Business Office: (+1) 613 4886 Fax: (+1) 613 4425 ...
-
Page 7: Documentation Conventions
Introduction This guide covers the installation, configuration, and use of the FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST. The following chapters are included: • “Introduction” summarizes the guide and provides important terms, and conventions. • “Before You Begin” provides an overview of the features of the FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST. -
Page 8: Contacting Technical Support
Contacting Technical Support At Ross Video, we take pride in the quality of our products, but if problems occur, help is as close as the nearest telephone. Our 24-hour Hot Line service ensures you have access to technical expertise around the clock. After-sales service and technical support is provided directly by Ross Video personnel. -
Page 9: Before You Begin
Before You Begin If you have questions pertaining to the operation of your GearLite module, contact us at the numbers listed in the section “Contacting Technical Support” on page 8. Our technical staff is always available for consultation, training, or service. Overview The Dual Channel Fiber Receivers/Transmitters are high-quality signal conversion solutions within the family of GearLite compact, self-contained modular products. - Page 10 10 • Before You Begin FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0)
-
Page 11: Power Connection

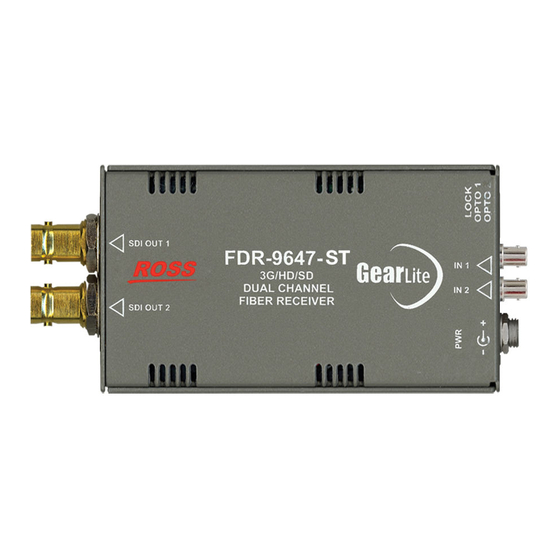

FDR-9647-ST This chapter presents information on the FDR-9647-ST hardware components and features. Overview The FDR-9647-ST is a fiber optic receiver to SDI converter capable of receiving all common serial digital signals. Each channel is fully independent and can run at different data rates. The FDR-9647-ST provides the ability to receive digital video baseband signals over a fiber optic link on an ST connector. -
Page 12: Sdi Connections
Fiber Optic Inputs The FDR-9647-ST provides two fiber optic inputs. (Figure 3.4) Bottom OPTO IN 2 OPTO IN 1 Figure 3.4 FDR-9647-ST (Right) — Fiber Optic Inputs OPTO Status LEDs The FDR-9647-ST includes two LEDs that display the status of the fiber optic input signal activity. These LEDs are located near the fiber optic connectors. - Page 13 FDT-9648-ST This chapter presents information on the FDT-9648-ST hardware components and features. Overview The FDT-9648-ST is an SDI to fiber optic converter capable of equalizing and re-clocking all common serial digital signals. Each channel of the module equalizes the incoming SDI signal, and re-clocks the signal with automatic rate detection for all popular data rates.
- Page 14 Fiber Optic Outputs The FDT-9648-ST provides two fiber optic outputs. (Figure 4.4) Bottom OPTO OUT 2 OPTO OUT 1 Figure 4.4 FDT-9648-ST (Right) — Fiber Optic Outputs SDI Connections The provides two BNCs for two SDI inputs. (Figure 4.5) Bottom SDI IN 2 SDI IN 1 Figure 4.5 FDT-9648-ST (Left) —...
- Page 15 FDB-9649-ST This chapter presents information on the FDB-9649-ST hardware components and features. Overview The FDB-9649-ST provides one fiber optic receiver to SDI converter capable of equalizing all common serial digital signals and one SDI to fiber optic converter capable of equalizing and re-clocking all common serial digital signals.
-
Page 16: Fiber Optic Connections
SDI Connections The FDB-9649-ST provides one BNC for the SDI input and one BNC for the SDI output. (Figure 5.4) Bottom SDI OUT SDI IN Figure 5.4 FDB-9649-ST (Right) — SDI Connections Fiber Optic Connections The FDB-9649-ST provides one fiber optic input and one fiber optic output. (Figure 5.4) Bottom OPTO OUT OPTO IN... -
Page 17: Physical Installation
Physical Installation If you have questions pertaining to the installation of FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST, please contact us at the numbers listed in the section “Contacting Technical Support” on page 8. Our technical staff is always available for consultation, training, or service. For More Information on... - Page 18 SURFACE MOUNT STRIPS SERIAL NUMBER LABEL PROTECTIVE BACKING FILM Figure 6.1 Surface Mount Installation Option Remove the Protective Backing Film from the other side of the VELCRO® brand Surface Mount Strips. Press the chassis into position on the surface you want to mount it to. Non-Slip Pads Four non-slip adhesive pads have been supplied for desktop placements.
-
Page 19: Warranty And Repair
In the event that your RossGear FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. - Page 20 20 • Warranty and Repair FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST User Guide (v3.0)
-
Page 21: Technical Specifications
Technical Specifications This chapter provides technical information for the FDR-9647-ST, FDT-9648-ST, and FDB-9649-ST. Specifications are subject to change without notice. SDI Inputs/Outputs Table 8.1 Technical Specifications — SDI Inputs/Outputs Item Specifications Standards Accommodated SMPTE 259M SMPTE 292M SMPTE 424M DVB-ASI (EN 50083-9) Input Voltage 800mV, nominal... - Page 22 Power Table 8.3 Technical Specifications — Power Item Specifications Required Voltage +5V DC Power Consumption Environment Table 8.4 Technical Specifications — Environment Item Specifications Thermal Environment 0°C to 40°C (32°F to 104°F) ambient, non-condensing Dimensions Table 8.5 Technical Specifications — Dimensions Item Specifications Physical Dimensions...
