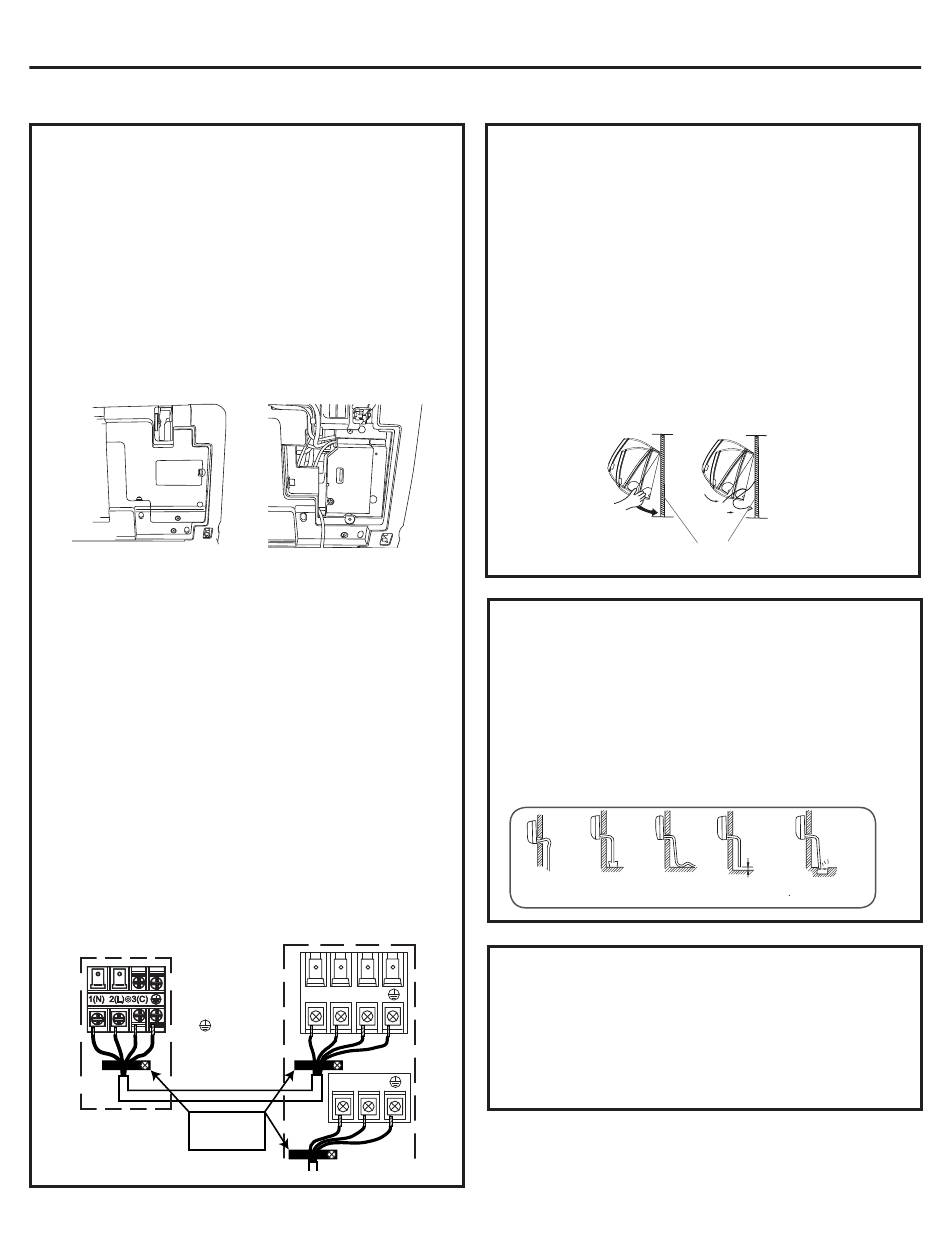

Step 2 - Installation of the Indoor Unit (Cont.)
D. Electrical Connections for the Indoor
Unit
NOTE: Be certain all wiring complies with local
building codes and NEC and that the supply
voltage for this system is correct.
• Place the indoor unit on a solid work surface
before making electrical connections.
• Both the outer plastic and inner galvanized
steel cover plates must be removed to make
the electrical connections for the indoor unit.
• Raise the front cover to access the screws for
removing these covers.
• Route the 14/4 AWG wiring through the slot in
the back of the unit and into the front access
panel.
• Using a wire stripper; remove the insulation and
separate the 4 wires.
• Make wiring connections at each terminal
according to wiring diagram. Take note of the
color of the wire at each terminal and ensure
the wires are connected to the outdoor unit
accordingly.
• Ensure each wire is under the screw terminal
plate and the plate is tightened.
• Ensure the 14/4 cable is secured under the
strain relief bracket.
• After the terminal block wiring is completed,
replace both cover plates and lower the front
casing.
Indoor unit
Sugested Colors
1
2
3
Control Wiring
4 Wire - 14 AWG
Stranded
Strain Relief
Brackets
Power Wiring
To Service Disconnect
230 Volt Supply. 1 to L1, 2 to L2.
8
Outdoor unit
=White
=Black
1 ) ( N (L ) ( C )
2 3
=Red
=Green
( N ) (L )
1 2
E. Mount Indoor Unit to Mounting Plate
• Bundle the refrigerant piping, drain piping, and
wiring with tape and carefully rout the bundle
through the piping hole.
• With the top of the indoor unit closer to the
wall, hang the indoor unit on the upper hooks
of the mounting plate. Slide the unit slightly
side to side to verify proper placement.
• Rotate the lower portion of the indoor unit to
the mounting plate, and lower the unit onto
the lower hooks of the mounting plate. (see
illustration)
• Verify the unit is secured and flush to the wall.
• Indoor Unit installation is finished at this time.
mounting plate
F. Condensate Drainage Pipe
• Verify the condensate drain line has a constant
pitch downward for proper water flow. There
should be no kinks or rises in the tubing which
may cause a trapping effect of the water (see
illustration).
Optional: Can use PVC pipe by connecting a
1" ID PVC pipe to the drain line coming out of
the wall and running to desired location.
It becomes
The end is imm-
It waves.
high midway.
ersed in water.
G. To Remove the Indoor Unit
• Slightly raise the entire unit.
• Pull the lower portion of the unit off the lower
hooks and pull slightly away from the wall.
• Lift the upper portion of the unit off the upper
hooks.
Less than
5cm
There is the bad
The gap with the
ground is too small smell from a sewer
