- Page 1 DL-8 USB Razor Derby Parylight User Manual item number: 00069698 Version: 08/2020...
- Page 2 Thank you for choosing this product. To ensure that you are completely satisfied with this product, please read and understand this manual carefully. PLEASE READ CAREFULLY Please keep this manual in a safe place for future reference. Hand over all documents when passing on the product to third parties.
- Page 3 Caution Please observe the following basic instructions in order not to endanger yourself or others and to avoid damage to external devices. Warnings Do not disassemble or modify the product. This could result in injury from electric shock. If you notice that the power cord shows obvious signs of wear, the appliance is malfunctioning, smells burnt or smokes, immediately unplug the appliance from the wall outlet and refer servicing, maintenance or repair to an authorised service centre or your dealer.
- Page 4 Installation / Hanging mounting The installation may only be carried out by authorised specialist personnel! In case of overhead rigging, please observe the applicable standards and regulations in your country. In any case, a second independent suspension must be used to secure the unit. This can be ensured by a safety net or a suitable safety rope/chain or similar.
-
Page 5: General Overview

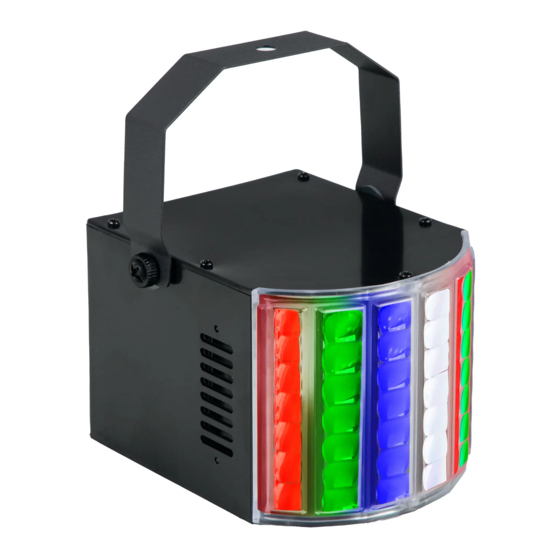

4. Technical data ....................8 1. General overview The DL-8 USB-Razor Derby Partylight is a powerful RGBW LED light effect which produces multicoloured moving light beams. The best effect is obtained in combination with a fog machine. This light effect has an integrated auto program and music control. - Page 6 3. Product overview and operating elements Name Function Bracket For mounting the fixture. Loosen the plastic screws on the side to change the angle and then tighten them again sufficiently. Lens Light emission...
- Page 7 Name Function Microphone The input signal via the microphone influences the music control. USB port for power Connect this connector to the supplied power supply 5V 2A supply. Selector switch Mode selection: Close, Auto, Sound Position Close: Blackout Auto position: Auto program Position Sound: Music control...
-
Page 8: Technical Data
4. Technical data Article description DL-8 USB Razor Derby Partylight LED Power 2W red, 2W green, 2W blue, 2W white Operating Modes Auto/Sound Size in mm 139x131.5x166.7 Weight in kg Power supply 5V/2A via USB-C Power consumption Operating temperature max. -
Page 9: Weee Declaration
WEEE declaration (Waste of Electrical and Electronic Equipment) Your product has been designed and manufactured with high quality materials and components that are recyclable and can be reused. This symbol means that electrical and electronic devices must be disposed of separately from household waste at the end of their useful life.
