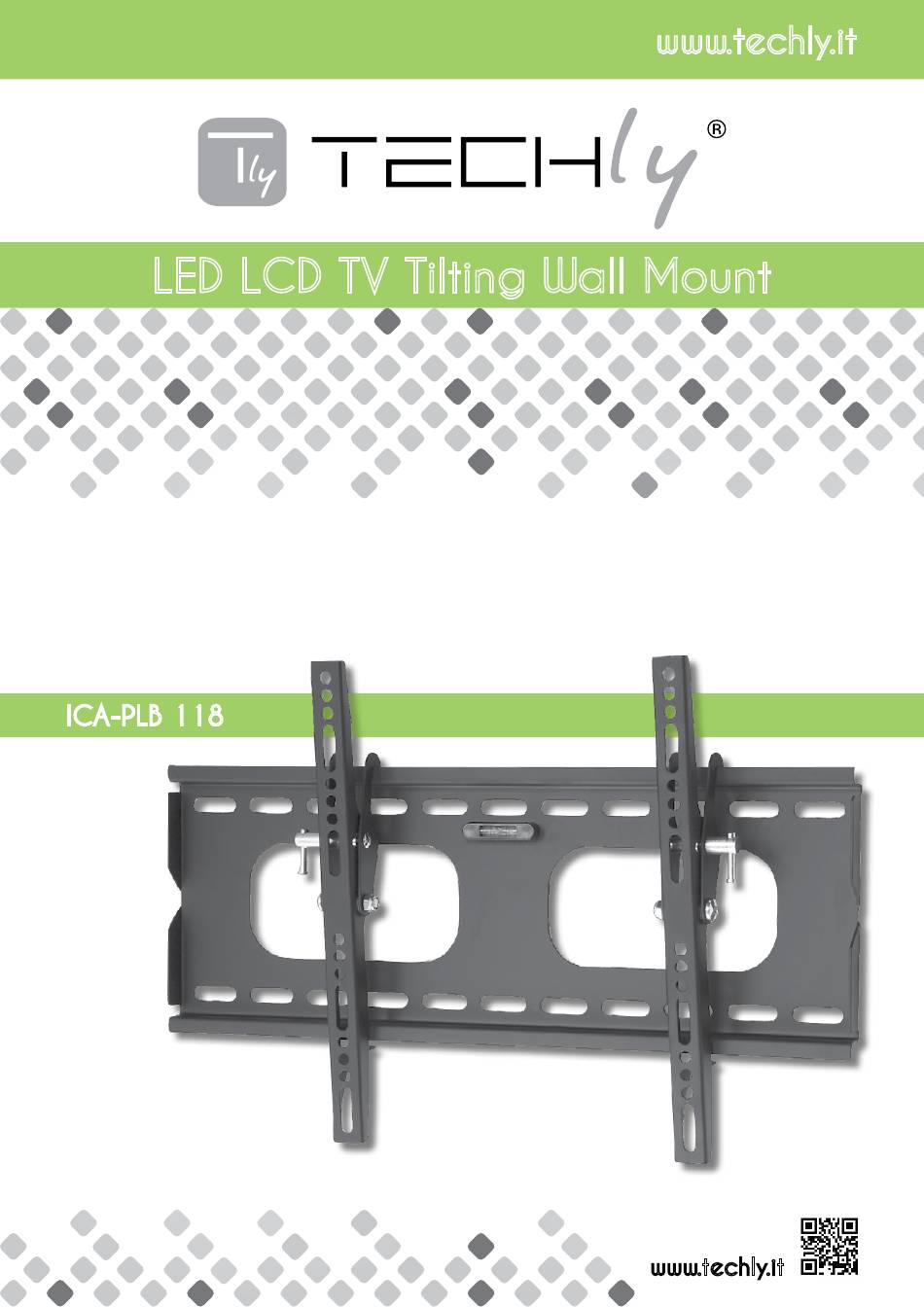

- Page 1 LED LCD TV Tilting Wall Mount Istruzioni installazione Installation Instruction ICA-PLB 118 www.techly.it...
- Page 2 LED LCD TV Tilting Wall Mount Gentile Cliente, Dear Customer, grazie per aver scelto un prodotto Techly. thanks for choosing a Techly product. Enjoy the using. Istruzioni disimballaggio Unpacking Instructions • Aprire il cartone con cura, rimuovere il contenuto e distenderlo su • Carefully open the carton, remove contents and lay out on...
- Page 3 LED LCD TV Tilting Wall Mount LISTA DELLE PARTI FORNITE | SUPPLIED PARTS LIST (1) Placca a muro-a (1) Staffa monitor sinistra-b (1) Staffa monitor destra-c (1) Wall Plate-a (1) Left Monitor Bracket-b (1) Right Monitor Bracket-c (4) M4x12 viti –e (4) M5x12 viti –f (4) M6x12 viti-g (4) M8x16 viti-h (4) M4x12 Bolt-e (4) M5x12 Bolt-f...
- Page 4 Washers(w) and 6pcs Concrete Anchor(x), shown in Diagram. Wood Stud mounting: b, c The Wall Plate(a) must be mounted to two wood studs at least 16"(406mm) apart. Use a stud b, c finder to locate two adjacent studs. It is a good idea to verify where the studs are located with an awl or thin nail shown in Diagram. Pre-drill a 2.4"(60mm) deep hole at the desired height in each stud using a 5/32"(4mm) drill bit. Make sure these holes are in the center area of the studs and level with each other. Use the Wall Plate as a template to mark the location of the second hole in each stud. Drill 2.4"(60mm) deep holes using the 5/32"(4mm) drill bit in the marked locations. vite di sicurezza Attach the Wall Plate to the wall using the 4pcs Lag Bolts(v) and 4pcs Lag Bolt Washers(w). safety bolt muro muro wall wall Schema A Schema B Diagram A Diagram B 16 pollici 16 inches 16 pollici 16 inches 16 pollici 16 inches www.techly.it...
