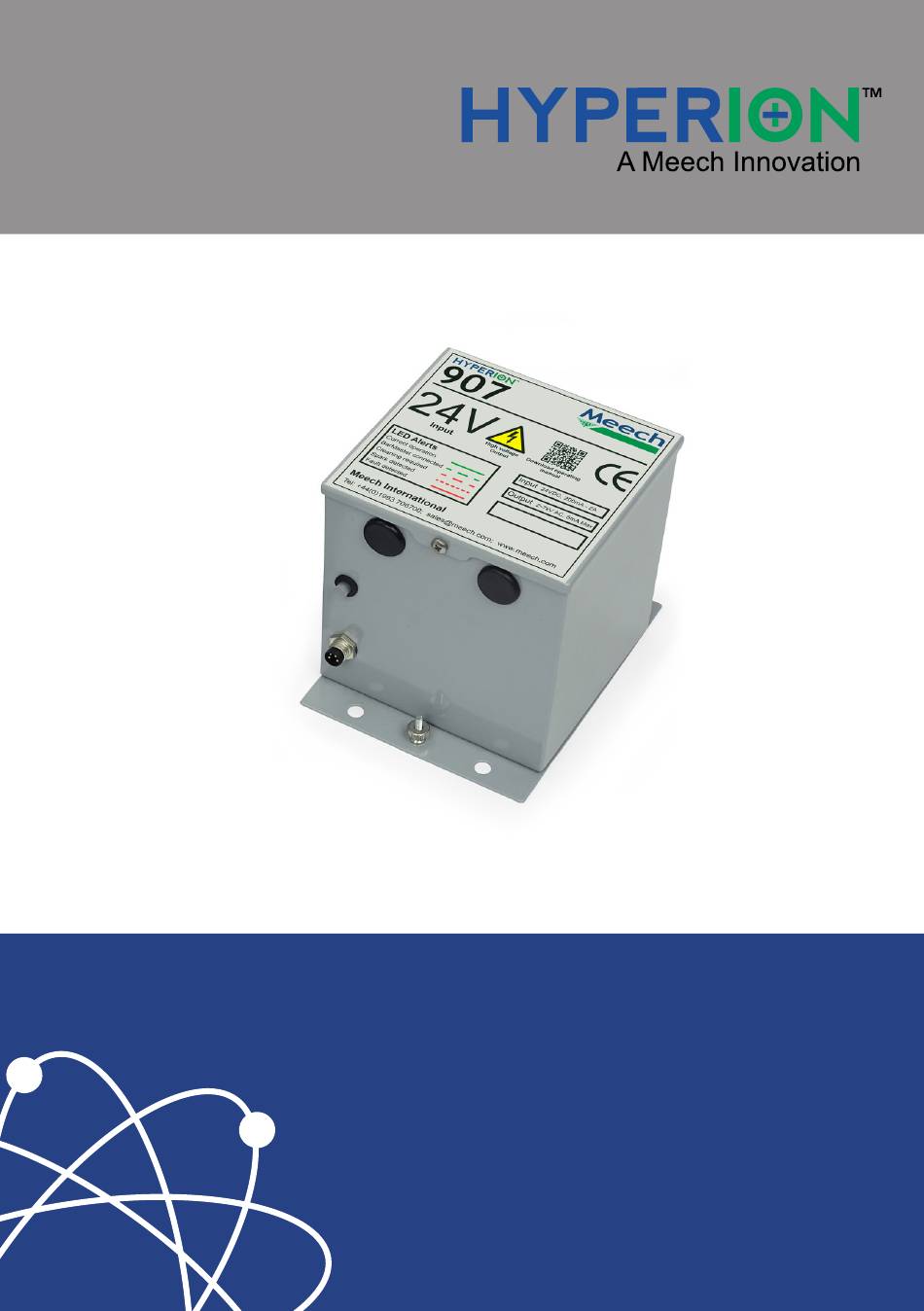

- Page 1 Operating Manual Hyperion 907 High Voltage Power Supply...
-
Page 3: Table Of Contents
Products shown in this document may be covered by one or more patents, patents applied for and/or registered designs and/or trade marks. For further information please refer to our Head Office or visit www.meech.com. © Meech Static Eliminators Ltd. 26.10.2017... -
Page 5: Introduction
Introduction The Meech Model 907 high voltage power supply has been designed to be powered by 24V DC, it produces an adjustable output of 4 - 7kV AC. The 907 provides AC power for any Meech AC Ioniser, the additional features include a pin cleaning alert and adjustable balance. - Page 6 Unpacking And Inspection Your Hyperion 907 Power Supply was carefully packed at the factory in a container designed to protect it from accidental damage. Nevertheless, we recommend careful examination of the carton and contents for any damage. If damage is evident, do not destroy the carton or packing material and immediately notify the carrier of a possible damage claim.
-
Page 7: Input Voltage And Connection
Input Voltage and Connection Installation and connection of the Hyperion 907 Power supply must be completed „ by a qualified electrical engineer. For safety reasons this equipment must be grounded / earthed via the 24V supply or by direct connection to the earth stud on the case. - Page 8 Connect the item of ionising equipment by removing the lock washer and nut from the swivel connector of the appliance. Push the connector through a port in the Hyperion power supply. Re fit the lock washer and nut to secure the appliance cable. Make sure the nut is fully tightened. Remove the Black plastic thumb screw and place the appliance cable eyelet over the stud.
- Page 9 24V 4 pole extension cables are available from Meech in 1, 3 and 8 meter lengths. Ensure the 24V supply is off before connecting the power cable. Once the cable is connected turn the supply back on, the LED’s located on either side of the Hyperion...
- Page 10 PLC Wiring 24VDC 10kΩ Pull up Output 0V, 24V Output Signal Voltage Normally Open Output Matrix Normally Closed Output Matrix 24V Supply 24V Supply 24V Supply 24V Supply Power ON Power OFF Power ON Power OFF OK (Green LED) OK (Green LED) Dirty/Faulty Dirty/Faulty (Red LED)
- Page 11 Fault finding and diagnostic check To ensure that the state of the power unit can be seen at any angle, the 907 has twin LED indicators. Their colour and state show whether the system is operating correctly or whether it needs attention. The meaning of the colours and states is as follows: Colour State Green...
- Page 12 Technical Characteristics Material of Construction Painted Steel Size 92mm x 118mm x 110mm WxDxH Weight 2.2kg Input Voltage 24V DC - N.B. Supply must be grounded. Input Current 200mA-2A Load Dependant Output Voltage 4000-7000V AC Output Frequency 67Hz Connection Murr 4pin M8, Earth terminal Settings Control BarMaster Output Signal...
- Page 13 The BarMaster is connected in line with the ionising bar’s 24V power supply cable. The power cable is connected to the BarMaster and, in turn, its cable is connected to the Hyperion 907 Power Unit. Warning: It is recommended to turn-off the 24V power supply to the power unit and wait a few seconds before disconnecting the power cable from the bar.
- Page 14 Controls The flashing cursor can be moved to the parameter to be adjusted. To scroll through the menu use the up down function. „ To adjust Frequency, Balance, feedback, Alarm levels or to reset the ion reference „ current use left and right function Please note the OK button in the centre of the toggle is redundant and has no „...
- Page 15 Adjustments Frequency Your Hyperion 907 Power Unit is set to a default frequency that provides good performance across its operating range. Lower frequencies can assist long-range use. Higher frequencies give better results at short-range. Balance To get faster decay times, it is possible to adjust the output balance. Negative static charges will be neutralised faster if the bar is biased to a positive balance (>50 Pos).
- Page 16 Reset Ion Ref. This function is used to set reference performance level when the bar is clean. It is set by Meech during initial calibration. It should be reset after making changes to either the balance or the frequency of the output.
-
Page 17: Repairs And Warranty
Repairs And Warranty The Hyperion power supply is warranted by Meech Static Eliminators Ltd to the original purchaser against defects in the material and workmanship for two years after shipment. Should any malfunction occur, please return the power supply directly to Meech Static Eliminators or your local distributor. - Page 20 Meech International Meech Static Eliminators USA Inc Meech Elektrostatik SA Meech CE 2 Network Point 2915 Newpark Drive Kaiserbaracke 166 Gábor László utca 2 Range Road, Witney Norton, OH 44203 B-4780 St.Vith Budapest 1041 Belgium Hungary OX29 0YN, UK Tel: +44 (0)1993 706700 Tel: +1 330 564 2000 / 1 800 232 4210 Tel.: +49 (0)6555 3733 399...
