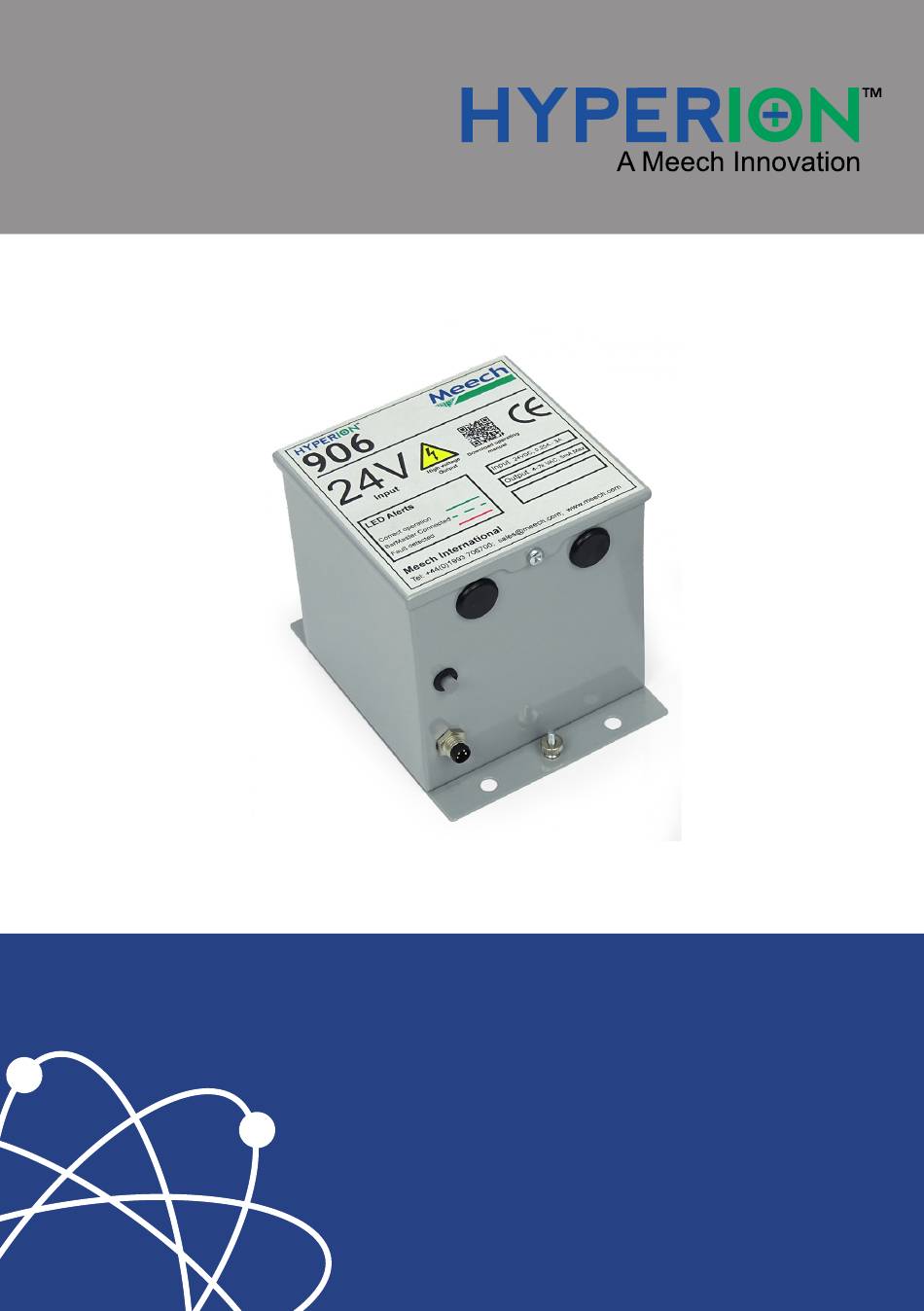

- Page 1 Operating Manual Hyperion 906 High Voltage Power Supply...
-
Page 3: Table Of Contents
Products shown in this document may be covered by one or more patents, patents applied for and/or registered designs and/or trade marks. For further information please refer to our Head Office or visit www.meech.com. © Meech Static Eliminators Ltd. 26.10.2017... -
Page 5: Introduction

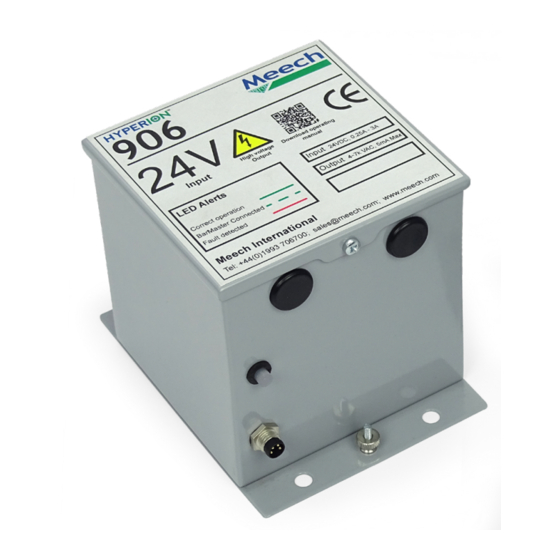

Introduction The Meech Model 906 high voltage power supply has been designed to be powered by 24V DC, they produce an adjustable output of 4 - 7kV AC. The 906 provides AC power for any Meech AC Ioniser. The 24V DC input voltage suits modern machinery and means that they operate independently of local mains voltage and frequency. -
Page 6: Unpacking And Inspection
Unpacking And Inspection Your Hyperion 906 Power Supply bar was carefully packed at the factory in a container designed to protect it from accidental damage. Nevertheless, we recommend careful examination of the carton and contents for any damage. If damage is evident, do not destroy the carton or packing material and immediately notify the carrier of a possible damage claim. -
Page 7: Input Voltage And Connection
Installation and connection of the Hyperion 906 Power Supply must be completed „ by a qualified electrical engineer. The Hyperion 906 must be grounded / earthed via the 24V supply or by direct connection to the earth stud on the case. Installation The Hyperion power supplies should be mounted in ventilated enclosures or in „... - Page 8 Connect the item of ionising equipment by removing the lock washer and nut from the swivel connector of the appliance. Push the connector through a port in the Hyperion power supply. Re fit the lock washer and nut to secure the appliance cable. Make sure the nut is fully tightened. Remove the Black plastic thumb screw and place the appliance cable eyelet over the stud.
- Page 9 24V 4 pole extension cables are available from Meech in 1, 3 and 8 meter lengths. Ensure the 24V supply is off before connecting the power cable. Once the cable is connected turn the supply back on, the LED’s located on either side of the Hyperion...
- Page 10 PLC Wiring 24VDC 10kΩ Pull up Output 0V, 24V Output Signal Voltage Normally Open Output Matrix Normally Closed Output Matrix 24V Supply 24V Supply 24V Supply 24V Supply Power ON Power OFF Power ON Power OFF OK (Green LED) OK (Green LED) Dirty/Faulty Dirty/Faulty (Red LED)
-
Page 11: Fault Finding And Diagnostic Check
Fault finding and diagnostic check To ensure that the state of the power unit can be seen at any angle, the 906 has twin LED indicators. Their colour and state show whether the system is operating correctly or whether it needs attention. The meaning of the colours and states is as follows: Colour State Green... -
Page 12: Technical Characteristics
Technical Characteristics Material of Construction Painted Steel Size 92mm x 118mm x 110mm WxDxH Weight 2.2kg Input Voltage 24V DC - N.B. Supply must be grounded. Input Current 200mA-2A Load Dependant Output Voltage 4000-7000V AC Output Frequency 67Hz Connection Murr 4pin M8, Earth terminal Settings Control BarMaster Output Signal... -
Page 13: Barmaster Programmer Connection
The BarMaster is connected in line with the 906’s power supply cable. The power cable is connected to the BarMaster and, in turn, its cable is connected to the Hyperion 906 Unit. Warning: It is recommended to turn-off the 24V power supply to the power unit and wait a few seconds before disconnecting the power cable from the bar. -
Page 14: Controls
Controls The flashing cursor can be moved to the parameter to be adjusted. To scroll through the menu use the up down function. „ To adjust Voltage or Frequency, use left and right function „ Please note the OK button in the centre of the toggle is redundant and has no „... -
Page 15: Adjustments
Adjustments Frequency Your Hyperion 906 Power Unit is set to a default frequency that provides good performance across its operating range. Lower frequencies can assist long-range use. Higher frequencies give better results at short-range. Output Voltage: 4kV - 7kV Using a BarMaster programmer it is possible to set the output voltage of the 906 to suit any Meech Ioniser. -
Page 16: Maintenance
Repairs And Warranty The Hyperion power supplies are warranted by Meech Static Eliminators Ltd to the original purchaser against defects in the material and workmanship for two years after shipment. Should any malfunction occur, please return the power supply directly to Meech Static Eliminators or your local distributor. -
Page 18: Ce Approval
CE Approval A CE Declaration of Conformity for this product exists in respect of the Low Voltage Directive:72/23/EEC (“LVD”) & Electromagnetic Compatibility Directive: 89/336/EEC (“EMCD”) Health and Safety Emission of Ozone: Considerably below international standard of 0.1ppm... - Page 20 Meech International Meech Static Eliminators USA Inc Meech Elektrostatik SA Meech CE 2 Network Point 2915 Newpark Drive Kaiserbaracke 166 Gábor László utca 2 Range Road, Witney Norton, OH 44203 B-4780 St.Vith Budapest 1041 Belgium Hungary OX29 0YN, UK Tel: +44 (0)1993 706700 Tel: +1 330 564 2000 / 1 800 232 4210 Tel.: +49 (0)6555 3733 399...
