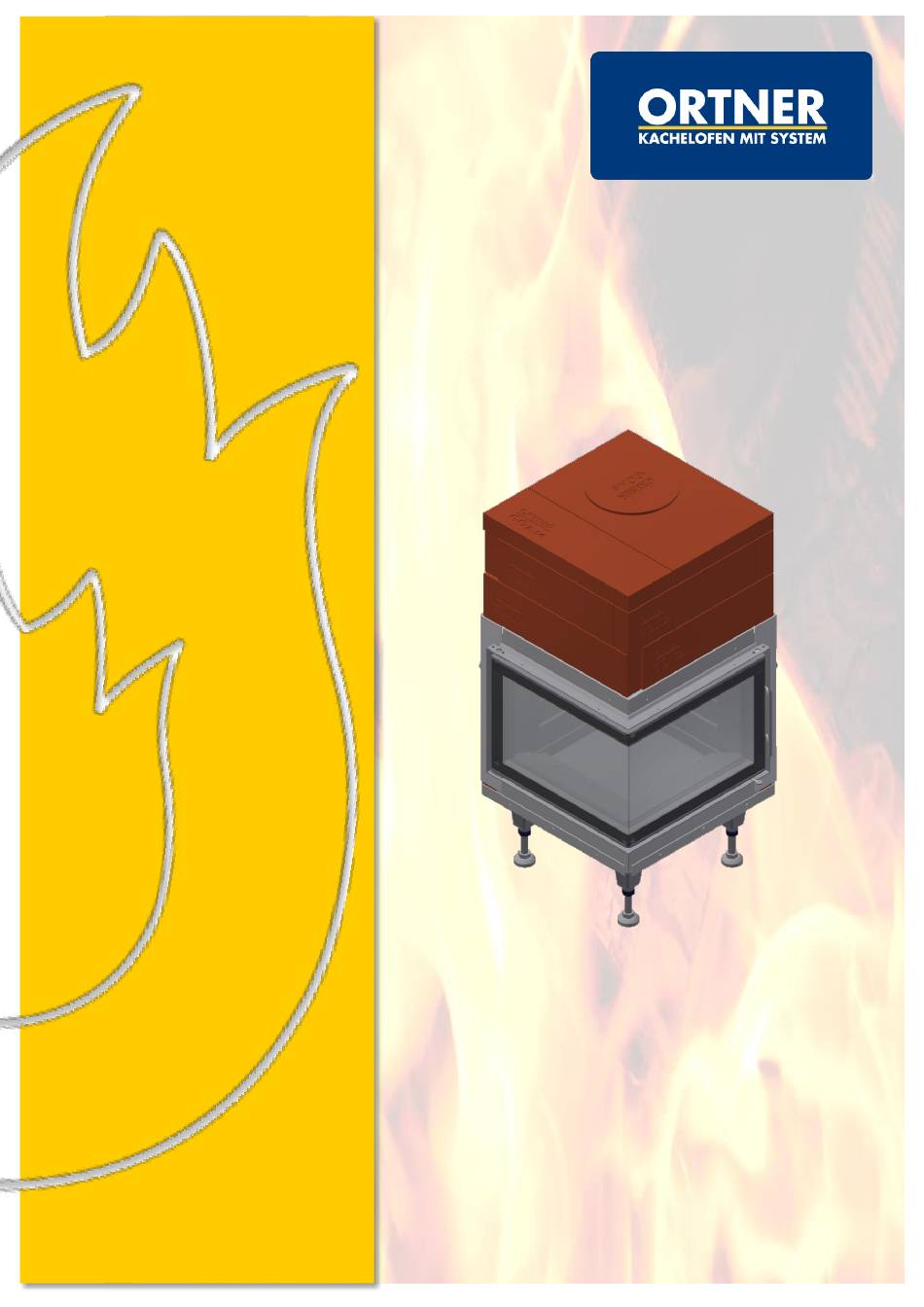

Assembly Instructions
ORTNER SE11 56/56/42
Manual and automatic operation
Because the position of the burn-out from the combustion chamber can be
determined individually, a length adjustment may be necessary with some
components! (Details are provided in the document.)
A sufficient quantity of combustion air must be provided (calculation is required). Use
caution in regard to the utilisation of ventilation systems, fume hoods, etc.!
To avoid any errors, please first carefully read our assembly instructions!
The respective national or local regulations and general provisions, stipulations and
codes of practice must be complied with!
CAUTION: Due to the thermal expansion of the door unit, a space of at least
4 mm must be provided all around the mounting frame and the stove shell. The
Version: 07_2017
space must be filled with a soft sealing strip.
Advertisement
Table of Contents
Related Manuals for ORTNER SE11 56/56/42
Summary of Contents for ORTNER SE11 56/56/42
- Page 1 Assembly Instructions ORTNER SE11 56/56/42 Manual and automatic operation Because the position of the burn-out from the combustion chamber can be determined individually, a length adjustment may be necessary with some components! (Details are provided in the document.) A sufficient quantity of combustion air must be provided (calculation is required). Use caution in regard to the utilisation of ventilation systems, fume hoods, etc.!
- Page 2 ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at...
-
Page 3: Table Of Contents
Mounting surfaces NOT TO BE PROTECTED ........................14 General ....................................15 Schematic sketch ..................................16 Exploded view ..................................18 ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at... -
Page 4: The Following Materials Are Required For The Assembly Of The Ortner Storage Corner
Mean exhaust temperature (downstream of the ceramic storage unit KMS 300) 215 °C Mean required discharge pressure with rated heat output 20 Pa ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at... -
Page 5: Important Information Before The Installation
All grey refractory concrete parts have already been cut to the correct dimensions. ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at... -
Page 6: Initial Steps
GOA.1 The outlet brick (GOA.1) is always located in GOA.1 the top 3 rows. Label inside GO11a.2 GO13a ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at... -
Page 7: Outlet On Top
Insert the provided fibre strips on the connection points between metal and ceramic. ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at... - Page 8 (If this is not done, then problems may arise later on when inserting the masonry heater bricks.) ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at...
- Page 9 The designation of the bricks relates to the GOS7 number of segments. GOS8 GOS7 GOS8 ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at...
- Page 10 However, the parts of the post- combustion chamber should not be bonded with each other. ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at...
- Page 11 GO1.8 GO1.8.2 Now position the cover of the post- combustion chamber. ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at...
- Page 12 Caution: The minimum distance between the cover of the post-combustion chamber and the jacket cover must be at least 12 mm. ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at...
-
Page 13: Technical Dimensioned Drawing
Technical dimensioned drawing (applies to both automatic as well as manual operation) ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at... -
Page 14: General Information
The SE11 56/56/42 may not be operated in installation spaces that are ventilated by means of fans in ventilation or heating air systems with the exception that the safe operation of the stove can be ensured. This means: A simultaneous operation of an air extraction system and the firing installation must be prevented. -
Page 15: Fire And Heat Protection
In the event of the use of Ortner Isoboard: 10 cm brick lining + 9 cm Ortner Isoboard. Or 3 cm Isoboard at the mounting wall + active back ventilation (at least 5 cm gap width) + 6 cm Ortner Isoboard (towards the stove, with offset joints). -
Page 16: General
In the event that more stringent provisions / stipulations apply in regard to fire protection at the installation site than those specified here, then these must be strictly observed! ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at... -
Page 17: Schematic Sketch
Schematic sketch ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at... - Page 18 13) Back ventilation: If required 14) Firebox ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at...
-
Page 19: Exploded View
Exploded view ORTNER GmbH | Hürmer Straße 36 in A-3382 Loosdorf | Tel +43 2754 2707 | Fax +43 2754 2708 office@ortner-cc.at | www.ortner-cc.at...
