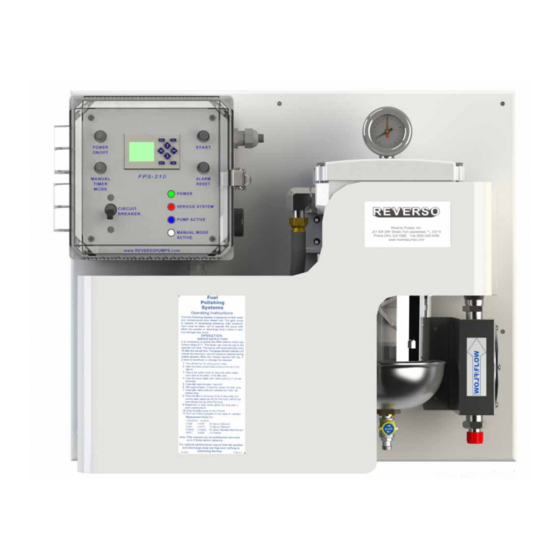

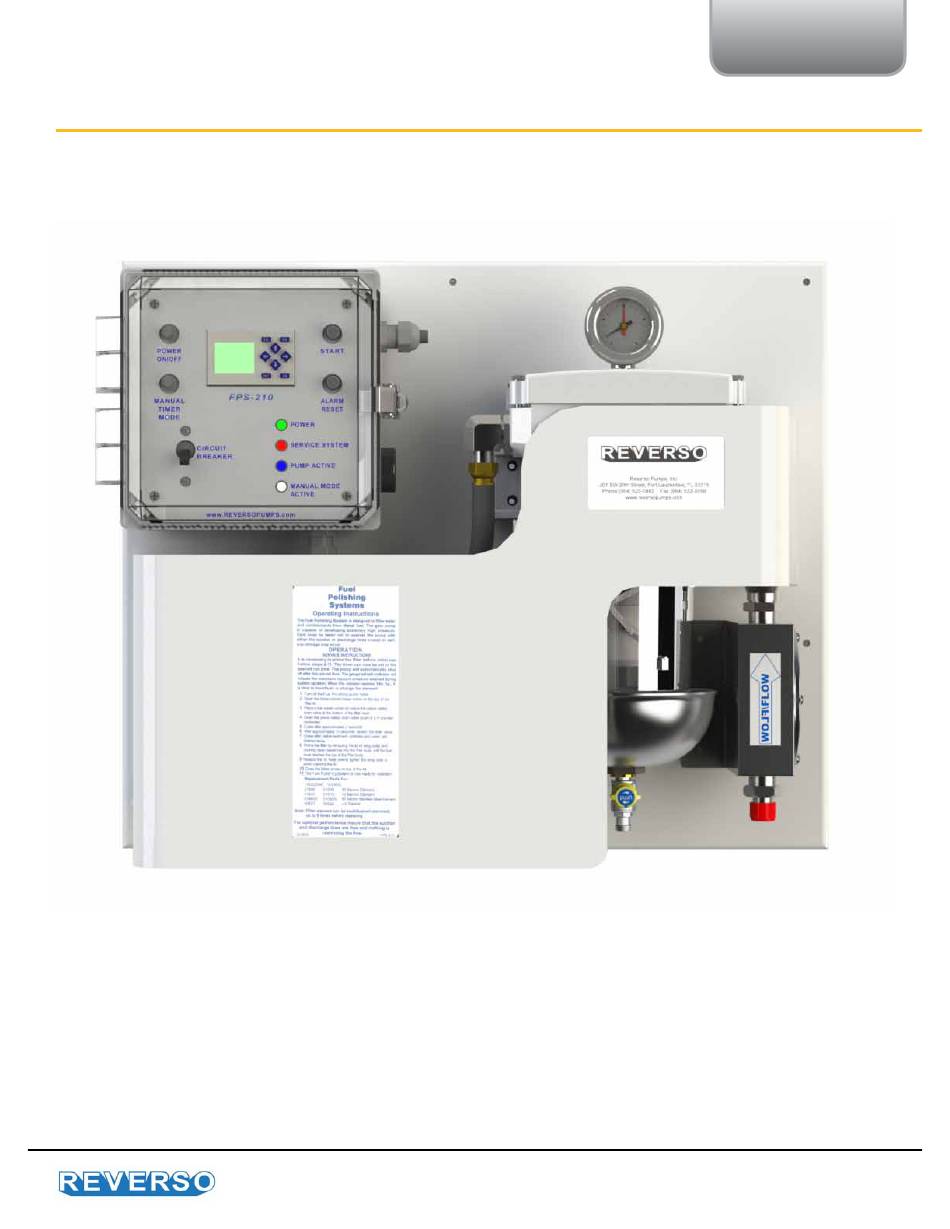

- Page 1 Manual FPS-210 Shown with optional magnetic fuel conditioner Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882...
-
Page 2: Table Of Contents
Table of Contents System Overview................3 Control Panel Overview ..............4 Dimensions ..................5 Technical Specifications ..............6 Primary Inspection, Installation, & Electrical Installation ....7 Initial Setup ..................8 Digital Timer Instructions: Set Date and Time ........9 Digital Timer Instructions: Set Schedule Timer ........ 10 Digital Timer Instructions: Set Manual Timer ........ -
Page 3: System Overview
Base Fuel conditioner (optional) Inlet - 1/2” Male JIC Drain valve - Push in and turn counter-clockwise to open Pump and Outlet (not shown, under cover) - 1/2” Male JIC Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 4: Control Panel Overview
12. Up key 13. Right key 14. Down key 15. OK key Digital Timer 16. Escape key 11 12 13 M - W - F - - MTWTFSS 11:00 15:00 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 5: Dimensions
Dimensions... -
Page 6: Technical Specifications
The system has been developed to be used with diesel fuel only, DO NOT USE WITH GASOLINE. • The system is designed to meet environmental standards for safe operation (NOT for use with fluids that have a flash point below 100°F (38°C), e. g.: Gasoline, alcohol,...) Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 7: Primary Inspection, Installation, & Electrical Installation
Tank Tank Tank to install a foot valve to keep the system primed, Fuel especially if the system is located above the lowest Tank possible fuel level in the tank. Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 8: Initial Setup
30% of the clear bowl. running if within programmed date/time to run. Verify the pump is operating by checking vacuum gauge located on the filter. Gauge will be reading 0-5 in-Hg of vacuum. Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 9: Digital Timer Instructions: Set Date And Time
Now shown is the current time screen. Press UP current time screen. key to return to program screen. Set Clock S/W Time.. Th 19:35 2012-01-26 Sync Stop Set Param Set.. Prg Name MTWTFSS MTWTFSS 11:00 15:00 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 10: Digital Timer Instructions: Set Schedule Timer
Every 5 seconds, screen will request user to push Afterwards, every 5 seconds screen will indicate the Start button to activate pogram. schedule timer is active. To Activate Automatic Push the Timer Start Active Button Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 11: Digital Timer Instructions: Set Manual Timer
In the screen shown below, the system is set to run for ESC to save. Flashing underline will disappear. 20 minutes and will stop once the time has expired. Manual Manual CURR CURR 00:00 00:00 20:00 20:00 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 12: Digital Timer: Alarms
High Water Alarm DRAIN BOWL HI-VAC High Vacuum Alarm BACK FLUSH FILTER Backflushing procedure can be executed up to 5 times before replacing the filter element. HI-PRESS High Pressure Alarm Check Discharge Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 13: Backflushing Instructions
Backflushing Instructions Prior to service, ensure the system is off. Backflushing is for particulate removal only and will not remove sludge once embedded in the filter media. Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 14: Filter Element Replacement
Filter Element Replacement Prior to service, ensure the system is off. Replacement Filter Element Element # Description 01810 10 Micron 01830 30 Micron (Standard) 01860S 60 Micron (Stainless Steel) Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 15: Spare Parts
White lid, tapped (gauge, bleed screw, and lid gasket sold separately) 65-30298 Spring frame 80-3146 Replacement pump 11-3109 Driving gear 11-3108 Idle gear Pump 11-3111 11-31110 O-ring for cover plate Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 16: Troubleshooting
Check service switch is in the ON position ( - ) Pump leaks fuel • Loose pump plumbing fittings • Worn pump shaft seal • Excessive heat from over head storage tank • Worn pump 0-rings or seals Version: 4/15/19 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882...
