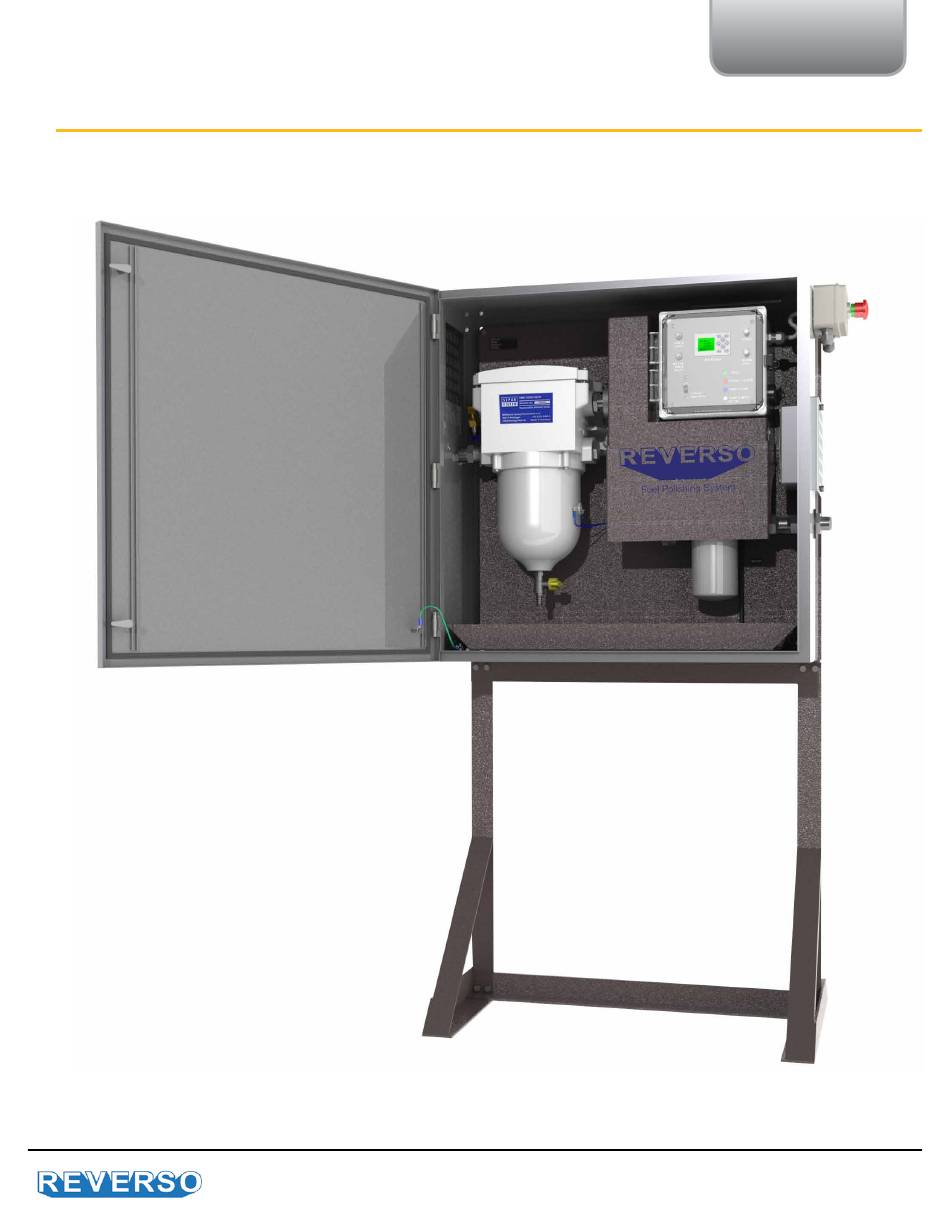

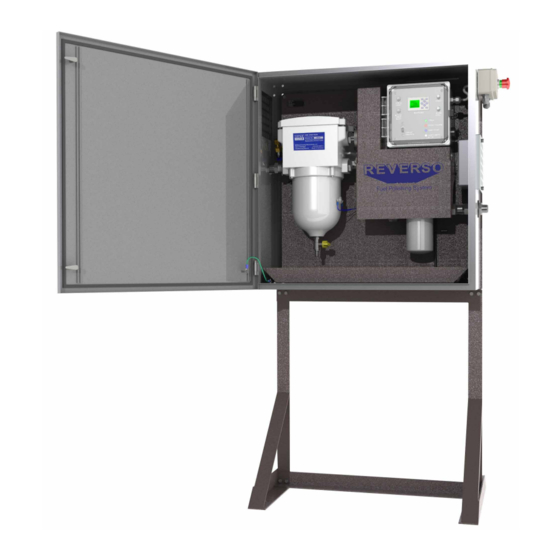

- Page 1 Manual AFP- 600 Automatic Fuel Polishing System, 600 GPH Shown with optional enclosure and stand Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882...
-
Page 2: Table Of Contents
201 SW 20th Street, Fort Lauderdale, FL 33315 Ph: (954) 522-0885 | Fax: (954) 522-0456 The information herein is the property of Reverso Pumps, Inc. Without written permission, any copying, transmitting to others, and other use except for which it is loaned is prohibited. -
Page 3: Description
Contact your representative for details and pricing. • Enclosure Primary Filtration • Enclosure for cold climate The Reverso AFP-600 is designed around the Separ • Stand for enclosure Filter brand of diesel fuel water separators. This filter • Magnetic fuel conditioner has been specifically designed to utilize hydrodynamic •... -
Page 4: 5-Stage Primary Filtration
Diag. 1 Finally, the element filters finer particulates out of the fuel before exiting through the outlet(s). Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 5: System Overview
Control panel Hinged cover - covers pump and outlet 2 micron filter 10. Spill sensor 11. Drip pan 12. Pump 13. Service switch 14. Outlet 15. Emergency stop button Enclosure Version Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 6: Control Panel Overview
12. Up key 13. Right key 14. Down key 15. OK key Digital Timer 16. Escape key 11 12 13 M - W - F - - MTWTFSS 11:00 15:00 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 7: Dimensions
Dimensions... -
Page 8: Technical Specifications
The system has been developed to be used with diesel fuel only, DO NOT USE WITH GASOLINE. • The system is designed to meet environmental standards for safe operation (NOT for use with fluids that have a flash point below 100°F (38°C), e. g.: Gasoline, alcohol,...) Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 9: Electrical And Installation
Make sure that your unit and power supply are configured for the same voltage rating. • Dry contacts are for external use. • External control voltage must be supplied by customer. Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 10: Tank Diagrams
Fuel Tank Tank Tank Tank Fuel Tank Multiple Tank Diagram Requires Advanced Control (Touchscreen) Diag. 3 Solenoid valve Foot valve Ball valve Fuel Fuel Fuel Fuel Tank Tank Tank Tank Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 11: Emergency Stop (E-Stop) Wiring
ANY REPRODUCTION IN PART OR FINISH AS A WHOLE WITHOUT THE WRITTEN USED ON NEXT ASSY PERMISSION OF REVERSO PUMPS SCALE: 1:2 WEIGHT: IS PROHIBITED. SHEET 3 OF 3 APPLICATION DO NOT SCALE DRAWING Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 12: Initial Setup
The emergency stop button is located on the right side of the enclosure, if equipped. Turn clockwise and press down to shut down the operation. Press the reset button. Then press the start button to resume operation. Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 13: Digital Timer Instructions: Set Date And Time
Now shown is the current time screen. Press UP current time screen. key to return to program screen. Set Clock S/W Time.. Th 19:35 2012-01-26 Sync Stop Set Param Set.. Prg Name MTWTFSS MTWTFSS 11:00 15:00 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 14: Digital Timer Instructions: Set Schedule Timer
Every 5 seconds, screen will request user to push Afterwards, every 5 seconds screen will indicate the Start button to activate pogram. schedule timer is active. To Activate Automatic Push the Timer Start Active Button Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 15: Digital Timer Instructions: Set Manual Timer
In the screen shown below, the system is set to run for ESC to save. Flashing underline will disappear. 20 minutes and will stop once the time has expired. Manual Manual CURR CURR 00:00 00:00 20:00 20:00 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 16: Digital Timer: Alarms
High Vacuum Alarm BACK FLUSH Backflushing procedure can be executed up to 5 times FILTER before replacing the filter element. HI-PRESS Hi Pressure Alarm Check Discharge SPILL ALARM Spill Alarm Check Connections Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 17: Backflushing Instructions
Backflushing Instructions Prior to service, ensure the system is off. Backflushing is for particulate removal only and will not remove sludge once embedded in the filter media. Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 18: Filter Element Replacement
Filter Element Replacement Prior to service, ensure the system is off. Replacement Filter Element Element # Description 04010 10 Micron 04030 30 Micron (Standard) 04060S 60 Micron (Stainless Steel) Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 19: Spin-On Filter Replacement
Shut off the fuel supply valve and isolate unit before servicing the filter. Step 2 Step 3 Replace with new spin-on Unscrew used filter as shown. filter in the direction shown. Replacement Spin-On Part # Description 04-3382 2 Micron 04-3382-01 1 Micron Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 20: Troubleshooting
Check service switch is in the ON position ( - ) Pump leaks fuel • Loose pump plumbing fittings • Worn pump shaft seal • Excessive heat from over head storage tank • Worn pump o-rings or seals Version: 12/23/15 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882...
