Summary of Contents for Protocol TREK 4X4

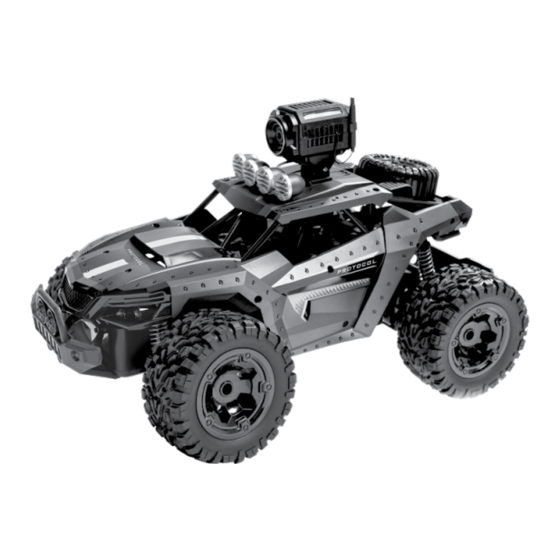

- Page 1 TREK 4X4 R/C CAR WITH LIVE STREAMING HD CAMERA INSTRUCTION MANUAL...
- Page 3 THANK YOU. Thank you for your purchase of Protocol’s Trek 4x4 R/C Car with Live Streaming HD Camera. You are about to experience the best of what remote control driving has to offer. We strongly recommend that you take the time to read this manual thoroughly.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Safety & Precautions Parts Remote Battery, Phone & Camera Installation Charging the Car Start-Up Procedure Operation: Testing the Car Operation: Driving the Car Correcting Tire Alignment Troubleshooting APP Instructions & Photo/Video Replacement Parts & Limited Warranty... - Page 5 • Never attempt to modify function of vehicle or controller or attempt • repairs using parts other than those supplied by Protocol. Spare parts are available at www.ProtocolNY.com THIS DEVICE USES COMPONENTS THAT OPERATE AT HIGH SPEEDS. AS WITH ANY SUCH DEVICE, USE CAUTION TO OPERATE SAFELY.
- Page 6 PARTS 1. On/Off Switch 2. Direction Trimmer 3. Battery Compartment 4. Camera 5. Camera Jack...
- Page 7 PARTS REMOTE 1. Power Switch 2. Power Indicator 3. Trigger 4. Battery Compartment 5. Phone Mount 6. Steering Wheel...
-
Page 8: Remote Battery, Phone & Camera Installation
REMOTE BATTERY, PHONE & CAMERA INSTALLATION INSTALLING THE BATTERIES 4 x 1.5vAA Batteries Remove battery cover from controller. Insert 4 x ‘AA’ batteries according to indicated polarities. Replace battery cover. 1. Install batteries carefully. 2. Do not mix old and new batteries. 3. -
Page 9: Charging The Car
CHARGING THE CAR BATTERY 1. Make sure the car is turned off. 2. Remove the battery from the battery compartment. 3. Connect the USB charging cable to the battery. 4. Plug the charger into a USB port. The USB light will turn red while charging and will turn green once fully charged. -
Page 10: Start-Up Procedure
START-UP PROCEDURE Before driving, the car and controller must be turned on in sequence 1. Turn on the car. 2. Turn on the controller. 3. The power indicator on the remote will blink once to indicate connection with the car. NOTE: 1. -
Page 11: Operation: Testing The Car
OPERATION: TESTING THE CAR After turning on the car and remote, pull the trigger back slightly and the car will move forward. Push the trigger forward slightly and the car will move backward. To brake, release the trigger. -
Page 12: Operation: Driving The Car
OPERATION: DRIVING THE CAR FIRST TIME DRIVERS!!! TAKE YOUR TIME! GO SLOW! Practice driving back and forth until you are comfortable with speed before attempting any other maneuvers. As you are driving, follow the below maneuvers to control the car: To turn the car right, twist the steering wheel forward. -
Page 13: Correcting Tire Alignment
CORRECTING TIRE ALIGNMENT If the car veers to the right or left without touching the steering wheel, adjust the direction trimmer to the opposite direction until the car evens out. The trimmer is located on the bottom of the car. Direction Trimmer... -
Page 14: Troubleshooting
Failure to do so could wear out and shorten the life of the engine. SYMPTOM POSSIBLE CAUSE POTENTIAL SOLUTION Trek 4x4 does 1. Communication between 1. To synchronize, turn on car first, not respond controller and car was not... -
Page 15: App Instructions & Photo/Video
“Protocol Trek 4x4” and download the App to your smartphone. 2. Turn on the car and the remote control. 3. Once it is turned on, Trek 4x4 will transmit a Wi-Fi signal, “Trek 4x4”. Make sure your smartphone is connected to that signal. - Page 16 REPLACEMENT PARTS Thank you for your purchase of Protocol’s Trek 4x4 R/C Car. We know that accidents can sometimes happen and that is why we offer spare parts kits on our website: www.ProtocolNY.com. LIMITED WARRANTY At Protocol, we’re dedicated to bringing you innovative and well-designed products that make living fun and easy.
