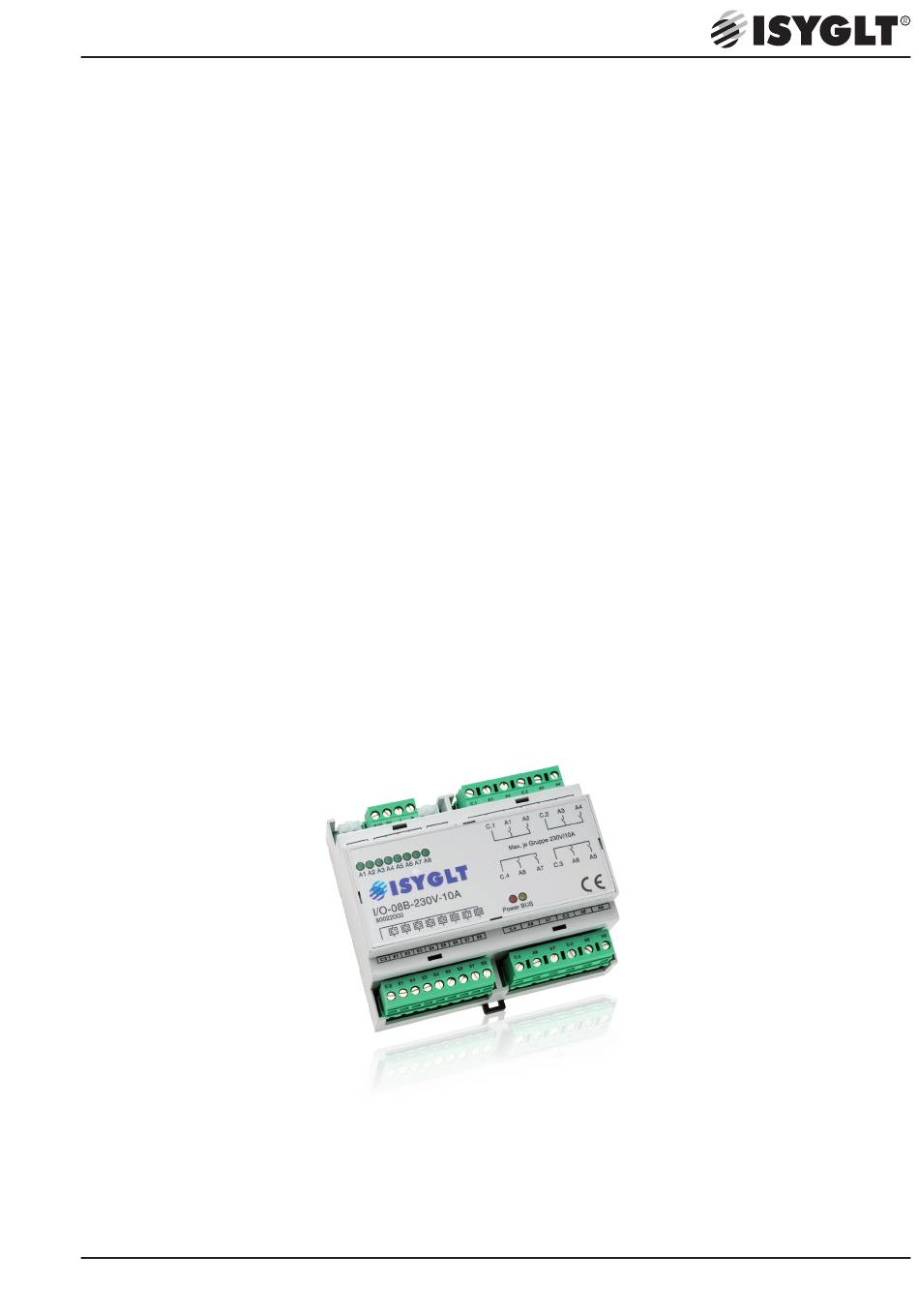

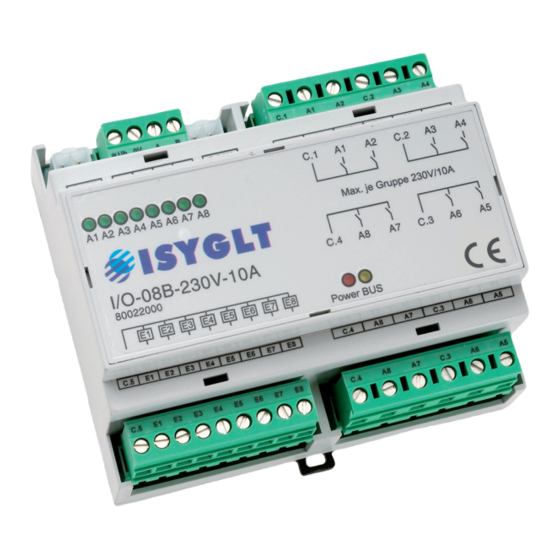

- Page 1 Technical Data / Instruction Manual I/O-08B-230V-10A Article no. 80022000 8-way Switching Actuator Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
- Page 2 These instructions are intended for qualified personnel who are 1. Notes on documentation familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for further 1.1.
- Page 3 Protect module from humidity • and configuration of the ISYGLT module may only be carried out by trained staff. In addition to these safety instructions, you must also observe the special safety instructions listed in the individual chapters for Observe the electrical installation regulations of the country in which the individual acts.
- Page 4 These are limited to the intended use of the module and refer EU on waste electrical and electronic equipment at the local collec- to the repair or replacement of the ISYGLT module. Please send the tion points for waste electrical and electronic equipment! device with an attached error description to our company address given below.
- Page 5 9. Product description With the I/O module I/O-08B-230V-10A 8 circuits with a maximum of 230V/10A (2 contacts each on a common root) can be switched. As inputs 8 optocoupler inputs 12-48V on a common reference poten- tial are available. All inputs and outputs are freely programmable in the functions via the software.
- Page 6 10. Technical data Type I/O-08B-230V-10A Article no. 80022000 Operating voltage 16V to 35V DC or 16V to 27V AC Current consumption 16V DC = 400mA, 24V DC = 250mA, 35V DC = 165mA 16V AC = 380mA, 24V AC = 220mA, 27V AC = 190mA...
- Page 7 View 11. Wiring diagram +24V BUS-A BUS-B 1 2 3 4 5 6 7 8 ISYGLT-I/O-08B-230V-10A address Art.Nr.: 80022000 max. 230V/10A per group of contacts Misprints and technical changes reserved. Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz...
