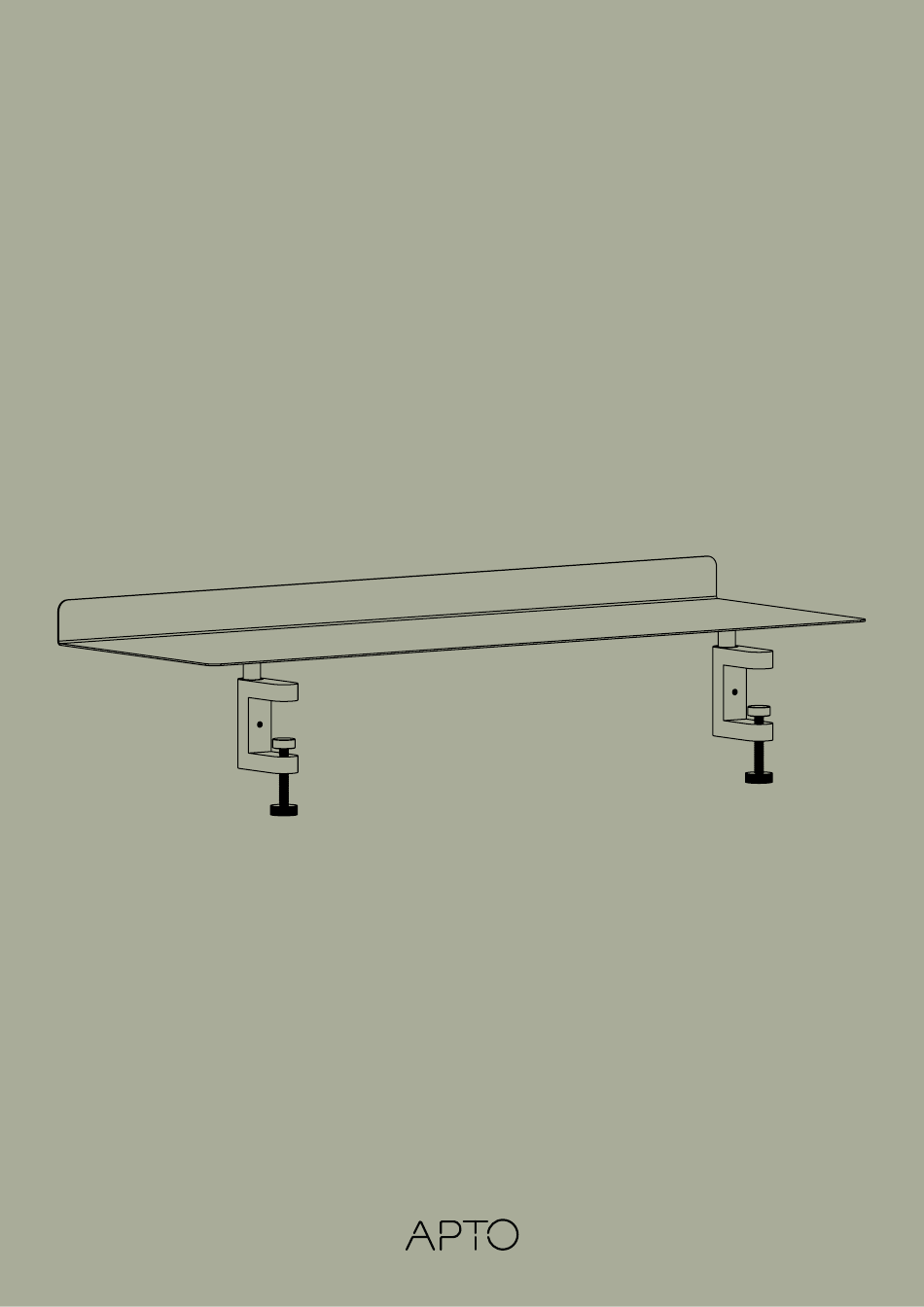

- Page 1 INSTRUCTION MANUAL TABLE SHELF - 720 MM DESIGNED BY PJ PRODUCTION & HANS THYGE & CO Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 2 INSTRUCTION MANUAL PARTS 1 x table shelf - 720 mm 2 x tube TABLE SHELF - 720 MM Nordic Dark Blue: 6000-0007-8005 Danish Dusty Green: 6000-0007-9033 Scandinavian Matte Black: 6000-0007-9000 Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
-
Page 3: What You Will Need
INSTRUCTION MANUAL WHAT YOU WILL NEED 2 x MULTI CLAMPS 1 x ALLEN WRENCH Nordic Dark Blue: 6000-0000-5008 The Allen wrench is included in the multi clamp box Danish Dusty Green: 6000-0000-7033 Scandinavian Matte Black: 6000-0000-9000 Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©... - Page 4 INSTRUCTION MANUAL STEP 1 Carefully connect the table shelf and the tube manually by hands in a clockwise fashion until the tube has been sufficiently tightened. Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 5 INSTRUCTION MANUAL STEP 2 Carefully lead the tube through the hole at the top of the multi clamp Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 6 INSTRUCTION MANUAL STEP 3 The finger screw must be open entirely before continuing. Now carefully insert the tip of the Allen wrench into the hexagon cross section of the socket screw and turn the wrench in a clockwise fashion until the socket screw has been sufficiently tightened. Designed by PJ Production &...
- Page 7 INSTRUCTION MANUAL STEP 4 The table shelf can now be attached to the prefered surface. Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 8 INSTRUCTION MANUAL STEP 5 When the placement of the table shelf is correctly, then tighten the finger screw completely. Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 9 Hårup Skovvej 2, 8600 Silkeborg, Danmark + 45 86 81 23 75 // www.aptocollection.dk D A N I S H D E S I G N Copyright ©...
