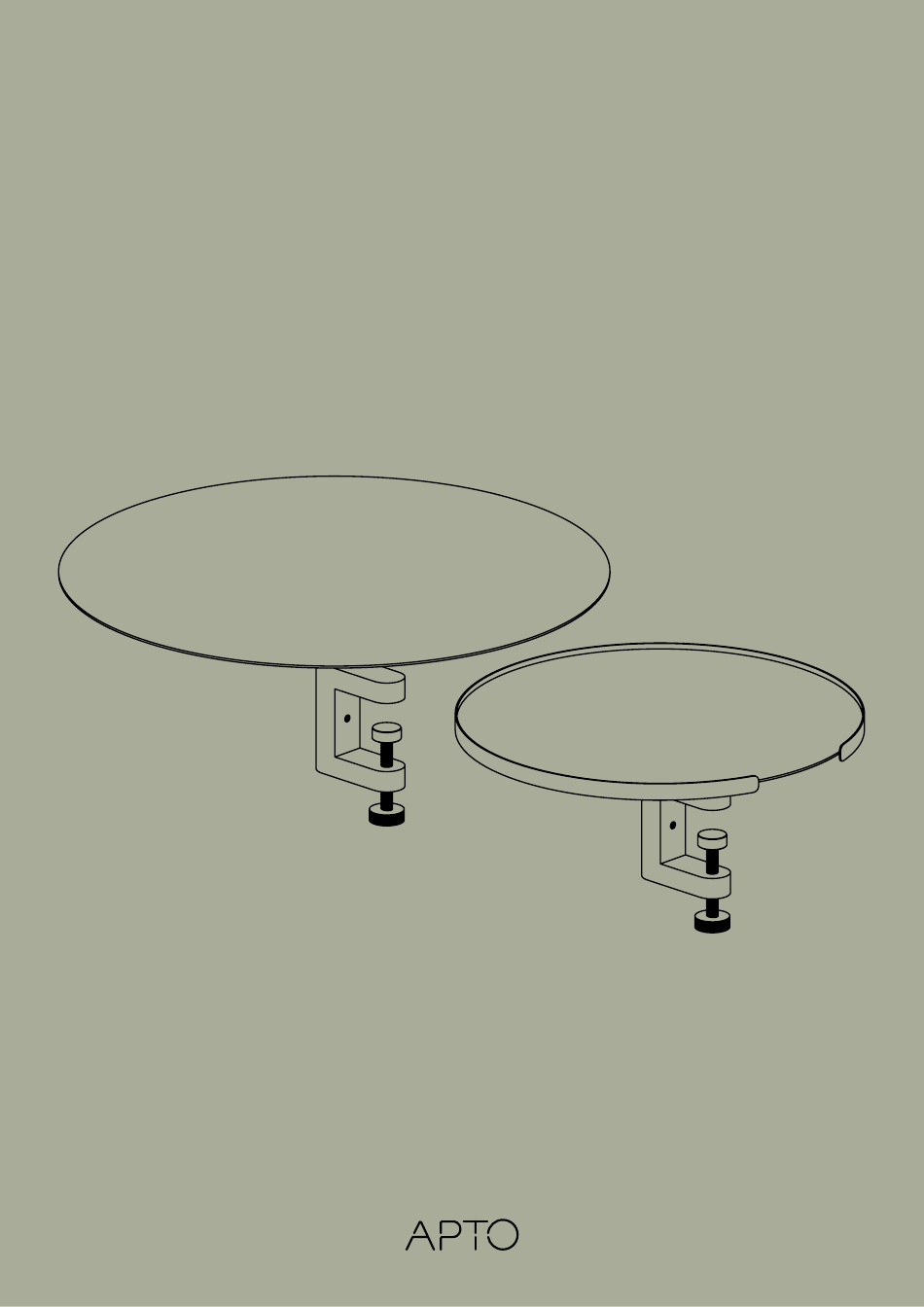

- Page 1 INSTRUCTION MANUAL ROUND TABLE - Ø280 MM & 380 MM DESIGNED BY PJ PRODUCTION & HANS THYGE & CO Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 2 INSTRUCTION MANUAL PARTS This instruction manual is equal for following: round table - Ø280 mm and round table - Ø380 mm. The different parts for the par- ticular item numbers are illuminated below. Note: the instruction manual is made with the large version measuring Ø380 mm. 1 x Ø280 mm table top 1 x Ø380 mm table top 1 x tube...
-
Page 3: What You Will Need
INSTRUCTION MANUAL WHAT YOU WILL NEED 1 x MULTI CLAMP 1 x ALLEN WRENCH Nordic Dark Blue: 6000-0000-5008 The Allen wrench is included in the multi clamp box Danish Dusty Green: 6000-0000-7033 Scandinavian Matte Black: 6000-0000-9000 Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©... - Page 4 INSTRUCTION MANUAL STEP 1 Carefully connect the table top and the tube manually by hands in a clockwise fashion until the tube has been sufficiently tightened. Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 5 INSTRUCTION MANUAL STEP 2 Carefully lead the socket screw through the hole in order to fastened and stabilize the round table. Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 6 INSTRUCTION MANUAL STEP 3 Carefully lead the tube through the hole at the top of the multi clamp Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 7 INSTRUCTION MANUAL STEP 4 The finger screw must be open entirely before continuing. Now carefully insert the tip of the Allen wrench into the hexagon cross section of the socket screw and turn the wrench in a clockwise fashion until the socket screw has been sufficiently tightened. Designed by PJ Production &...
- Page 8 INSTRUCTION MANUAL STEP 5 The round table can now be attached to the prefered surface. Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 9 INSTRUCTION MANUAL STEP 6 When the placement of the round table is correctly, then tighten the finger screw completely. Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 10 Hårup Skovvej 2, 8600 Silkeborg, Danmark + 45 86 81 23 75 // www.aptocollection.dk D A N I S H D E S I G N Copyright ©...
