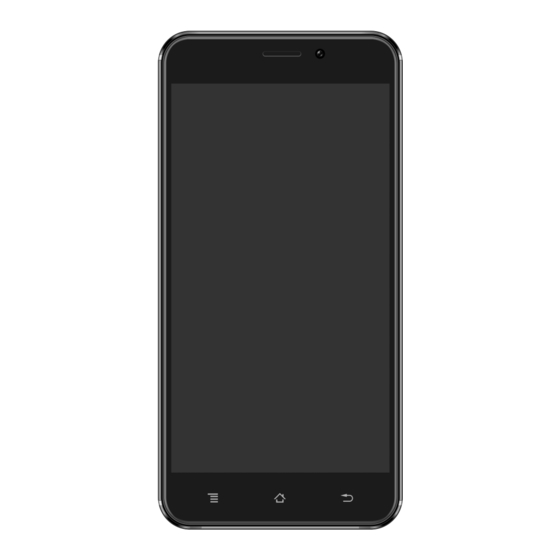

- Page 1 S5070 Duo 4-core IPS Quick Guide...
-
Page 2: Table Of Contents
Operating system Android™....9 Basic control........10 Making calls........14 Messages...........16 Selection of network......17 Photography........17 PC connection........18 Safety and ecology......19 Declaration of conformity....20 Before you start Thank you for buying of our ALIGATOR mobile phone . Before you start please read carefully this instruction manual. -
Page 3: Dual Sim Function
DUAL SIM function Your mobile phone can be operated with 1 or 2 SIM cards. If you insert only one SIM card the mobile phone works as an ordinary mobile phone. In case you insert 2 SIM cards at the mobile phone both are active at the same time. - Page 4 Mobile phone can influence the function of the cardiac pacemakers or other implanted appliances – please consult your medical doctor Switch off the mobile phone always in the aircraft Do not use mobile phone near the petrol station. Always switch off the mobile phone near explosives Use only the original batteries supplied by the producer.
- Page 5 Please keep the mobile phone 2.5 cm away from the body while calling. You lower by that the quantity of electromagnetic radiation absorbed by your body Handle the mobile phone with care, protect it from falling on the ground, from mechanical damage, impurity or high temperatures.
-
Page 6: Mobile Controls
Mobile controls 1. Button : APK 2. Button : Main screen 3. Button : Backwards 4. Button : Volume... -
Page 7: Insert Battery And Sim Card
5. Button : Switch On / Off 6. Earphones 7. Headset connector 8. Front camera 9. Micro USB connector lnsert battery and SIM card Slip your nail at the slot under the battery cover in the corner on the back side of the mobile phone and carefully pull down the cover. -
Page 8: Switch On / Off
Put the battery cover back. Place the cover on the back side of the mobile phone and press gently around the circuit untill the cover clicks properly on its place. Switch On / Off To Switch On - press the button (5). Starting of the mobile phone can last few seconds. -
Page 9: Select Sim For Calls, Sms, Internet
It is necessary to unlock the screen after the activation. Put your finger on a „Lock“ symbol and move it in the upwards direction. The screen will be unlocked. Selection of SIM card for calls, SMS and internet Tap on the main screen, click Settings and select SIM card. -
Page 10: Basic Control
Basic control Meaning of the contact buttons (1) to (3) Launched applications/APK – serves to display a list of recent applications. After a long press, the menu items available on the current screen or in a running application will be displayed Main screen –... - Page 11 System control Your phone is operated by using both the buttons above, but mainly using the touch screen. Selecting items on the screen, confirming dialogs and graphical buttons on the screen are done by tapping on them. Google account It is necessary to create the Google™ account which can be set up in following simple steps: 1.
- Page 12 Main screen All installed applications can be displayed by the button placed in the middle of the lower part of the main screen. In basic equipment of the mobile phone you can find applications for making call, sending messages and e-mails or many other useful applications.
- Page 13 Information and status display So called „status bar“ is placed in the upper part of the screen. You may find here the information about time, battery level and signal strength but also other useful information. For example the information about new SMS, information about the system or applications.
-
Page 14: Making Calls
Making calls Dialling Click on the earphone icon on the main screen. A screen with keypad for number dialling will be displayed. You can enter the tel.number with the use of the keypad buttons. Similarly as on the common telephone there are the letters displayed on the buttons so you can enter also the name. - Page 15 can dial the number by its pressing and make your call. Answer and Reject the call If somebody is calling you the information about his telephone number (if available) and a button with the receiver is displayed on the screen to answer the call : move the button to the right towards the symbol of a green receiver...
-
Page 16: Messages
moments after delaying the phone away from the ear. Press the red button on the screen to finish the call . Messages 1. Click on the icon of Messages on the lower part of the main screen op open the screen with applications and select the item Messenger A list of conversations containing received and sent SMS and MMS... -
Page 17: Selection Of Network
5. To send the message – press the arrow button placed on the right side of the text Selection of network You can choose whether your phone will use 2G or 3G network. Tap on the main screen on the icon Settings and select Next in the Wireless &... -
Page 18: Pc Connection
Press the shutter button on the display to take a picture of the scene. Every once in a few seconds, if the scene is changed, the camera automatically focuses on the center of the image. To speed up the focus or focus on another part of the image, tap the desired position on the display. -
Page 19: Safety And Ecology
After that the phone's Internal storage and an inserted MicroSD card are connected with your computer in the section Computer - Portable Devices, under the name ALIGATOR S5070. The connection can be cancelled by disconnecting of the cable. Safety and ecology... - Page 20 throw the used devices away at the common municipal waste!!! They may contain the substances dangerous to the environment. Hand over the product to the respective collection point which provides the ecological liquidation. Please contact your dealer to get more information how to deal with the used products.
-
Page 21: Declaration Of Conformity
+60°C. Danger of explosion or fire. Handling with the used batteries in contradiction with given instructions is illegal! Declaration of conformity ADART COMPUTERS s.r.o. declares that the type of the radio device ALIGATOR S5070 is in compliance with Directive 2014/53 / EU. www.aligator.cz...
