QUICK
INSTALLATION
MSX-E3511
Ethernet analog output system
02.05 - 01/2016
Addi-dAtA GmbH · Airpark Business Center · Airport Boulevard B210 · 77836 Rheinmünster · Germany
Phone: +49 7229 1847-0 · Fax: +49 7229 1847-222 · info
addi-data.com · www.addi-data.com
@
Advertisement
Related Manuals for Addi-Data MSX-E3511
Summary of Contents for Addi-Data MSX-E3511
- Page 1 QUICK INSTALLATION MSX-E3511 Ethernet analog output system 02.05 - 01/2016 Addi-dAtA GmbH · Airpark Business Center · Airport Boulevard B210 · 77836 Rheinmünster · Germany Phone: +49 7229 1847-0 · Fax: +49 7229 1847-222 · info addi-data.com · www.addi-data.com...

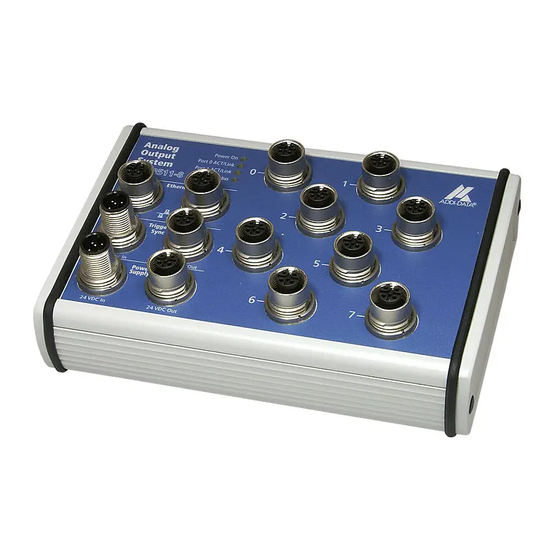

- Page 2 = Error while booting As soon as the “Status” LED lights green, you can install the software (see page 5). (B) Analog outputs (0 to 7) (E) LED display Analog Output System Ethernet ports Trigger/ Synchro Power supply CMX-20: Power supply cable www.addi-data.com...
-
Page 3: Pin Assignment
Female connector, Lead Lead Pin No. 5-pin, M12 5-pin, M12 colour pair Trigger input - Trigger input - blue Trigger input + Trigger input + white Synchro input + Synchro output + Synchro input - Synchro output - black www.addi-data.com... -
Page 4: Power Supply
24 V white blue black not connected not connected grey Analog outputs Cable (black) Female connector, Pin No. 5-pin, M12 Lead colour 24 V (supply) brown Analog output - white GND (supply) blue Analog output + black not connected grey www.addi-data.com... - Page 5 MSX-E system, you have to click on the green icon in the top right of the ConfigTools Explorer area. Below the “Product Information” area, there are buttons that enable you to perform various actions and to access the web interface of your MSX-E system. www.addi-data.com...
- Page 6 - Transducer Monitoring: Select the channels to be acquired and start the acquisition with monitoring. For each channel, each acquired value is immediately displayed in a diagram. NOTICE! Depending on the Ethernet system, a different number of buttons and accordingly, different types of actions are available. www.addi-data.com...
- Page 7 To open the web interface of your MSX-E system, proceed as follows: - Open a web browser (such as Mozilla Firefox, Internet Explorer, etc.) and enter the following address: http://IP address of the Ethernet system. A login window is displayed. - Enter “mxadmin” as the user name and password. www.addi-data.com...
- Page 8 Do you have any questions? Please find further information on our website: www.addi-data.com. Do not hesitate to call us or to send us an e-mail (see front page for contact data). www.addi-data.com...
