- Page 1 User manual 001B DME204 4.13.10...
- Page 2 Product informa on Product design and specifica ons are subject to change at any me and `Qeedji` reserves the right to modify them without no ce. This includes the hardware, the embedded so ware and this manual, which should be considered as a general guide to the product. The accessories supplied with the product may differ slightly from those described in this manual, depending on the developments of the various suppliers.
-
Page 3: Table Of Contents
Table of contents 1 - Descrip on and installa on Introduc on Ge ng started with the device Device dimensions 1.2.1 Labelling 1.2.2 Device start-up step 1.2.3 Testcard 1.2.4 LEDs behaviour Connectors pin-out 2 - Configura on Configura on Web interface Configura on >... -
Page 4: Introduc On
This device is intended to work with the power supply unit. This power supply unit must be connected to a mains socket conforming to standard NF C 15-100. If the AC power cable is damaged, it must be replaced. It is possible to order a power supply unit replacement by sending a request to the email address sales@qeedji.tech. -
Page 5: Ge Ng Started With The Device

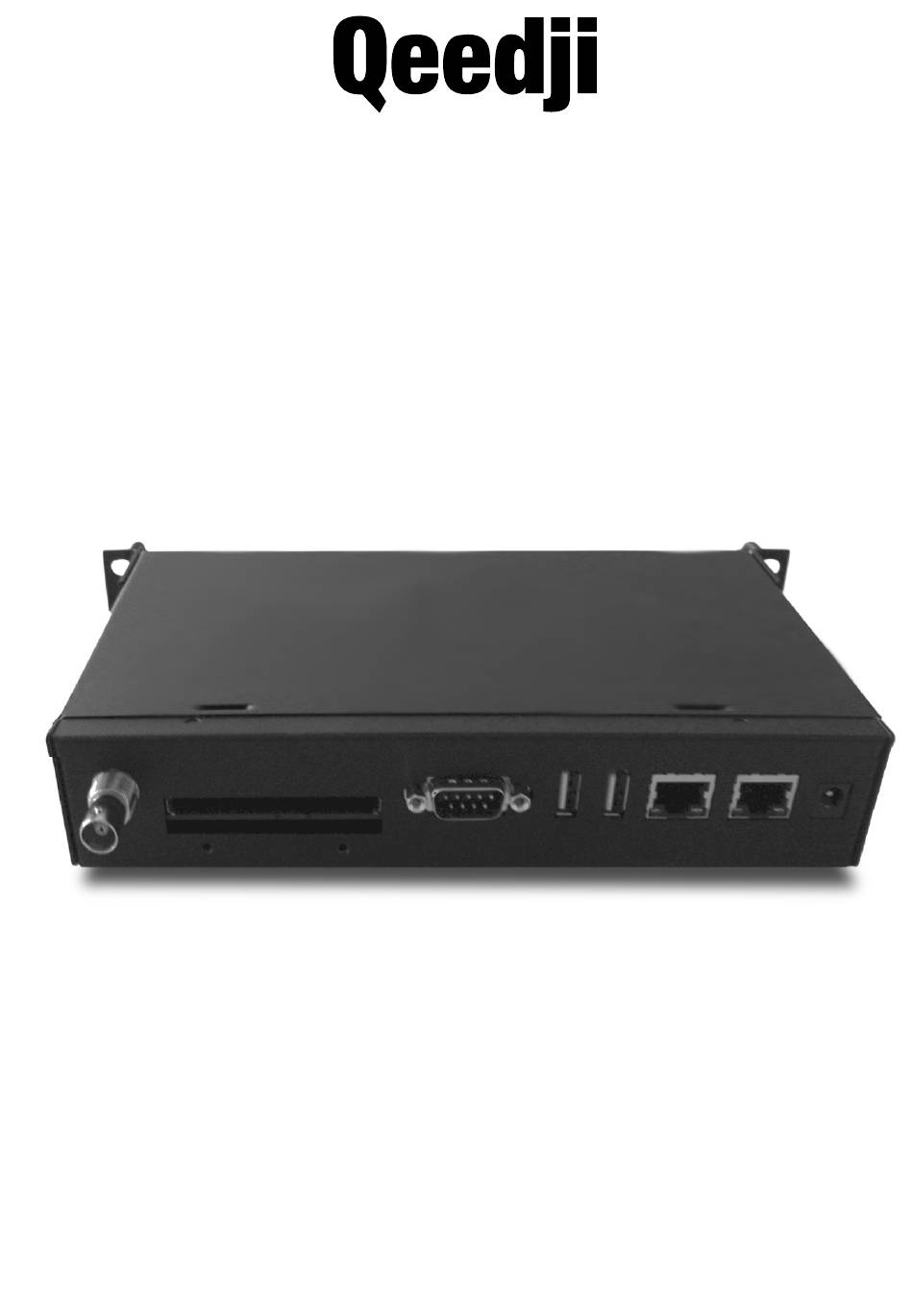

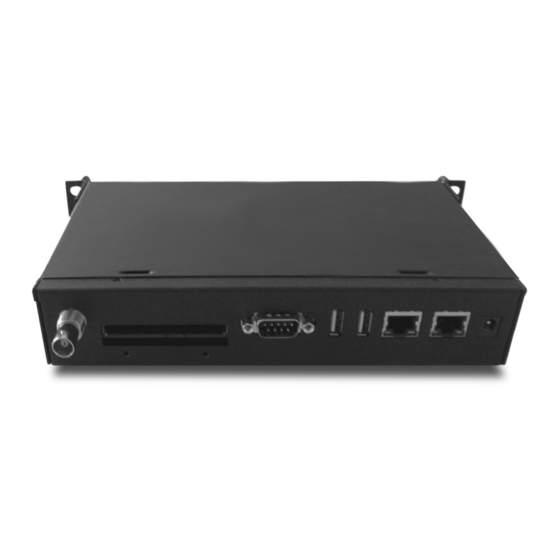

Ge ng started with the device Front face DME204 USB 2.0 connector, Infrared/GPIO connector, Status Green LED, Power supply Red LED. Rear face ASI connector, Express Card connector, RS232 connector, USB1 2.0 connector, USB2 2.0 connector, LAN1 RJ45 connector, LAN2 RJ45 connector,... -
Page 6: Device Dimensions
Device dimensions 1.2.1... -
Page 7: Labelling
The model of the device, the power supply characteris cs, the serial number (PSN) and the MAC address are wri en on labels which are stuck on the case. www.qeedji.tech 5A rue Pierre Joseph Colin 35000 RENNES FRANCE Model: DME204 Input: 12V DC 1.1A MAC: 00:14:2D:40:76:F0 PSN00120-00095 CD9 This is the label stuck also on the cardbox. -
Page 8: Device Start-Up Step
Device start-up step 1.2.3 Step 1 (T0=0s) Step 2 (T~24s) Step 3 (T~45s) Device start-up ini alisa on Device start-up finalisa on Nominal mode This phase dura on is depending on some variable values During this step, the device has to play the App content. (like NTP), some network access dura on or some data When firmware upgrade process occured, in case checking (check-disk) -
Page 9: Testcard
Testcard 1.2.4 At the factory, the device content set by default is the . The chart displays important informa on to assist in the device configura on: Test Card Disable the by using the WebUI. Test Card... -
Page 10: Leds Behaviour
LEDs behaviour LED POWER behaviour (power on device) State Informa on OK: Power supplied Off Error: Power supply issue ¹ LED LAN behaviour (power on device) State Informa on Off There is no network traffic on the Ethernet connector Blinking The blinking frequency is indica ng the data rate on Ethernet connector LED STATUS behaviour depending on device start-up steps •... - Page 11 Off Error. ¹ ¹ If the problem persists in despite of an appropriate power-supply, contact support@qeedji.tech. ² If the problem persists, it is recommended to find out the media not supported yet by the system and remove it from content.
-
Page 12: Connectors Pin-Out
Ethernet RJ-45. 10/100/1000 BaseT. It is recommended to use shielded cables. When two cables are connected, the DME204 device works also like a switch. The user can thanks to the device WebUI, inac vate the mul cast mode on the LAN1 connector or the LAN connector. - Page 13 The GPIO has a weak pull-up. It is not recommended to hotplug/unplug the GPIO1 connector, which could damage the device. Principle schema cs for several use cases Three wires input configura on for GPIO1: DME204 PERIPHERAL 3.3V 1 (Jack) 3 (Jack)
-
Page 14: Configura On
Configura on GPIO1 connector configura on can be done through system preferences edi on with device WebUI or with a configura on script. GPIO1 configura on part for this script is described here: // Set the direction: input or output if (aDirection == "out") Services.prefs.setBoolPref("innes.app-profile.gpio-input.epld_1.jack35_1.*.authorized", false);... -
Page 15: Configura On Web Interface
Configura on Web interface The DME204 device has a web-based configura on interface that can be accessed with a web browser. The supported browsers are: Google Chrome Mozilla Firefox MS-Edge MS-Edge (Chromium) It is accessible from the URL: http://<device_IP_addr>/ By default, the login creden als for the configura on Web interface and the Web server are:... -
Page 16: Configura On > Administrator
For security reasons, it may be useful to change the login creden als for the device's configura on Web interface. Please keep these login creden als in a safe place a erwards. It is recommended that you enter a unique value for each device. In case several DME204 devices are located in different buildings or geographical loca ons, we Hostname recommend that you enter hostname values with informa on about the building and the loca on (e.g. -
Page 17: Configura On > Lan
Configura on > LAN 2.1.2 In the pane, select the LAN menu to set up the network configura on of the interface of your device: Configuration If your device is not located in a secure network, select: security: None. If your device is located and properly declared in a secure network, select , then select an authen ca on method supported by your RADIUS server: 802.1X... -
Page 18: Configura On > Output
LAN2 ☛ For be er rendering of your media, especially scrolling text overlay, please set the display mode on the DME204 side to the same frequency (e.g., 60 Hz) as the display mode on the devices receiving the stream (e.g., 60 Hz). - Page 19 To alleviate this problem, use the overscan on your device to slightly reduce Qeedji the width and height of your container. While doing so, it is recommended to display the test pa ern of the device.
-
Page 20: Configura On > App
*tar.gz, *.zip, *.tar, *.tgz For more informa on, contact support@qeedji.tech. : Configure the device to receive a published App from any WebDAV client or compa ble so ware suite. Once the App is received, its content is immediately Push WebDAV played. - Page 21 (status.xml) ☛ To find out which so ware suites are able to publish on a remote server, an App suppor ng devices, contact support@qeedji.tech. Qeedji : allows you to configure the device so that it can regularly retrieve XPF content from a remote WebDAV server and transform it into an Pull WebDAV - XPF Compatibility App.
- Page 22 For further informa on, contact support@qeedji.tech. Qeedji PowerPoint publisher for media players (Push WebDAV). Once this PowerPoint Add-on is installed on your computer, it allows you to: easily discover the compa ble media players available on your local network, select one or more of them, publish a PowerPoint of communica on on each of your media players.
-
Page 23: Configura On > Servers
Configura on > Servers 2.1.5 In the pane, select the Servers menu to define the configura on of the servers peripheral to your device. Configuration status, so ware installa on and configura on servers. Status server : URL of the remote server's WebDAV frontend for the broadcast of the device status file. -
Page 24: Configura On > License
Configura on > License 2.1.6 In the pane, select the License menu to view your device license number. Configuration This license number is registered at the factory when the device is ordered. It is then sent to you by e-mail. If it has disappeared due to a handling error or a er forma ng your device, an error message indica ng that the license is invalid will appear on your monitor. -
Page 25: Configura On > Date And Me
Configura on > Date and me 2.1.7 From the pane, select the Date and Time menu to check the system date and me of your device. Configuration To update the date and me of your device, click on the value and then click the bu on. -
Page 26: Configura On > Regionality
Configura on > Regionality 2.1.8 From the pane, select the Regionality menu to choose the language in which informa on or error messages from the device should be displayed. Configuration The supported languages are: English, Spanish, German, French. -
Page 27: Configura On > Tasks
Configura on > Tasks 2.1.9 From the pane, select the Tasks menu to: Configuration program a device reboot task, program an energy management task for the appliance to reduce its energy consump on. Device restart tasks To create a restart task, click on the bu on and then the bu on. - Page 28 Func on Associated User Preferences Sound: inac vated = true innes.power-manager.level.min.<>.mute Volume: 0% innes.power-manager.level.min.<>.volume In this version, here is the state of the device when the power manager is in the Highly op mized state: Func on Associated User Preferences Sound: ac vated = false innes.power-manager.level.low.<>.mute...
-
Page 29: Configura On > Variables
Configura on > Variables 2.1.10 From the pane, select the Variables menu to set variable (or TAG) values for this device. Configuration The variable names are: - `field1', - `field2`, - `field3`, - `field4`, - `field5`. Variable values can only contain characters from the ASCII-7bits table. These variable values can then be used in Apps to perform specific processing for certain devices only. -
Page 30: Maintenance > Testcard
Maintenance > Testcard 2.1.11 From the pane, select the Testcard menu to enable or disable the test pa ern. The test pa ern is o en enabled during: Maintenance installing devices on the network, the development of the output resolu on and overscan. ☛... -
Page 31: Maintenance > Middleware
☛ Correc ve and evolu ve maintenance so ware versions are regularly made available in the support tab of the official website p://www.qeedji.tech. It is Qeedji therefore advisable to regularly update your device. From this website, download the latest version available for your device model. Unzip the archive and get the .zip... -
Page 32: Maintenance > Logs
☛ These logs can only be interpreted by so ware developers who are familiar with the so ware bricks that have been developed. Ac va ng the logs with a level other than should only be done a er a request from support. Qeedji Enabling traces with a level can significantly disrupt the opera on of the device. -
Page 33: Maintenance > Preferences
Before changing any value of a preference, please consult your support. ◬ Qeedji Double click on a preference to change its value. bu on resets a subset of preferences allowing the device to reprogram its factory preferences. Restore Factory Preferences Here are some user preferences that may be useful. -
Page 34: Maintenance > Tools
Correct Correct Format clicking the bu on will format the contents. It is then necessary to republish an App. Format ☛ If the problem persists a er forma ng the SD card, contact your support. Qeedji... -
Page 35: Informa On > Device
: label and version of the embedded middleware, Middleware : model of the device, Model Qeedji : name of the device on the network, Hostname : MAC address (value used in par cular to generate the license key of the device), : Universal Unique IDen fier, UUID : Product Serial Number. -
Page 36: Informa On > Network
Informa on > Network 2.1.17 In the pane, select the Network menu to view a summary of the device's network configura on. Information... -
Page 37: Configura On By Script
Configura on by script The dme204 can auto-configure when it can load a configura on script. The configura on-by-script can be either hosted on remote WebDAV server, or broadcasted by your DHCP server (code 66) or injected with a USB storage device. For further informa on, refer to the configura on-by-script... -
Page 38: Appendix
Appendix Device status (status.xml) The DME204 device is upda ng regularly its device status stored in its WebDAV directory: /.status http://<device-ip-addr>/.status/ This file can be periodically sent to a remote WebDAV server for monitoring purpose. Status.xml example: <device-status xmlns="ns.innes.device-status"> <device>... -
Page 39: Technical Specifica Ons
Technical specifica ons Model Constructor DME204 Qeedji Processors Intel Z350 1.6 GHz VPU/GPU Intel GMA500 Video decoder MPEG2, H264 1080p Encoder Video H264 Audio Mpeg layer II or AAC Resolu on 1280x720 (HD), 1024x768, 1024x576, 720x576 (PAL), 720x480 (NTSC), 352x288 (CIF), 176x144 (QCIF) Peripherals 3x USB 2.0 Host (Low/Full/High Speed) -
Page 40: Conformi Es
Conformi es In conformity with the following European direc ves: LVD 2014/35/EU EMC 2014/30/EU... -
Page 41: Contacts
For further informa on, please do not hesitate to contact us: by phone at +33 (0)2 23 20 01 62, by e-mail: Technical support: support@qeedji.tech, Sales department: sales@qeedji.tech. Refer to the Website for FAQ, applica on notes, and so ware downloads: Qeedji h p://www.qeedji.tech/...
