- Page 1 200S Patient Stander - Steel USER MANUAL...
-
Page 2: Table Of Contents
IMPORTANT: Do not use the ASPIRE 200S Stander without having first read this manual. TABLE OF CONTENTS Overview ____________________ 2. Safety Precautions ____________ 3. Parts Glossary ________________ 4. Assembly ____________________ 5. Preliminary Checks ____________ 6. Stander Operation _____________ Standing Guide _______________ 8. -
Page 3: Overview
1. OVERVIEW The ASPIRE 200S is an ergonomically designed mobile stander with a generous safe working load (SWL) of 200kg. This mobile stander is ideally suited as a familiar and reliable solution for institutional and aged care environments. The ASPIRE 200S stander allows patients to be transferred from sitting to standing and vice versa with comfort and safety. -
Page 4: Safety Precautions
2. SAFETY PRECAUTIONS INTENDED USE OF THE PRODUCT SAFETY CONSIDERATIONS The ASPIRE 200S Stander has been ALWAYS ensure that attendants have designed to stand and transfer human read this guide before operating this patients with the assistance of one carer patient stander. - Page 5 ALWAYS use the handset or control unit Aidacare Lifters and Standers do not buttons to raise and lower the boom of pull downwards during lowering. This the lifter. This will ensure correct and safe safety spline feature is designed to avoid functioning at all times.
-
Page 6: Parts Glossary

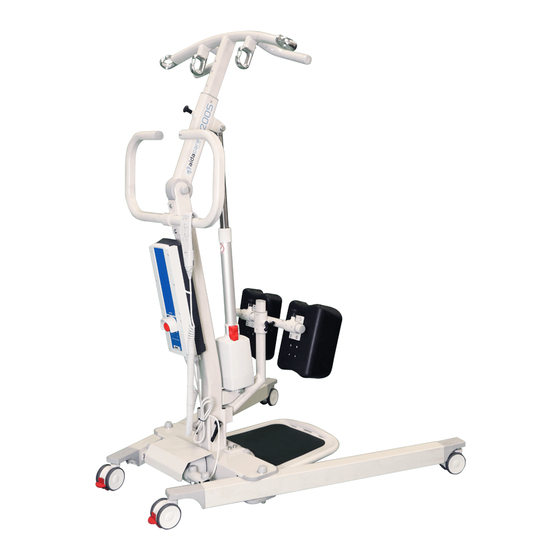

3. PARTS GLOSSARY Boom Sling Bar / Yoke Lift Actuator Mast Battery Cover for Leg Actuator Leg Spread Actuator Handset Push Handle Adjustable Knee Pads Rear Castors with Brake Foot Platform Front Castors Base Fastening Lever Emergency Lowering Function Emergency Stop Button www.aidacarelifters.com.au... -
Page 7: Assembly
4. ASSEMBLY 1. Unpack Remove all parts from carton. 2. Attach the mast Insert the mast into the base, ensuring the holes align and secure with base fastening lever bolt. 3. Mount handle Mount push handle onto mast in position shown and fasten screws with Allen key. - Page 8 4. Attach the knee pads Position the knee pads onto the mount point located toward the base of the lifter. Attach with four fixing bolts (supplied) 5. Connecting the actuator a) Connect grey actuator lead into port (1) located on base of the control unit.
-
Page 9: Preliminary Checks
5. PRELIMINARY CHECKS After charging the battery these checks should be completed prior to initially using the stander: 1. Check handset functionality is correct. 2. Check to see that all indicator lights are functioning. 3. Check that the emergency stop button causes the stander to stop. 4. - Page 10 12 months since last service or 8000 lift cycles. At this time the lifter needs to be serviced for safety and to maintain applicable warranty. A full load test should be completed at least every 12 months by an Aidacare service technician.
- Page 11 6. STANDER OPERATION CONT. Charging the battery The ASPIRE 200S Stander is supplied with a LINAK external wall mount charger and is compatible with standard Australian power outlets. The following steps should be completed to recharge the battery pack correctly: a) Remove the battery pack from the stander via the top mounted release lever.
- Page 12 Charging Dos & Don’ts: ALWAYS • Charge the battery whenever possible, to maximize battery life. Allowing batteries to fully discharge can reduce the useful life of a battery. • Always inspect all cables particularly the mains power cable on the charger for any damage;...
-
Page 13: Standing Guide
7. STANDING GUIDE It is important that carers are familiar with manual handling techniques along with any sling instructions prior to completing any patient lifts. All patients should have the correct sling and transfer techniques assessed by a qualified health professional. Explaining the lift process to the patient is important to ensure patient comfort and confidence and whenever possible two carers should conduct patient lifts for additional safety. -
Page 14: Sling Compatibility
8. SLING COMPATIBILITY The Deluxe Padded Standing Sling has been developed to work seamlessly with the Aidacare range of standing lifters. This stander may also be suitable for use with other brands of slings. To confirm if a sling is compatible with any of the ASPIRE range of patient lifting systems contact AIDACARE on 1300 133 120. -
Page 15: Care & Maintenance
• The actuator shaft should only be wiped with a cloth. DO NOT lubricate, contact Aidacare maintenance 1300 133 120. AS A MINIMUM A FULL SERVICE SHOULD BE COMPLETED EVERY 6 MONTHS AND THE LOAD TEST EVERY 12 MONTHS TO MAINTAIN WARRANTY. -
Page 16: Warranty & Service
AIDACARE and from OUR inspection shows to be defective. -
Page 17: Troubleshooting
11. TROUBLESHOOTING WARNING: TROUBLESHOOTING SHOULD ONLY BE CARRIED OUT BY AIDACARE AUTHORISED SERVICE TECHNICIANS WHO ARE TRAINED IN SERVICING THE ELECTRICAL AND MECHANICAL FEATURES OF THE PATIENT STANDER. The following is a guideline only to general troubleshooting. Before carrying out any troubleshooting: •... -
Page 18: Specifications
12. SPECIFICATIONS LSS390650 Product Code Safe Working Load (SWL) 200kg Base Length 1150mm External Base Width 655-1016mm 575-936mm Internal Base Width Electric Base Width Adjustment Base Height / Under Bed Clearance 110mm Minimum Height of Spreader Bar 850mm Maximum Height of Spreader Bar 1740mm 44.9kg Stander Weight... - Page 19 12. SPECIFICATIONS (CONT.)
-
Page 20: Service Log Book
13. SERVICE LOG BOOK YEAR 1 Date: _________________________ Service Type: _______________________________________________________ Condition Report: ___________________________________________________ ___________________________________________________________________ Inspected by: ____________________ Signature: _________________________ Action taken: _______________________________________________________ ___________________________________________________________________ ____________________________________ Date: _________________________ YEAR 2 Date: _________________________ Service Type: _______________________________________________________ Condition Report: ___________________________________________________ ___________________________________________________________________ Inspected by: ____________________ Signature: _________________________ Action taken: _______________________________________________________ ___________________________________________________________________ ____________________________________ Date: _________________________... - Page 21 ____________________________________ Date: _________________________ YEAR 5 Date: _________________________ Service Type: _______________________________________________________ Condition Report: ___________________________________________________ ___________________________________________________________________ Inspected by: ____________________ Signature: _________________________ Action taken: _______________________________________________________ ___________________________________________________________________ ____________________________________ Date: _________________________ SPARE PARTS SPARE PARTS LIST AVAILABLE UPON REQUEST FROM AIDACARE ON 1300 130 122 or www.aidacarelifters.com.au...
- Page 22 NOTES www.aidacarelifters.com.au...
- Page 23 An old, worn out or faulty sling could be a significant safety risk for your organisation Aidacare’s Sling Audit Program can assist you to ensure your sling inventory is in safe working order at all times. Periodic sling audits are now a mandatory accreditation requirement.
- Page 24 AIDACARE PTY LTD Building 3A, 1 Moorebank Avenue, Moorebank NSW 2170 1300 133 120 www.aidacare.com.au MADE IN CHINA ABUM05.23 101019...
