IMPORTANT: Do not use the ASPIRE A200S Stander without having first read this manual. TABLE OF CONTENTS Overview ____________________ 2. Safety Precautions ____________ 3. Parts Glossary ________________ 4. Assembly ____________________ 5. Preliminary Checks ____________ 6. Stander Operation _____________ Standing Guide _______________ 8.

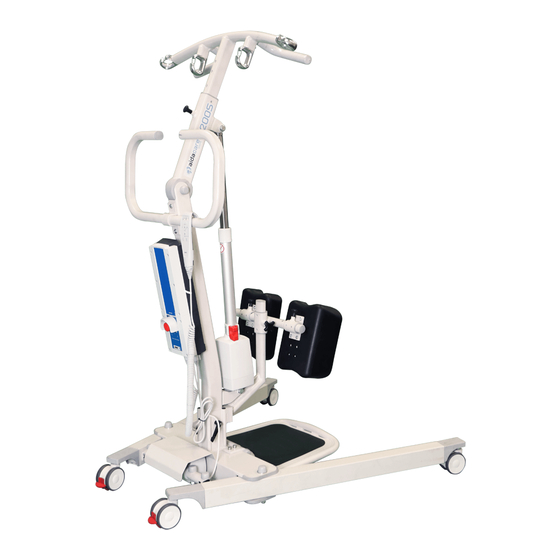

1. OVERVIEW The ASPIRE A200S is a compact and ergonomically designed mobile stander with a generous safe working load (SWL) of 200kg. This mobile stander offers a robust solution for in home care, institutional and aged care environments. The ASPIRE A200S stander allows patients to be transferred from sitting to standing with comfort and safety.
2. SAFETY PRECAUTIONS INTENDED USE OF THE PRODUCT SAFETY CONSIDERATIONS The ASPIRE A200S Stander has been ALWAYS ensure that attendants have designed to stand and transfer human read this guide before operating this patients with the assistance of one carer patient stander.
Page 5
ALWAYS use the handset or control unit Aidacare Lifters and Standers do not buttons to raise and lower the boom of pull downwards during lowering. This the lifter. This will ensure correct and safe safety spline feature is designed to avoid functioning at all times.
3. PARTS GLOSSARY Boom Sling Bar / Yoke Lift Actuator Mast Control Unit Cover for Leg Actuator Leg Spread Actuator Emergency Stop Handset Push Handle Adjustable Knee Pads Rear Castors with Brake Foot Platform Front Castors Base Fastening Lever Emergency Lowering www.aidacarelifters.com.au...
4. ASSEMBLY 1. Unpack Remove all parts from carton. 2. Attach the mast Insert the mast into the base, ensuring the holes align and secure with base fastening lever bolt. 3. Mount handle Mount push handle onto mast in position shown and fasten screws with Allen key.
Page 8
4. Attach the knee pads Position the knee pads onto the mount point located toward the base of the lifter. Attach with four fixing bolts (supplied) 5. Connecting the actuator a) Connect grey actuator lead into port (1) located on base of the control unit.
8000 lift cycles. At this time the lifter needs to be serviced for safety and to maintain applicable warranty. A full load test should be completed at least every 12 months by an Aidacare service technician.
Page 10
Emergency Lowering To activate emergency lowering lift up red tab located on top of actuator. This allows the patient to be fully lowered in the event of a fault in the lifter or discharged batteries. Kneepad Adjustment Using the kneepad height adjuster, set the kneepad at the desired height. Using the kneepad width adjuster, set the distance between two pads for desired width.
Page 11
6. STANDER OPERATION CONT. Charging the battery The ASPIRE A200S Stander is supplied with a LINAK external wall mount charger and is compatible with standard Australian power outlets. The following steps should be completed to recharge the battery pack correctly: a) Remove the battery pack from the stander via the top mounted release lever.
Page 12
Charging Dos & Don’ts: ALWAYS • Charge the battery whenever possible, to maximize battery life. Allowing batteries to fully discharge can reduce the useful life of a battery. • Always inspect all cables particularly the mains power cable on the charger for any damage;...
7. STANDING GUIDE It is important that carers are familiar with manual handling techniques along with any sling instructions prior to completing any patient lifts. All patient’s should have the correct sling and transfer techniques assessed by a qualified health professional. Explaining the lift process to the patient is important to ensure patient comfort and confidence and whenever possible two carers should conduct patient lifts for additional safety.
8. SLING COMPATIBILITY The Deluxe Padded Standing Sling has been developed to work seamlessly with the Aidacare range of standing lifters. This stander may also be suitable for use with other brands of slings. To confirm if a sling is compatible with any of the ASPIRE range of patient lifting systems contact AIDACARE on 1300 133 120.
• The actuator shaft should only be wiped with a cloth. DO NOT lubricate, contact Aidacare maintenance 1300 133 120. AS A MINIMUM A FULL SERVICE SHOULD BE COMPLETED EVERY 6 MONTHS AND THE LOAD TEST EVERY 12 MONTHS TO MAINTAIN WARRANTY.
11. TROUBLESHOOTING WARNING: TROUBLESHOOTING SHOULD ONLY BE CARRIED OUT BY AIDACARE AUTHORISED SERVICE TECHNICIANS WHO ARE TRAINED IN SERVICING THE ELECTRICAL AND MECHANICAL FEATURES OF THE PATIENT Stander. The following is a guideline only to general troubleshooting. Before carrying out any troubleshooting: •...
12. SPECIFICATIONS Product Code LSS390640 Safe Working Load (SWL) 200kg Base Length 985mm 590-915mm External Base Width 490-815mm Internal Base Width Base Width Adjustment Electric Base Height / Under Bed Clearance 110mm Minimum Height of Spreader Bar 890mm 1395mm Maximum Height of Spreader Bar 30.4kg Stander Weight Frame: 5 Years...
13. SERVICE LOG BOOK YEAR 1 Date: _________________________ Service Type: _______________________________________________________ Condition Report: ___________________________________________________ ___________________________________________________________________ Inspected by: ____________________ Signature: _________________________ Action taken: _______________________________________________________ ___________________________________________________________________ ____________________________________ Date: _________________________ YEAR 2 Date: _________________________ Service Type: _______________________________________________________ Condition Report: ___________________________________________________ ___________________________________________________________________ Inspected by: ____________________ Signature: _________________________ Action taken: _______________________________________________________ ___________________________________________________________________ ____________________________________ Date: _________________________...
Page 21
____________________________________ Date: _________________________ YEAR 5 Date: _________________________ Service Type: _______________________________________________________ Condition Report: ___________________________________________________ ___________________________________________________________________ Inspected by: ____________________ Signature: _________________________ Action taken: _______________________________________________________ ___________________________________________________________________ ____________________________________ Date: _________________________ SPARE PARTS SPARE PARTS LIST AVAILABLE UPON REQUEST FROM AIDACARE ON 1300 130 122 or www.aidacarelifters.com.au...
Page 23
An old, worn out or faulty sling could be a significant safety risk for your organisation Aidacare’s Sling Audit Program can assist you to ensure your sling inventory is in safe working order at all times. Periodic sling audits are now a mandatory accreditation requirement.
Page 24
AIDACARE PTY LTD Building 3A, 1 Moorebank Avenue, Moorebank NSW 2170 1300 133 120 www.aidacare.com.au MADE IN CHINA ABUM06.17 101019...
