BROBO GROUP (AUST) PTY. LTD.
8 Fowler Rd, Dandenong South
Victoria 3175, AUSTRALIA.
☏
+61 3 9794 8751
��
+61 3 9794 8792

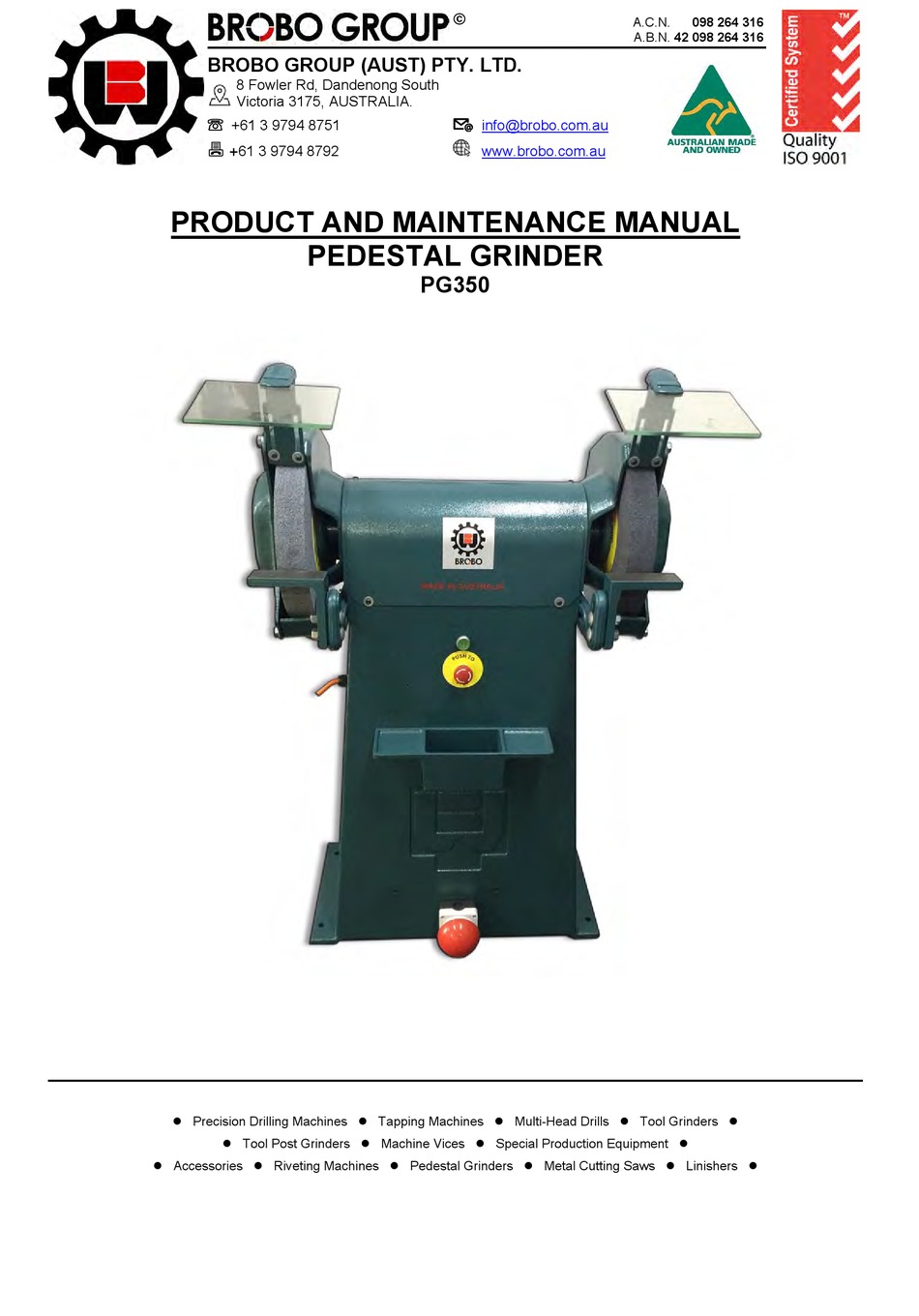

PRODUCT AND MAINTENANCE MANUAL
PEDESTAL GRINDER
Precision Drilling Machines Tapping Machines Multi-Head Drills Tool Grinders
Tool Post Grinders Machine Vices Special Production Equipment
Accessories Riveting Machines Pedestal Grinders Metal Cutting Saws Linishers
©
��
info@brobo.com.au
www.brobo.com.au
PG350
A.C.N.
098 264 316
A.B.N. 42 098 264 316
Advertisement
Table of Contents
Related Manuals for Brobo PG350
Summary of Contents for Brobo PG350
- Page 1 © A.C.N. 098 264 316 A.B.N. 42 098 264 316 BROBO GROUP (AUST) PTY. LTD. 8 Fowler Rd, Dandenong South Victoria 3175, AUSTRALIA. �� ☏ +61 3 9794 8751 info@brobo.com.au �� +61 3 9794 8792 www.brobo.com.au PRODUCT AND MAINTENANCE MANUAL...
- Page 2 Main Features Preparation for Operation Operation Recommendations CHAPTER 4: Drawings, Layouts, Assembly & Spare Parts Spare Parts PG350 Pedestal Grinder Main Dimensions PG350 Pedestal Grinder Assembly CHAPTER 5: Maintenance & Selection of Consumables Role of the Operator Maintenance Requirements General Maintenance of Functioning Components...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION MACHINE MOTOR RATING DESCRIPTION WHEEL SPEED SPECIFICATION (kW / HP / V / PH) PG350 2.4kW / 2.9HP Pedestal Grinder 1770/2070 RPM (3220020) Packaged Dimensions 114cm x 114cm x 130cm Weight PG350 255 kg Brobo Group brobo.com.au... -
Page 4: Chapter 1 - Installation Of The Machine
CHAPTER 1 - Installation of the Machine 1.1. Unpacking & Handling the Machine Upon receiving the PEDESTAL GRINDERS PG350, the machine should be standing upright & Brobo Group positioned centrally on top of a wooden pallet. Carefully remove the packaging surrounding the pedestal grinder. Position the grinder to the desired location, ensuring that a power outlet is available and within reach of the grinder power cord. -
Page 5: Minimum Requirements
However, for the machine to perform efficiently, ensure that the grinder unit operates within 10% limits of the recommended voltage of the motor. 1.3. Anchoring the grinder unit Figure 2. Anchoring the grinder unit (Top View) Brobo Group brobo.com.au... -
Page 6: Connection To Power Source
& connect it accordingly to the corresponding voltage supply. d) If the dual motor is requested, the motor is always connected to the higher voltage, unless otherwise specified prior to the order being placed. Brobo Group brobo.com.au... -
Page 7: Chapter 2 - Safety & Accident Prevention
CHAPTER 2 - Safety & Accident Prevention PEDESTAL GRINDERS PG350 has been designed & manufactured in accordance with Brobo Group Australian Standards. It is HIGHLY RECOMMENDED that the instructions & warnings contained in this chapter be carefully followed for correct usage of the machine. -
Page 8: Power Supply
Faulty, damaged or worn components must be replaced immediately. 2.2.3. Earthing Systems The installation of the earthing system must comply with the requirements stated in the: IEC Standards Part 195: Earthing & Protection Against Electric Shocks 1998. Brobo Group brobo.com.au... -
Page 9: Warranty
Check the machines when they arrive at your premises. If you determine any damage occurred during the transportation, apply & fulfill the related agreement conditions. Please contact for changing the Brobo Group damaged parts & for ordering the new parts. Only use original spare parts for maintenance & repairing. STORING The machine should be used in a closed area &... - Page 10 If the wheel jams during a grinding, activate the emergency stop function immediately Always turn off the machine before carrying out any repair work. Consult the Brobo Group Engineering Department in the country in which the machine was initially purchased.
-
Page 11: Machine Safety Devices
& safely. The following standards listed in section 2.4.1, which are applicable to the Brobo PEDESTAL GRINDERS PG350, are those specified by the EEC Committee that governs the safety of Group machinery, health & safety at work, personal protection & safeguarding of the work environment. In addition, the grinder also complies with the Australian Standards regarding the safeguarding &... -
Page 12: Chapter 3 - Main Functions & Operation Of The Machine
Rated at A24/46 Grit, the general purpose grinding wheels are provided on all Brobo pedestal grinding machines. It is advisable for all operators that grinding/buffing wheels are available for purchase for various applications from reputable hardware stores. Also note that tapered buff & wire adaptors are available for purchase from Brobo, sold separately. -
Page 13: Preparation For Operation
3.2. Preparation for Operation The following procedure is recommended for the correct grinding using Brobo Group PEDESTAL GRINDERS PG350 PROCEDURE 1) Clean the workpiece to ensure it is free of any grit, swarf or flammable substances. -
Page 14: Chapter 4 - Drawings, Layouts, Assembly & Spare Parts
CHAPTER 4 - Drawings, Layouts, Assembly & Spare Parts 4.1. Spare Parts Most common replace spare parts: ITEM PART NUMBER DESCRIPTION PG350 3212030 TOOREST ARM 3212040 TOOLREST 3212050 INNER FLANGE 3214440 OUTER FLANGE 3225170 BELT DRIVE 3211100 INNER GUARD RH 3211110 INNER GUARD LH 3215040 GRINDING WHEEL 350x50x31.75 A46 3215050 GRINDING WHEEL 350x50x31.75 A26 3215160 REDUCER BUSH 50.8mm ‐ 31.75mm... -
Page 15: Main Dimensions
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY PG350.01 TOLERANCES: MATERIAL: MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN Address : 8 Fowler Rd, Dandenong VIC 3175 LINEAR: PERMISSION OF BROBO GROUP PTY LT 255 KG ANGULAR: https://brobo.com.au/ WEIGHT: SHEET 1 OF 1... - Page 16 REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY 3220020 TOLERANCES: ASSEMBLY MATERIAL: MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN Address : 8 Fowler Rd, Dandenong VIC 3175 LINEAR: PERMISSION OF BROBO GROUP PTY LT ~255 KG ANGULAR: https://brobo.com.au/ WEIGHT: SHEET 1 OF 1...
- Page 17 REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY TOLERANCES: E1904.PG.C01 MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN MATERIAL: Address : 8 Fowler Rd, Dandenong VIC 3175 LINEAR: PERMISSION OF BROBO GROUP PTY LT ANGULAR: https://brobo.com.au/ WEIGHT: SHEET 1 OF 2...
- Page 18 REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY TOLERANCES: E1904.PG.C01 MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN MATERIAL: Address : 8 Fowler Rd, Dandenong VIC 3175 LINEAR: PERMISSION OF BROBO GROUP PTY LT ANGULAR: https://brobo.com.au/ WEIGHT: SHEET 2 OF 2...
- Page 20 REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY TOLERANCES: E2017.0331 MATERIAL: MEANS IN PART OR IN WHOLE WITHOUT THE WRITTEN Address : 8 Fowler Rd, Dandenong VIC 3175 LINEAR: PERMISSION OF BROBO GROUP PTY LT ANGULAR: https://brobo.com.au/ WEIGHT: SHEET 1 OF 1...
-
Page 21: Chapter 5 - Maintenance & Selection Of Consumables
CHAPTER 5 – Maintenance & Selection of Consumables 5.1. Role of the Operator The person operating & maintaining the PEDESTAL GRINDERS PG350 must familiarise themselves Brobo Group with these instructions for their own safety & that of the others, in addition to safeguarding the production of the machine. -
Page 22: General Maintenance Of Functioning Components
6) Check that the glass eye shield is in good condition & free of any damage. If a crack is present on the surface of the glass, immediately replace the eye shield by contacting the Brobo Engineering Department. Brobo Group brobo.com.au... -
Page 23: Chapter 6 - Troubleshoot
CHAPTER 6 - Troubleshoot Below lists of some of the most common problems associated with the PG350 Pedestal Grinder & Brobo Group the recommended troubleshooting procedures to undertake to rectify the situation. If the solutions provided do not resolve the problems, or the problem identified differs from those listed, immediately contact Brobo Group engineering department. -
Page 24: Machine Type
Substance excess coolant, oils, & another aggregate. During a power failure, turn the machine off. Hazardous Events Unexpected Start-Up If the problem persists, please contact Brobo Group engineering department. Ensure grinder wheel, counter plates & locking Additional Hazards Operator Error nuts are correctly secured.
