OWNER'S MANUAL

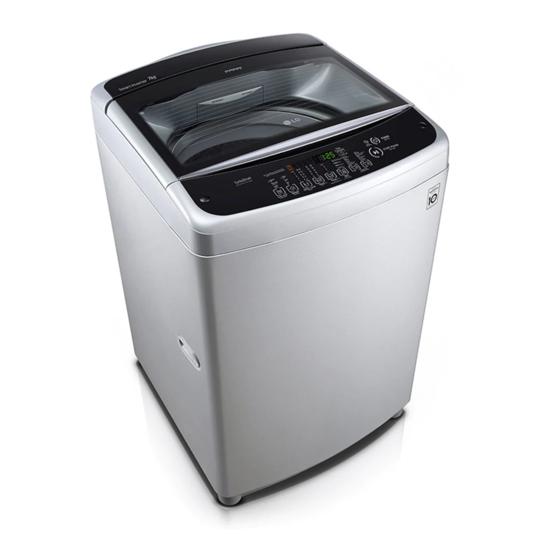

WASHING MACHINE
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
EN ENGLISH
T2175VS2M / T2107VS2W
MFL70761362
Rev.00_052620
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
www.lg.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LG T2175VS2M
Summary of Contents for LG T2175VS2M
- Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. EN ENGLISH T2175VS2M / T2107VS2W www.lg.com MFL70761362 Rev.00_052620 Copyright © 2020 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
Preparing Laundry ...................14 Adding Detergents, Softeners and Bleaches..........16 Control Panel ....................18 Programme.......................19 Extra Options and Functions ................20 SMART FUNCTIONS LG ThinQ Application ..................24 Smart Diagnosis ....................24 MAINTENANCE Cleaning after Every Wash ................25 Cleaning the Appliance Periodically ..............25 TROUBLESHOOTING Before Calling for Service................28... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk. - Page 4 • The inlet water pressure must be between 50 and 800 kPa. Maximum Capacity The maximum capacity in some cycles for dry clothes to be washed is: T2107VS2W T2175VS2M 7.0 kg 7.5 kg Installation • Never attempt to operate the appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
- Page 5 SAFETY INSTRUCTIONS • Do not plug the appliance into multiple outlet sockets or an extension power cable. • Do not modify the power plug provided with the appliance. If it does not fit the power outlet, have a proper outlet installed by a qualified electrician.
- Page 6 • In case of a water leak from the appliance, disconnect the power plug and contact the LG Electronics customer information centre. • Turn off water taps to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur.
- Page 7 • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
-
Page 8: Installation
INSTALLATION INSTALLATION Parts and Specifications NOTE • Appearance and specifications may change without notice to improve the quality of the appliance. Front View * This feature is only available on some models. Door Power Cord Tempered Glass Cold Water Inlet Detergent Dispenser Drawer Fabric Softener Dispenser Bleach Dispenser... - Page 9 *1 The included accessories vary depending on the model you purchased. Cold Water Inlet Hose Drain Hose Tie Strap Anti-Rat Cover Screw for Anti-Rat Cover Specifications Model T2175VS2M / T2107VS2W Power Supply 230 V~, 60 Hz Product Weight Approx. 33 kg Dimension(mm) 1130...
-
Page 10: Installation Place Requirements
Contact your local WARNING authorised LG repairer. • The power plug must be plugged into an • This appliance must only be used for domestic appropriate outlet socket that is installed and... -
Page 11: Connecting The Water Inlet Hoses
INSTALLATION Connecting the Water Inlet Remove the guide plate if the tap is too large to fit the adapter. Hoses Before connecting the water inlet hose to the water tap, check the hose fitting type and then choose the correct instruction. Note for Connection •... -
Page 12: Installing The Drain Hose
INSTALLATION Connecting the Hose to the To change the direction of the hose, pull out the elbow hose and change the direction. Appliance Repeat Step 1. Screw the water inlet hose to the water inlet valve on the back of the appliance. Positioning the Drain Hose •... - Page 13 INSTALLATION • If the appliance rocks when pushing the top Flat Type plate of the appliance diagonally, adjust the feet Insert the flat type of the anti-rat cover to the again. assembling hole from the front of the appliance. Adjusting and Levelling the Feet When the appliance is not perfectly level, turn the adjustable feet until the appliance no longer...
-
Page 14: Operation Operation Overview
OPERATION OPERATION Operation Overview End of cycle. • When the cycle is finished, a melody will sound. Immediately remove your clothing Using the Appliance from the appliance to reduce wrinkling. Before the first wash, select the Normal programme and add a half amount of detergent. NOTE Start the appliance without laundry. - Page 15 OPERATION Checking the Fabric Care Label cause irreparable damage to both your appliance and clothes. This will tell you about the fabric content of your clothes and how it should be washed. Symbols on the Care Labels Symbol Wash / Fabric type •...
-
Page 16: Adding Detergents, Softeners And Bleaches
OPERATION Adding Detergents, CAUTION Softeners and Bleaches • Using liquid detergent without diluting, or leaving laundry for a long time after pouring Detergent Dosage diluted liquid detergent into the drum might cause the clothes to be damaged, bleached, • Detergent should be selected according to fabric discoloured. - Page 17 OPERATION Adding Fabric Softeners • Option washing is not designed to be used with fabric softener dispenser. • Dilute fabric softener with water. Undiluted fabric softener may result in spots that look like oil stain. Adding Liquid Bleaches • Measure and add the recommended amount of fabric softener into the compartment marked •...
-
Page 18: Control Panel
OPERATION Control Panel Control Panel Features POWER Button • Press this button to turn on or off the appliance. • The appliance automatically turns off once a certain time has passed after the wash has completed. START/PAUSE Button • Press this button to start or pause a wash cycle. •... -
Page 19: Programme
OPERATION - The time shown is only an estimate. Several external factors (laundry size, room temperature, incoming water temperature, etc.) can affect the actual time. • : This icon turns on when the Child Lock function is selected to lock the controls. •... -
Page 20: Extra Options And Functions
OPERATION Eco Save CAUTION Use this programme to consume less water and • When putting a blanket into the drum, do not electricity to wash normal clothes. load it over the maximum line . The blanket • This is recommended programme designed to must also be submerged in the water. - Page 21 OPERATION Water Level NOTE This appliance detects the amount of laundry • Always keep the laundry amount to 2 kg or less automatically, then sets the water level. However, and make sure to redistribute the laundry manually increasing the water level may be evenly.
- Page 22 OPERATION Locking/Unlocking the Control Panel Use Child Lock function to disable the controls. This function can prevent children from changing programmes or operating this appliance. NOTE • Once this function is set, all buttons are locked except the POWER button. •...
- Page 23 OPERATION Manual Washing When you need a rinse and spin, spin only, rinse only or wash only cycle, these can be set manually. Rinse and Spin Spin only Rinse only Wash only Press the POWER button. Press the Rinse Press the Spin Press the Rinse Press the Wash button.
-
Page 24: Smart Functions
SMART FUNCTIONS SMART FUNCTIONS LG ThinQ Application • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided The LG ThinQ application allows you to in the LG ThinQ application. -
Page 25: Maintenance
MAINTENANCE MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. • Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They may damage the finish. - Page 26 MAINTENANCE Open the dispenser drawer and add anti- Turn off the power and the water tap and then limescale to the main wash compartment. unscrew the water inlet hose. WARNING • Do not add any detergent to the detergent dispenser drawer for this function. Doing so may generate excessive suds and leak out from the appliance and cause damage to property.
- Page 27 MAINTENANCE Push down on the release tabs on both sides of the filter cover and pull forward. Open the lid and remove the lint. Wash the filter. Close the lid and then insert the lower part of the filter into the wash drum. Press the top of the filter until you hear a click sound.
-
Page 28: Troubleshooting
You can remedy most of the problems by yourself, consequently save time and money, since you do not need to call LG Electronics service centre. The following table should assist you by troubleshooting. - Page 29 TROUBLESHOOTING Symptoms Possible Cause & Solution Foreign objects, such as coins, pins, clips, etc.,are caught between the pulsator and the inner drum. FOREIGN OBJECTS ERROR • Turn off the appliance and then press the POWER button. Press the Spin button without selecting a cycle to drain and spin the laundry. When the spin is complete, remove the clothes and then find and remove any objects caught in the pulsator gap.
- Page 30 TROUBLESHOOTING Symptoms Possible Cause & Solution Sensor for clothes-sensing is defective. CLOTHES SENSING • Manually redistribute the laundry if laundry have become tangled. ERROR Motor’s revolution is too low. Contact-point of Connector is defective. • Unplug the appliance and wait 60 seconds. Reconnect power and try again.
- Page 31 TROUBLESHOOTING Operation Symptoms Possible Cause & Solution Appliance will not Control panel has powered off due to inactivity. operate. • This is normal. Press the POWER button to turn on the appliance. Appliance is unplugged. • Make sure that the cord is plugged securely into a working outlet. Water supply is turned off.
- Page 32 TROUBLESHOOTING Symptoms Possible Cause & Solution Water leaking Water inlet hose connection is loose at tap or appliance. • Check hoses for leaks, cracks and splits. • Tighten hose connections. House drain pipes are clogged. • The appliance pumps out water very rapidly. Check for water backing up out of the drain pipe during drain.
- Page 33 TROUBLESHOOTING Performance Symptoms Possible Cause & Solution Poor stain removal Proper options are not selected. • Heavier soils and tougher stains may require extra cleaning power. Select the Soak option to boost the cleaning power of the selected cycle. Previously set stains. •...
- Page 34 Memo...
- Page 35 Memo...
Need help?
Do you have a question about the T2175VS2M and is the answer not in the manual?
Questions and answers
The washing machine spin is not functioning
The spin function on the LG washing machine T2175VS2M may not be working due to the following reasons:
1. Unbalanced Load (UE Error) – The machine's automatic rebalancing attempt failed. Possible causes:
- The laundry load is too small. Solution: Add more clothes to balance the load.
- Heavy and light items are mixed. Solution: Wash items of similar weight together.
- The laundry is tangled. Solution: Manually redistribute the load.
2. Drainage Issues (OE Error) – Water is not draining properly, preventing the spin cycle from starting. Possible causes:
- The drain hose is kinked, pinched, or clogged. Solution: Clean and straighten the drain hose.
- The drain discharge is more than 1.2 meters above the bottom of the machine. Solution: Adjust the hose or reconfigure the drain pipe.
If these steps do not resolve the issue, further troubleshooting or service may be needed.
