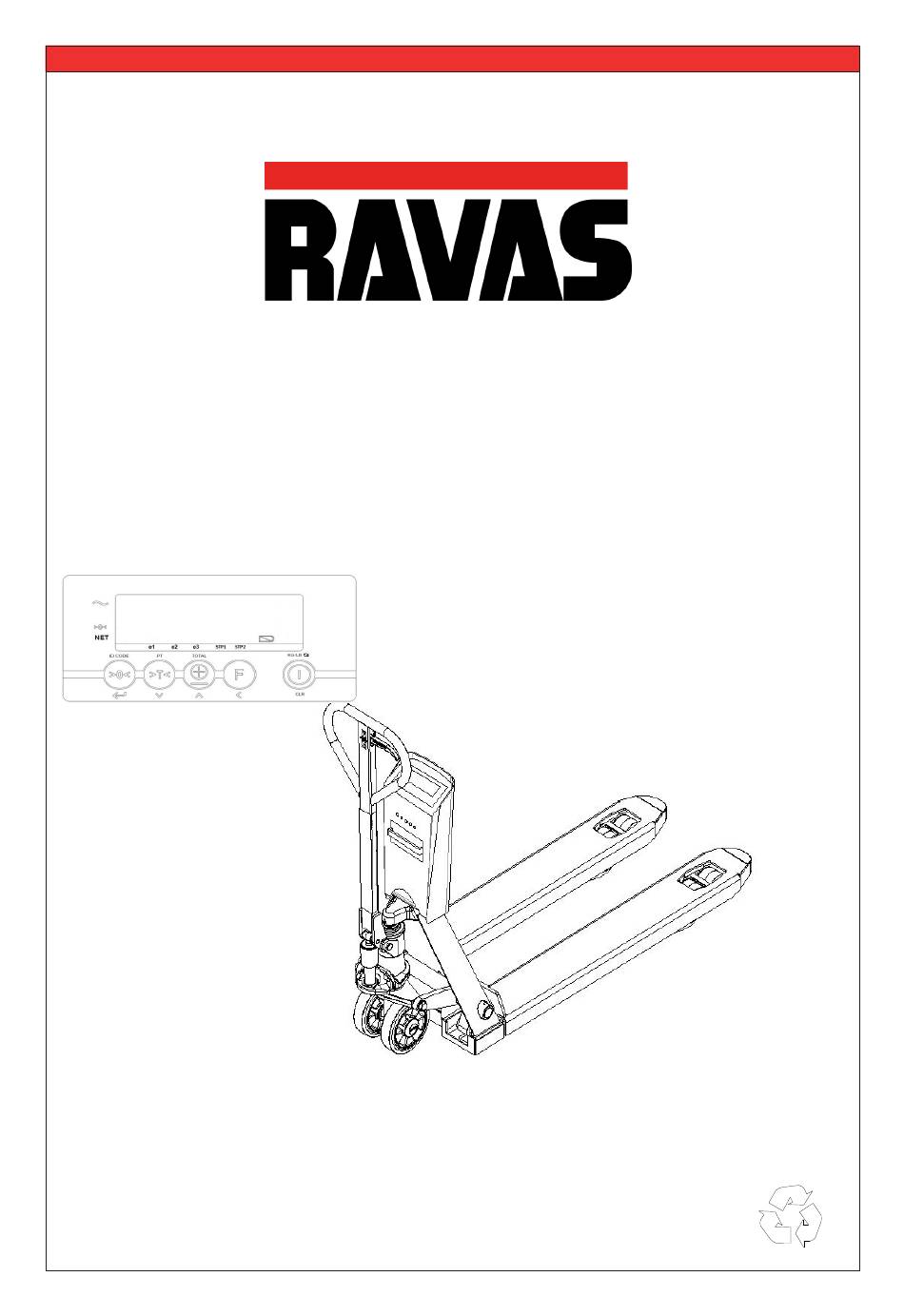

USER MANUAL
RAVAS-3200
We would like to inform you about the fact that this RAVAS product is 100% recyclable on the basis that the
parts are processed and disposed of in the right manner.
More information can be found on our website:
www.ravas.com
Rev. 20191216
Printing/Typographical errors and model changes reserved.
1
USER MANUAL – RAVAS-3200

Advertisement

Table of Contents
loading

Related Manuals for Ravas 3200

Summary of Contents for Ravas 3200

  • Page 1 USER MANUAL RAVAS-3200 We would like to inform you about the fact that this RAVAS product is 100% recyclable on the basis that the parts are processed and disposed of in the right manner. More information can be found on our website: www.ravas.com...
  • Page 2 This manual has been com- piled with all due care, but the manufacturer cannot be held responsible for any consequences of errors. All rights are reserved and no part of this manual may be reproduced in any way. USER MANUAL – RAVAS-3200...

  • Page 3: Table Of Contents

    2. Warning & Safety measures 2.1 Lithium-ion Battery (option) 3. System setup 3.1 Placing the battery pack in the pallet truck 3.2 Switching on/off the RAVAS-3200 4. Changing battery 4.1 Low battery indication RAVAS-3200 4.2 Charging the battery pack of the pallet truck 5.

  • Page 4: Introduction

    1. Introduction This manual describes the use of the RAVAS-3200. Read this manual carefully. The installer must be informed of the contents of this manual. Always do things in the correct order. This manual should be kept on a safe and dry place. In case of damage or loss the user may request a new copy of the manual from RAVAS.

  • Page 5: Lithium-Ion Battery (Option)

    Note: Before using the weighing system, be sure that the battery is fully charged. • After the battery has become completely empty. An empty battery will break (loss of capacity) when not directly fully charged. USER MANUAL – RAVAS-3200...
  • Page 6 Disposal information for countries outside the European Union This symbol is only valid within the European Union. Follow local regulations when disposing used batteries. If you are not sure, consult the place of purchase or a RAVAS dealer. USER MANUAL – RAVAS-3200...

  • Page 7: System Setup

    30 hours for a Pb-battery and about 75 hours for a Li-ion battery (for a system without a printer). Two battery pack versions: Pb-battery (12V) Li-ion battery (14,8V) USER MANUAL – RAVAS-3200...

  • Page 8: Switching On/Off The Ravas-3200

    4.1 Low battery indication RAVAS-3200 Exchangeable battery pack supplies power to the RAVAS-3200. When the voltage level of the battery pack is running low, the low battery indicator will light up. The RAVAS-3200 will switch off automatically after 2 minutes. USER MANUAL – RAVAS-3200...

  • Page 9: Charging The Battery Pack Of The Pallet Truck

    LED on the adapter will change to green once the battery is fully charged. First position the battery pack inside the charger module (1), then plug the adaptor into the mains voltage (2). Pb-battery (12V) Li-ion battery (14,8V) USER MANUAL – RAVAS-3200...

  • Page 10: Use

    5. Use 5.1 Use (accurate weighing) USER MANUAL – RAVAS-3200...
  • Page 11 Before each weighing it is necessary to check whether the system is unloaded and free. If the indicator does not determine the zero point automatically, it must be done manually using the >0< key. USER MANUAL – RAVAS-3200...

  • Page 12: Auto Shut-Off Indicator

    Press any key during countdown to cancel auto-shut-off and go back to the weighing mode. ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Indicator sleep ID CODE TOTAL KG/LB Press any key to wake up the indicator. USER MANUAL – RAVAS-3200...

  • Page 13: Indicator Functions

    3 (option multi range) stp1 setpoint 1 active (option function key activated) setpoint 2 active (option function key activated) stp2 displayed weight is in kilograms displayed weight is in pounds low bat indicator USER MANUAL – RAVAS-3200...
  • Page 14 Operation of a key is not accepted unless the weighing system is stable (and the “load stable” pointer lights up). This means that the indicator only executes commands with a stable load. For a detailed description of the function CODE ENTRY check our operational manual Indicator 3200 at www.MyRAVAS.com.

  • Page 15: Error Messages

    (only legal for trade version) automatic SCALL audit trail number out of range Contact RAVAS Service department ESoFt Wrong combination of firmwares Contact your dealer EConF P96 not set Contact your dealer USER MANUAL – RAVAS-3200...

  • Page 16: Net / Tare / Gross Weight

    EXPLANATION: Net(1) + Tare(2) = Gross(3) 5.5.1 Net weighing: automatic tare ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB The indicator is set to zero. The “NET” pointer shows that the tare weight is activated. USER MANUAL – RAVAS-3200...
  • Page 17 TOTAL KG/LB The gross weight is displayed again. NOTE: For OIML approved RAVAS 3200 the tare will be erased automatically when the weight returns to gross zero! For the next weighing the tare must be activated again. USER MANUAL – RAVAS-3200...

  • Page 18: Net Weighing: Manual Tare (Pt)

    ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Press the up Press ENTER or down key to activate the until the tare weight. desired value is reached. USER MANUAL – RAVAS-3200...
  • Page 19 KG/LB The “NET”pointer lights up. ID CODE TOTAL KG/LB NOTE For OIML approved RAVAS 3200 the tare will be erased automatically when the weight returns to gross zero! For the next weighing ID CODE TOTAL KG/LB the tare must be activated again.

  • Page 20: Adding & Reset

    KG/LB ID CODE TOTAL KG/LB Press the TOTAL key to add the load weight to the total weight. If a printer is installed, a printout will be made. The gross, net and tare weights are printed. USER MANUAL – RAVAS-3200...
  • Page 21 NOTE: In case the total is not manually used or reset, the system will do this automatically as soon as the total number has reached 99 or as soon as the total weight has reached a value of 99999 kg. USER MANUAL – RAVAS-3200...

  • Page 22: Entering Id-Code

    To accept the new value press Enter. The code is activated, the indicator returned to the weighing mode. Note: If the code is ‘00000’ it will be ignored and will not be printed on the print out. USER MANUAL – RAVAS-3200...

  • Page 23: Print Out (Option)

    Tot. T 34.5 Tot. N 1200.0 Tot. Nr. 10/07/03 17:45 *1 Note: in case of a legal for trade unit, the alibi number will be printed here. 5.9 KG- LB switch ID CODE TOTAL KG/LB KG/LB USER MANUAL – RAVAS-3200...

  • Page 24: Changing The Time And Date (On The Printout)

    Select “TIME” in the user menu to change the time. ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Press the up / down key until the desired value The display will show is reached. “ho_00” or the previous hour time setting USER MANUAL – RAVAS-3200...
  • Page 25 Repeat the procedure to accept or change: - the minute setting “m_00” 3 sec. ID CODE TOTAL KG/LB 3 sec. Back to weigh mode. To accept the new setting press enter for 3 sec. USER MANUAL – RAVAS-3200...

  • Page 26: User Settings

    TOTAL key for 10 sec. EXIT & SAVE 3 sec. Back to weigh mode. These user settings can be changed if desired. See next pages. EXIT WITHOUT SAVING Back to weigh mode. USER MANUAL – RAVAS-3200...

  • Page 27: User Menu Explanation List

    5.11.1 User Menu explanation list USER MANUAL – RAVAS-3200...

  • Page 28: Supervisor Menu

    5.12 Supervisor menu (password protected 1 The Supervisor menu is password protected since version 1.01. Earlier versions of the software are not password protected. For the password please contact RAVAS Service department. ID CODE TOTAL KG/LB Press to change to 10 sec.

  • Page 29: Supervisor Menu Explanation List

    5.12.1 Supervisor menu explanation list USER MANUAL – RAVAS-3200...

  • Page 30: Overview Power Save Settings (Auto Shut-Off)

    5.12.2 Overview power save settings (auto shut-off) Overview of Auto shut-off and Sleep settings. The settings mentioned below are the standard settings and advised by RAVAS for optimal use. These settings can be changed in the user menu, as described above.

  • Page 31: Alibi Memory

    5.13 Alibi Memory The 3200 indicator has the possibility of an alibi memory. The alibi memory will only be used when parameter 13 is set for OIML or NTEP. If parameter 13 is set for ‘NONE’ the alibi memory will remain unused.
  • Page 32 Press the up /down key until the display shows the user setting ‘ALibi’. Press enter to confirm. Enter the requested alibi number by using the up and down keys and the shift key. In this example we enter alibi number 2’. USER MANUAL – RAVAS-3200...
  • Page 33 Press enter to Press enter to continue to the hour. continue to the minute. For 0,5 sec the display shows the text ‘Gross’. Next the display shows the gross weight. Press enter to continue. Press enter to continue. USER MANUAL – RAVAS-3200...

  • Page 34: Relay Function - Optional

    ‘Alibi’ the normal weighing mode. in the user menu. 5.14 Relay function - optional The 3200 indicator has the possibility to setup limit values for relay settings. The different options for relay settings are: • overload on gross weight •...

  • Page 35: Maintenance

    • Always follow the operating, maintenance and repair instructions of the pallet truck and ask the supplier when in doubt; • RAVAS is not responsible for errors that occur due to incorrect weightings or inaccurate scales. USER MANUAL – RAVAS-3200...

  • Page 36: Ravas Weightsapp

    IDs. In addition the app makes it possible to download a log file from the RAVAS indicator and send it for technical analysis as a CSV file in the event of malfunctioning.
