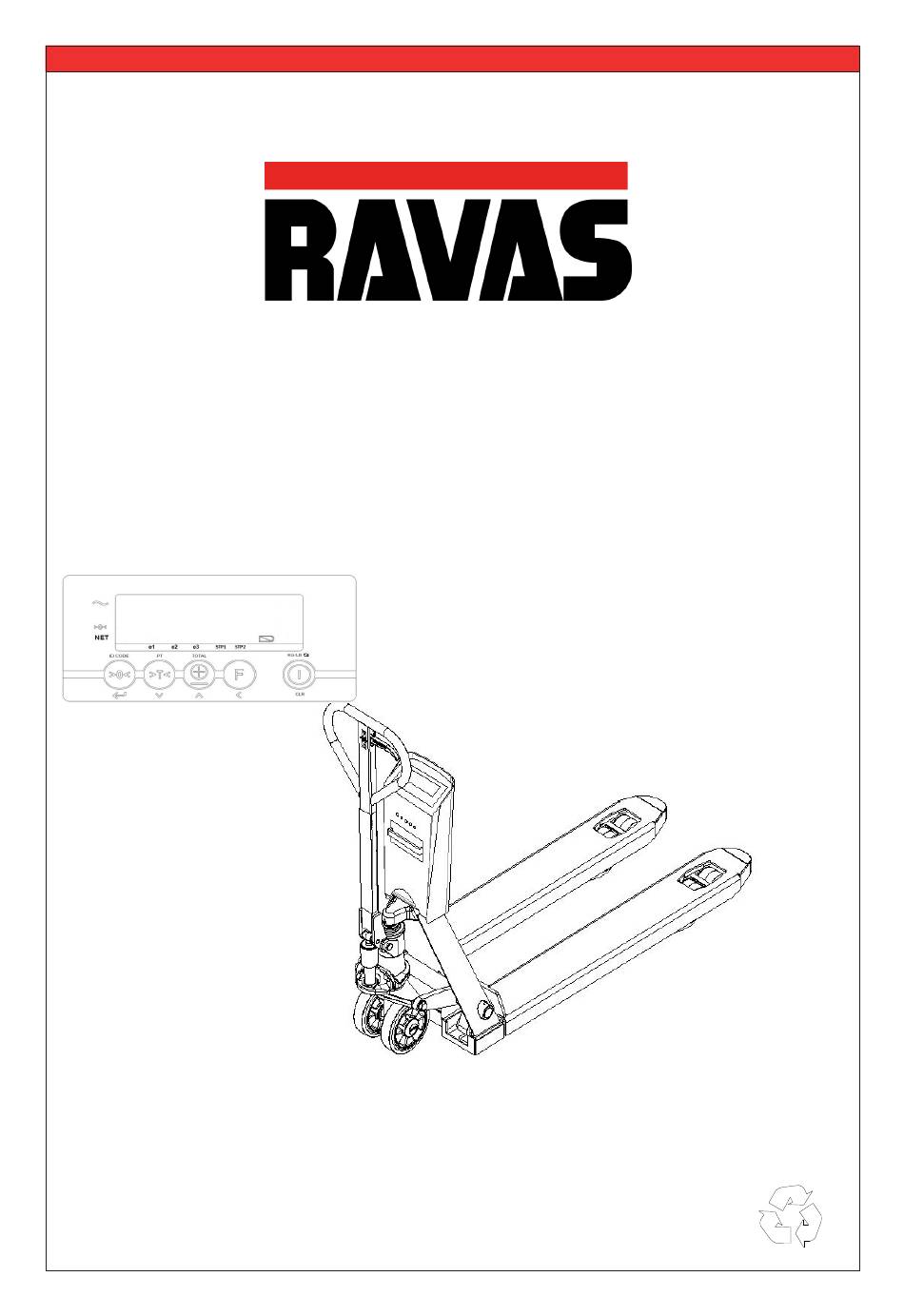

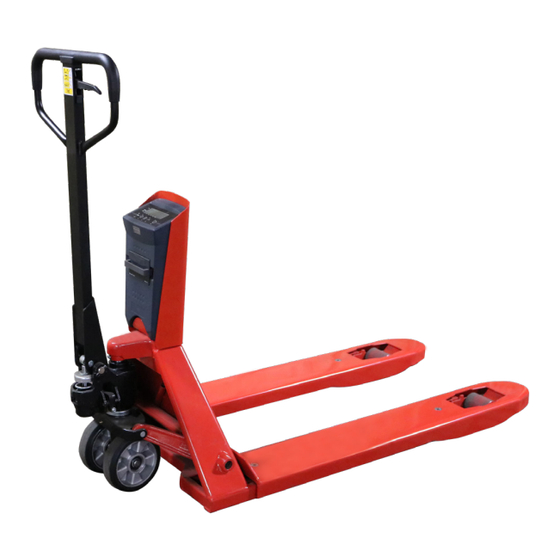

USER MANUAL
RAVAS-320
We would like to inform you about the fact that this RAVAS product is 100% recyclable on the basis that the
parts are processed and disposed of in the right manner.
More information can be found on our website:
www.ravas.com
Rev. 20190424
Printing/Typographical errors and model changes reserved.
USER MANUAL – RAVAS-320
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 320 and is the answer not in the manual?

Questions and answers

Related Manuals for Ravas 320

Summary of Contents for Ravas 320

  • Page 1 USER MANUAL RAVAS-320 We would like to inform you about the fact that this RAVAS product is 100% recyclable on the basis that the parts are processed and disposed of in the right manner. More information can be found on our website: www.ravas.com...
  • Page 2 This manual has been com- piled with all due care, but the manufacturer cannot be held responsible for any consequences of errors. All rights are reserved and no part of this manual may be reproduced in any way. USER MANUAL – RAVAS-320...

  • Page 3: Table Of Contents

    2. Warning & Safety measures 2.1 Lithium-ion Battery (option) 3. System setup 3.1 Placing the battery pack in the pallet truck 3.2 Switching on/off the RAVAS-320 4. Changing battery 4.1 Low battery indication RAVAS-320 4.2 Charging the battery pack of the pallet truck 5.

  • Page 4: Introduction

    1. Introduction This manual describes the use of the RAVAS-320. Read this manual carefully. The installer must be informed of the contents of this manual. Always do things in the correct order. This manual should be kept on a safe and dry place. In case of damage or loss the user may request a new copy of the manual from RAVAS.

  • Page 5: Lithium-Ion Battery (Option)

    The battery is not fully charged at the time of delivery! Before using the weighing system, be sure that the battery is fully charged. • After the battery has become completely empty. An empty battery will get broken (loss of capacity) when not directly fully charged. USER MANUAL – RAVAS-320...
  • Page 6 Disposal information for countries outside the European Union This symbol is only valid within the European Union. Follow local regulations when disposing used batteries. If you are not sure, consult the place of purchase or a RAVAS dealer. USER MANUAL – RAVAS-320...

  • Page 7: System Setup

    The power supply to the system takes place through an exchangeable battery pack. With a completely charged battery pack the total weighing time is about 75 hours for a Li-ion battery (for a system without a printer). Li-ion battery (14,8V) USER MANUAL – RAVAS-320...

  • Page 8: Switching On/Off The Ravas-320

    4.1 Low battery indication RAVAS-320 Exchangeable battery pack supply power to the RAVAS-320. When the voltage level of the battery pack is running low, the low battery indicator will light up. The RAVAS-320 will switch off automatically after 2 minutes. USER MANUAL – RAVAS-320...

  • Page 9: Charging The Battery Pack Of The Pallet Truck

    LED on the adapter will change to green once the battery is fully charged. First position the battery pack inside the charger module (1), then plug the adaptor into the mains voltage (2). Li-ion battery (14,8V) USER MANUAL – RAVAS-320...

  • Page 10: Use

    5. Use 5.1 Use (accurate weighing) USER MANUAL – RAVAS-320...
  • Page 11 Before each weighing it is necessary to check whether the system is unloaded and free. If the indicator does not determine the zero point automatically, it must be done manually using the >0< key. USER MANUAL – RAVAS-320...

  • Page 12: Auto Shut-Off Indicator

    Press any key during countdown to cancel auto-shut-off and go back to the weighing mode. ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Indicator sleep ID CODE TOTAL KG/LB Press any key to wake up the indicator. USER MANUAL – RAVAS-320...

  • Page 13: Indicator Functions

    3 (option multi range) stp1 setpoint 1 active (option function key activated) setpoint 2 active (option function key activated) stp2 displayed weight is in kilograms displayed weight is in pounds low bat indicator USER MANUAL – RAVAS-320...
  • Page 14 Operation of a key is not accepted unless the weighing system is stable (and the “load stable” pointer lights up). This means that the indicator only executes commands with a stable load. For a detailed description of the function CODE ENTRY check our operational manual Indicator 320 at www.MyRAVAS.com.

  • Page 15: Error Messages

    Battery of indicator is empty Charge the battery pack OimL action not allowed (only legal for trade version) automatic ntEP action not allowed (only legal for trade version) automatic SCALL audit trail number out of range Contact RAVAS Service department USER MANUAL – RAVAS-320...

  • Page 16: Net / Tare / Gross Weight

    EXPLANATION: Net(1) + Tare(2) = Gross(3) 5.5.1 Net weighing: automatic tare ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB The indicator is set to zero. The “NET” pointer shows that the tare weight is activated. USER MANUAL – RAVAS-320...
  • Page 17 ID CODE TOTAL KG/LB The gross weight is displayed again. NOTE: for NTEP approved RAVAS 320 the tare will be erased automatically when the weight returns to gross zero! For the next weighing the tare must be activated again. USER MANUAL – RAVAS-320...

  • Page 18: Net Weighing: Manual Tare (Pt)

    ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Press the up Press ENTER or down key to activate the until the tare weight. desired value is reached. USER MANUAL – RAVAS-320...
  • Page 19 KG/LB The “NET”pointer lights up. ID CODE TOTAL KG/LB NOTE For NTEP approved RAVAS 320 the tare will be erased automatically when the weight returns to gross zero! For the next weighing ID CODE TOTAL KG/LB the tare must be activated again.

  • Page 20: Adding & Reset

    KG/LB ID CODE TOTAL KG/LB Press the TOTAL key to add the load weight to the total weight. If a printer is installed, a printout will be made. The gross, net and tare weights are printed. USER MANUAL – RAVAS-320...
  • Page 21 ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB 3 sec. The subtotal can be checked by pressing the TOTAL key for 3 sec. 3 sec. TOTAL = RESET TOTAL & PRINT KG/LB = RESET TOTAL USER MANUAL – RAVAS-320...

  • Page 22: Entering Id-Code

    To accept the new value press Enter. The code is activated, the indicator returned to the weighing mode. Note: If the code is ‘00000’ it will be ignored and will not be printed on the print out. USER MANUAL – RAVAS-320...

  • Page 23: Print Out (Option)

    Tot. T 34.5 Tot. N 1200.0 Tot. Nr. 10/07/03 17:45 *1 Note: in case of a legal for trade unit, the alibi number will be printed here. 5.9 KG- LB switch ID CODE TOTAL KG/LB KG/LB USER MANUAL – RAVAS-320...

  • Page 24: Changing The Time And Date (On The Printout)

    Select “TIME” in the user menu to change the time. ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Press the up / down key until the desired value The display will show is reached. “ho_00” or the previous hour time setting USER MANUAL – RAVAS-320...
  • Page 25 Repeat the procedure to accept or change: - the minute setting “m_00” 3 sec. ID CODE TOTAL KG/LB 3 sec. Back to weigh mode. To accept the new setting press enter for 3 sec. USER MANUAL – RAVAS-320...

  • Page 26: User Settings

    TOTAL key for 10 sec. EXIT & SAVE 3 sec. Back to weigh mode. These user settings can be changed if desired. See next pages. EXIT WITHOUT SAVING Back to weigh mode. USER MANUAL – RAVAS-320...

  • Page 27: User Menu Explanation List

    5.11.1 User Menu explanation list USER MANUAL – RAVAS-320...

  • Page 28: Supervisor Menu

    TOTAL key for 10 sec. ID CODE TOTAL KG/LB Press enter to Select. Select to change the setting. ID CODE TOTAL KG/LB Press enter to Select. Select to change the setting. USER MANUAL – RAVAS-320...

  • Page 29: Supervisor Menu Explanation List

    5.12.1 Supervisor menu explanation list USER MANUAL – RAVAS-320...

  • Page 30: Maintenance

    • Always follow the operating, maintenance and repair instructions of the pallet truck and ask the supplier when in doubt; • RAVAS is not responsible for errors that occur due to incorrect weightings or inaccurate scales. USER MANUAL – RAVAS-320...

  • Page 31: Ravas Weightsapp

    IDs. In addition the app makes it possible to download a log file from the RAVAS indicator and send it for technical analysis as a CSV file in the event of malfunctioning.
