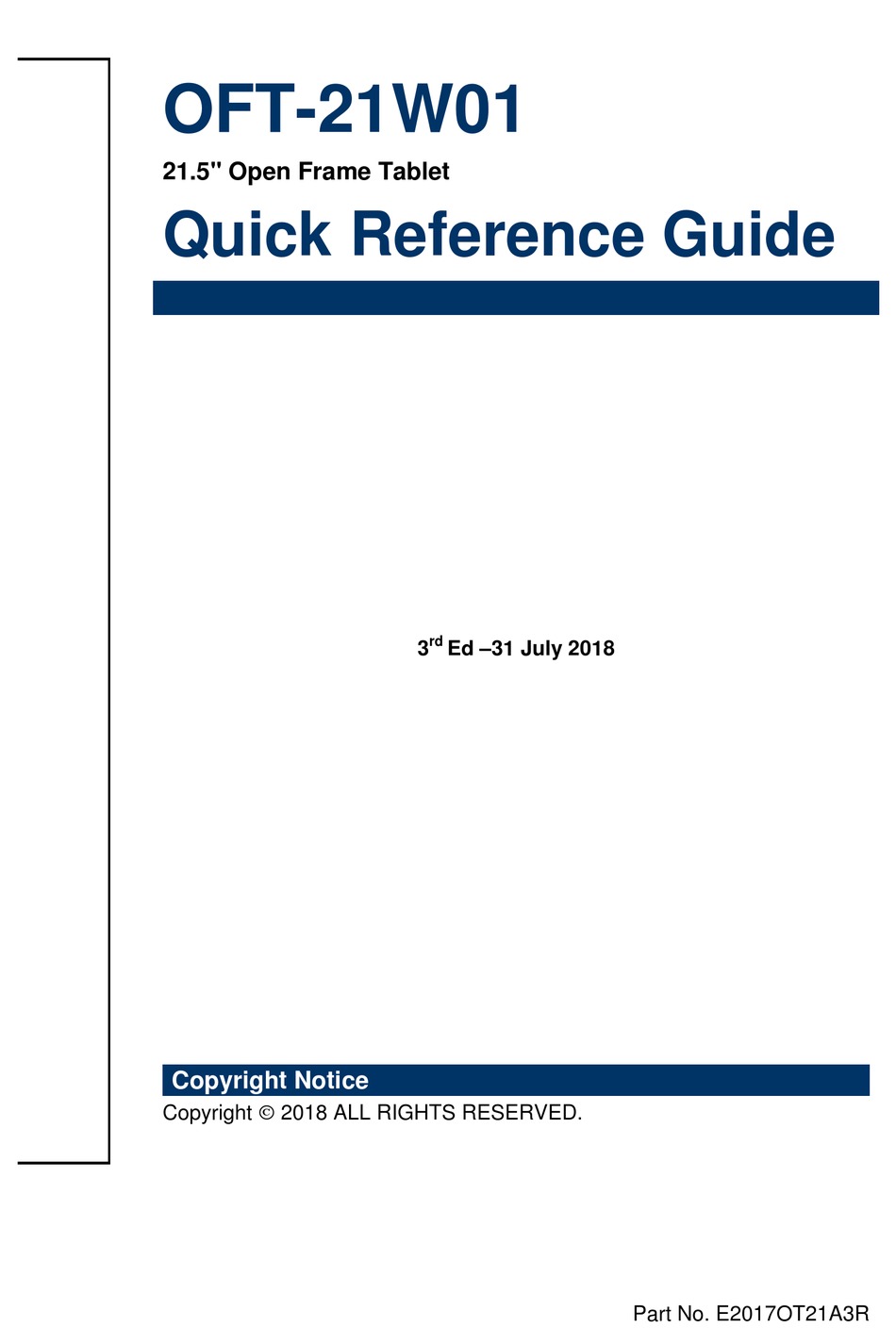

OFT-21W01
21.5" Open Frame Tablet
Quick Reference Guide
rd
Ed –31 July 2018
3
Copyright Notice
Copyright  2018 ALL RIGHTS RESERVED.
Part No. E2017OT21A3R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OFT-21W01 and is the answer not in the manual?

Questions and answers

Related Manuals for BCM Advanced Research OFT-21W01

Summary of Contents for BCM Advanced Research OFT-21W01

  • Page 1 OFT-21W01 21.5" Open Frame Tablet Quick Reference Guide Ed –31 July 2018 Copyright Notice Copyright  2018 ALL RIGHTS RESERVED. Part No. E2017OT21A3R...
  • Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 OFT-21W01 Quick Reference Guide...
  • Page 3 RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. OFT-21W01 Quick Reference Guide...
  • Page 4 “CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.” “WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.” 4 OFT-21W01 Quick Reference Guide...
  • Page 5 Countries : 1 ~ 13 802.11n: USA and Canada : 1 ~ 11 Most European Countries : 1 ~ 13 WLAN: DSSS, OFDM, BPSK(9/6Mbps), QPSK(18/12Mbps), DBPSK(1Mbps), DQPSK(2Mbps), CCK(11/5.5Mbps), 16-QAM(36/24Mbps), 64-QAM Modulation (72.2/54/48Mbps) Bluetooth: GFSK (1Mbps), Π/4DQPSK (2Mbps) and 8DPSK (3Mbps) OFT-21W01 Quick Reference Guide...

  • Page 6: Table Of Contents

    OFT-21W01 Front and Rear side ....................11 1.5.2 OFT-21W01 Installing Extend Brackets ..................12 1.5.3 OFT-21W01 Front and Rear side (With Extend Bracket) ............13 Flush Mounting Concept ..................14 Wall Mounting Concept ..................15 Hardware Configuration ................... 16 BCX11 Overviews ....................17 BCX11 Connector list ...................

  • Page 7: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x OFT-21W01 Open Frame Tablet  OFT-21W01 Quick Reference Guide...

  • Page 8: System Specifications

    Power Type DC input 4pin header  Optional Powered LAN 802.3AT (10” only)  Operating Temp. 0°C ~ 40°C  Storage Temp. -20°C ~ 60°C  Operating 0% ~ 90% Relative Humidity, Non-condensing  Humidity 8 OFT-21W01 Quick Reference Guide...
  • Page 9 Quick Reference Guide LCD Characters Panel Resolution 1920 x 1080 Luminance View Angle 178°/178° (H+-/V+-) Touch Touch PCAP Surface hardness Note: Specifications are subject to change without notice. OFT-21W01 Quick Reference Guide...

  • Page 10: System Overview

    Right View OFT-21W01 1.4.2 Left View Connectors Label Function Note Audio line-out connector HDMI HDMI connector 2 x USB 2.0 connector DCIN DC power-in connector Micro SD card slot Micro USB Micro USB connector RJ-45 Ethernet 10 OFT-21W01 Quick Reference Guide...

  • Page 11: System Dimensions

    Quick Reference Guide 1.5 System Dimensions 1.5.1 OFT-21W01 Front and Rear side (Unit: mm) OFT-21W01 Quick Reference Guide 11...

  • Page 12: Oft-21W01 Installing Extend Brackets

    OFT-21W01 Installing Extend Brackets Step1. Locate brackets on both sides, matching the holes on the monitor. Step2. Insert and fasten 18 screws on each side of the monitor to secure Mounting brackets. Note: Brackets sold separately. 12 OFT-21W01 Quick Reference Guide...

  • Page 13: Oft-21W01 Front And Rear Side (With Extend Bracket)

    Quick Reference Guide 1.5.3 OFT-21W01 Front and Rear side (With Extend Bracket) (Unit: mm) OFT-21W01 Quick Reference Guide 13...

  • Page 14: Flush Mounting Concept

    OFT-21W01 1.6 Flush Mounting Concept 14 OFT-21W01 Quick Reference Guide...

  • Page 15: Wall Mounting Concept

    Quick Reference Guide 1.7 Wall Mounting Concept OFT-21W01 Quick Reference Guide 15...

  • Page 16: Hardware Configuration

    OFT-21W01 2. Hardware Configuration For advanced information, please refer to: 1- BCX11 included in this manual. 16 OFT-21W01 Quick Reference Guide...

  • Page 17: Bcx11 Overviews

    Quick Reference Guide 2.1 BCX11 Overviews OFT-21W01 Quick Reference Guide 17...
  • Page 18 OFT-21W01 18 OFT-21W01 Quick Reference Guide...

  • Page 19: Bcx11 Connector List

    Micro USB connector JDIO1 General purpose I/O connector JCAM1 USB connector J485-1 RS-485 connector J232-1 RS-232 connector JTB1 Touch button board connector JAMP_L AMPLIFIER_L JAMP_R AMPLIFIER_R JAMIC1 A-MIC connector JECDB EC Debug connector JDB1 Debug connector OFT-21W01 Quick Reference Guide 19...

  • Page 20: Ethernet Led Behavior

    Warning: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions." Attention: Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez les piles usagées selon les instructions. 20 OFT-21W01 Quick Reference Guide...

  • Page 21: Bcx11 Connectors Settings

    LED_GND LED_GREEN+ LED_GREEN (Power on) LED_GND 2.5.2 General purpose I/O connector (JDIO1) Signal PIN PIN Signal DIO_GP20 DIO_GP10 DIO_GP21 DIO_GP11 DIO_GP22 DIO_GP12 DIO_GP23 DIO_GP13 DIO_GP24 DIO_GP14 DIO_GP25 DIO_GP15 DIO_GP26 DIO_GP16 DIO_GP27 DIO_GP17 I2C_0_SDA_5V I2C_0_SCL_5V +V5S_DIO OFT-21W01 Quick Reference Guide 21...

  • Page 22: Rs-232 Connector (J232-1)

    OFT-21W01 2.5.3 RS-232 connector (J232-1) Signal DEBUG_TXD DEBUG_RXD 2.5.4 RS-485 connector (J485-1) Signal Data- Data+ 22 OFT-21W01 Quick Reference Guide...

  • Page 23: Usb Connector (Jcam1)

    Quick Reference Guide 2.5.5 USB connector (JCAM1) Signal +5V_UUSB USB20_N0_CAM_R USB20_P0_CAM_R 2.5.6 AMPLIFIER_L (JAMP_L) Signal SPKL_P SPKL_M OFT-21W01 Quick Reference Guide 23...

  • Page 24: Amplifier_R (Jamp_R)

    OFT-21W01 2.5.7 AMPLIFIER_R (JAMP_R) Signal SPKR_P SPKR_M 2.5.8 A-MIC connector (JAMIC1) Signal IN2P IN2N 24 OFT-21W01 Quick Reference Guide...

  • Page 25: I2C Connector (Jsen1)

    Quick Reference Guide 2.5.9 I2C connector (JSEN1) Signal SENSOR_INT_R I2C_2_SCL_SENSOR I2C_2_SDA_SENSOR +3.3VA_SENSOR 2.5.10 DC Power-in connector (JDCIN3) Signal +12V_+24V_ADPIN +12V_+24V_ADPIN OFT-21W01 Quick Reference Guide 25...

  • Page 26: Fcc

    OFT-21W01 2.6 FCC Contains FCC ID: TX2-RTL8723BS IC: 6317A-RTL8723BS FCC ID is located on the MB WiFi Module: Remove all screws on shielding cover. WiFi Module is located on MB underneath of the Shielding cover. 26 OFT-21W01 Quick Reference Guide...
  • Page 27 Quick Reference Guide FCC ID is shown on WiFi Module. OFT-21W01 Quick Reference Guide 27...

  • Page 28: Android Rotate Setting

    OFT-21W01 2.7 Android Rotate Setting Landscape/portrait mode rotate setting: Default rotation is 0° rotate 90°/180°/270° Power offRestart 28 OFT-21W01 Quick Reference Guide...
  • Page 29 Quick Reference Guide OFT-21W01 Quick Reference Guide 29...
  • Page 30 OFT-21W01 30 OFT-21W01 Quick Reference Guide...
