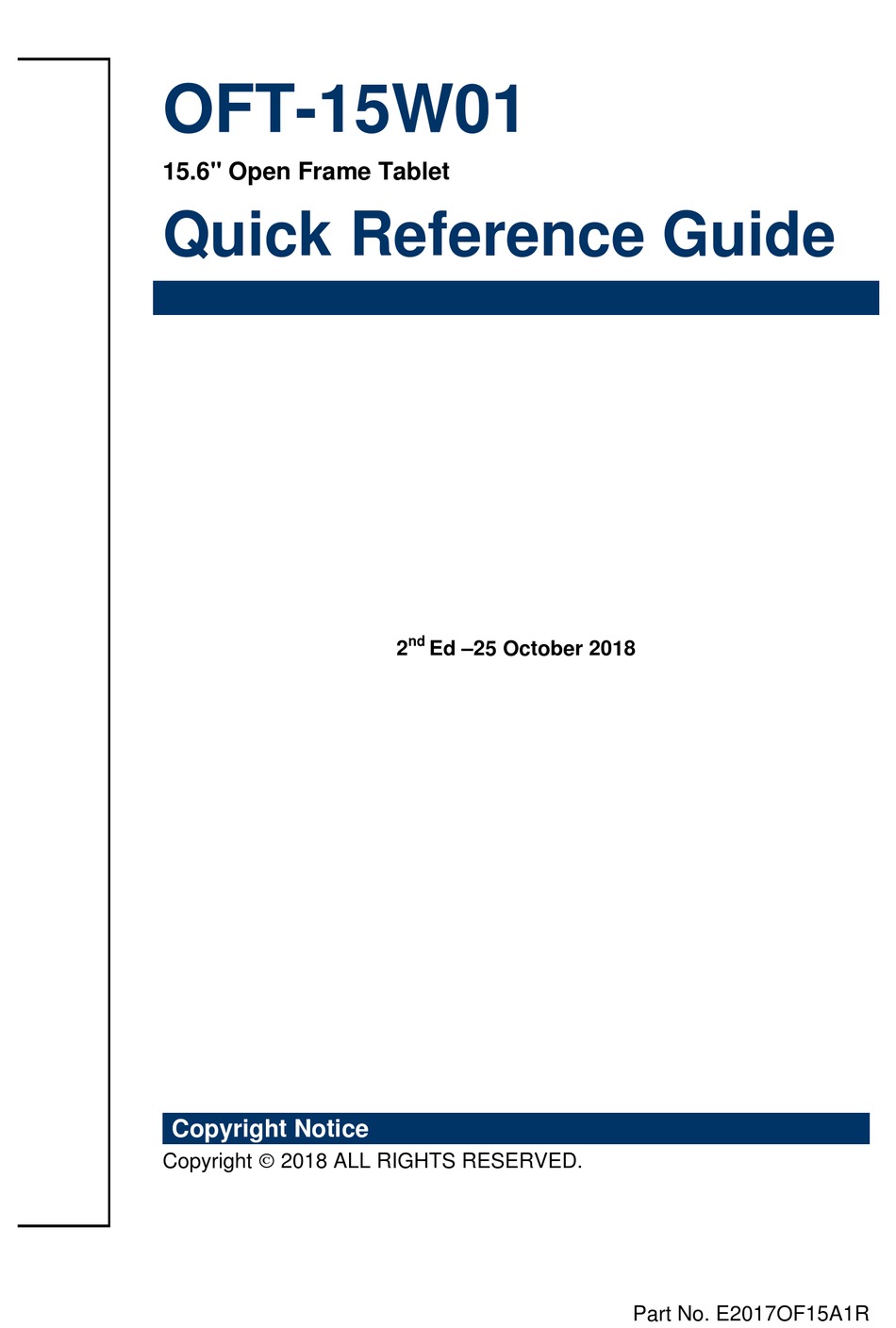

OFT-15W01
15.6" Open Frame Tablet
Quick Reference Guide
nd
Ed –25 October 2018
2
Copyright Notice
Copyright  2018 ALL RIGHTS RESERVED.
Part No. E2017OF15A1R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OFT-15W01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BCM Advanced Research OFT-15W01

  • Page 1 OFT-15W01 15.6" Open Frame Tablet Quick Reference Guide Ed –25 October 2018 Copyright Notice Copyright  2018 ALL RIGHTS RESERVED. Part No. E2017OF15A1R...
  • Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 OFT-15W01 Quick Reference Guide...
  • Page 3 RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. OFT-15W01 Quick Reference Guide...
  • Page 4 “CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.” “WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.” 4 OFT-15W01 Quick Reference Guide...
  • Page 5 Countries : 1 ~ 13 802.11n: USA and Canada : 1 ~ 11 Most European Countries : 1 ~ 13 WLAN: DSSS, OFDM, BPSK(9/6Mbps), QPSK(18/12Mbps), DBPSK(1Mbps), DQPSK(2Mbps), CCK(11/5.5Mbps), 16-QAM(36/24Mbps), 64-QAM Modulation (72.2/54/48Mbps) Bluetooth: GFSK (1Mbps), Π/4DQPSK (2Mbps) and 8DPSK (3Mbps) OFT-15W01 Quick Reference Guide...
  • Page 6: Table Of Contents

    2.5.6 AMPLIFIER_L (JAMP_L) ......................41 2.5.7 AMPLIFIER_R (JAMP_R) ......................42 2.5.8 A-MIC connector (JAMIC1) ......................42 2.5.9 I2C connector (JSEN1) ....................... 43 2.5.10 DC Power-in connector (JDCIN3) ..................... 43 FCC ........................44 Android Rotate Setting ..................46 6 OFT-15W01 Quick Reference Guide...
  • Page 7: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x OFT-15W01 Open Frame Tablet  OFT-15W01 Quick Reference Guide...
  • Page 8: System Specifications

    12V to 24V DC input  Requirement DC Jack  Power Type DC input 4pin header  Operating Temp. 0°C ~ 40°C  Storage Temp. -20°C ~ 60°C  Operating 0% ~ 90% Relative Humidity, Non-condensing  Humidity 8 OFT-15W01 Quick Reference Guide...
  • Page 9 Quick Reference Guide LCD Characters Panel Resolution 1920 x 1080 Luminance View Angle 89°/89°/89°/89° (H+-/V+-) Touch Touch PCAP Surface hardness Note: Specifications are subject to change without notice. OFT-15W01 Quick Reference Guide...
  • Page 10: System Overview

    Right View 1.4.2 Left View Connectors Label Function Note Audio line-out connector HDMI HDMI connector 2 x USB 2.0 connector DC power-in connector DCIN Micro SD card slot Micro USB connector Micro USB RJ-45 Ethernet 10 OFT-15W01 Quick Reference Guide...
  • Page 11: System Dimensions

    Quick Reference Guide 1.5 System Dimensions 1.5.1 Front and Rear side (Unit: mm) OFT-15W01 Quick Reference Guide 11...
  • Page 12: Installing Extend Brackets

    Installing Extend Brackets Step1. Locate brackets on both sides, matching the holes on the monitor. Step2. Insert and fasten 16 screws on each side of the monitor to secure Mounting brackets. Note: Brackets sold separately. 12 OFT-15W01 Quick Reference Guide...
  • Page 13: Front And Rear Side (With Extend Bracket)

    Quick Reference Guide 1.5.3 Front and Rear side (With Extend Bracket) (Unit: mm) OFT-15W01 Quick Reference Guide 13...
  • Page 14: Flush Mounting Concept

    OFT-15W01 1.6 Flush Mounting Concept 14 OFT-15W01 Quick Reference Guide...
  • Page 15: Panel Mounting

    Quick Reference Guide 1.7 Panel Mounting (Opening dimension) (Panel thickness) (Installation surface) (Unit: mm) OFT-15W01 Quick Reference Guide 15...
  • Page 16 Step1-1. Locate Touch Bracket on both sides, matching the holes on the monitor. Step1-2. Insert and fasten 3 screws on each side of the monitor to secure Mounting brackets. Screw Touch Bracket BCX11_156_ASSY Item Part Name Quantity 16 OFT-15W01 Quick Reference Guide...
  • Page 17 Step2-1. Locate brackets on both sides, matching the holes on the monitor. Step2-2. Insert and fasten 12 screws on each side of the monitor to secure Mounting brackets. Hexagon Stud BCX11_156_ASSY Item Part Name Quantity OFT-15W01 Quick Reference Guide 17...
  • Page 18 OFT-15W01 Step3. Insert and fasten 4 screws on each side of the monitor to secure Front bracket. Screw Front Bracket Hexagon Stud Item Part Name Quantity 18 OFT-15W01 Quick Reference Guide...
  • Page 19 Quick Reference Guide Step4. Insert and fasten 8 screws to secure Panel Mount Brackets. Panel Mount Bracket Screw Front Bracket Item Part Name Quantity OFT-15W01 Quick Reference Guide 19...
  • Page 20 OFT-15W01 (Outside of the wall) Step5. Insert BCX11 15” Open frame into the wall. Wall Item Part Name Quantity 20 OFT-15W01 Quick Reference Guide...
  • Page 21 Quick Reference Guide (Inside of the wall) Step6. Fasten 8 screws to secure Panel mount brackets and insert it into Panel Mount Bracket. Panel mount Screw Panel Mount Kit Bracket Panel Mount Bracket Item Part Name Quantity OFT-15W01 Quick Reference Guide 21...
  • Page 22 OFT-15W01 Step7. Insert and fasten 8 Panel mount screws to secure the module. Panel mount Screw Wall Item Part Name Quantity 22 OFT-15W01 Quick Reference Guide...
  • Page 23 Quick Reference Guide Step8. Paste the Decoration Plate on the Front bracket to complete installation. Decoration Plate Front Bracket Item Part Name Quantity OFT-15W01 Quick Reference Guide 23...
  • Page 24: Wall Mounting Concept

    OFT-15W01 1.8 Wall Mounting Concept 24 OFT-15W01 Quick Reference Guide...
  • Page 25: Wall Mounting

    Quick Reference Guide 1.9 Wall Mounting Size of the opening (Opening dimension) (Wall box installation dimension) (Installation surface) (Unit: mm) OFT-15W01 Quick Reference Guide 25...
  • Page 26 OFT-15W01 Screw hole location (Unit: mm) 26 OFT-15W01 Quick Reference Guide...
  • Page 27 Quick Reference Guide Step1. Fasten the screw on the wall. Wall box Item Part Name Quantity OFT-15W01 Quick Reference Guide 27...
  • Page 28 OFT-15W01 Step2. Insert and fasten 3 screws on each side of the monitor to secure Touch Bracket. Screw Touch Bracket BCX11_156_ASSY Item Part Name Quantity 28 OFT-15W01 Quick Reference Guide...
  • Page 29 Quick Reference Guide Step3. Insert and fasten 12 screws on each side of the monitor to secure brackets. Hexagon Stud BCX11_156_ASSY Item Part Name Quantity OFT-15W01 Quick Reference Guide 29...
  • Page 30 Step4-2. Fasten 6 screws on Front bracket of the monitor to secure Wall mount kit. Step4-3. Insert and fasten 6 screws to secure Support Bracket. Support Bracket Wall mount kit Screw Front bracket Item Part Name Quantity 30 OFT-15W01 Quick Reference Guide...
  • Page 31 Quick Reference Guide Step5. Insert and fasten 2 screws on Front bracket and Wall box of the monitor to secure Ground wire. Ground wire Screw Front bracket Wall box Item Part Name Quantity OFT-15W01 Quick Reference Guide 31...
  • Page 32 OFT-15W01 Step6. Wrap the Kensington lock (option) around the hole in the front bracket and attach the lock to the keyhole in the Wall box. Kensington lock Front bracket Wall box Item Part Name Quantity 32 OFT-15W01 Quick Reference Guide...
  • Page 33 Step7-1. Insert the Ground wire and Kensington lock in the Wall box and Insert BCX11 10” Open frame into the wall. Step7-2. Paste the Decoration Plate on the Front bracket to complete installation. PC bezel Item Part Name Quantity OFT-15W01 Quick Reference Guide 33...
  • Page 34: Hardware Configuration

    OFT-15W01 2. Hardware Configuration For advanced information, please refer to: 1- BCX11 included in this manual. 34 OFT-15W01 Quick Reference Guide...
  • Page 35: Bcx11 Overviews

    Quick Reference Guide 2.1 BCX11 Overviews OFT-15W01 Quick Reference Guide 35...
  • Page 36 OFT-15W01 36 OFT-15W01 Quick Reference Guide...
  • Page 37: Bcx11 Connector List

    Micro USB connector JDIO1 General purpose I/O connector JCAM1 USB connector J485-1 RS-485 connector J232-1 RS-232 connector JTB1 Touch button board connector JAMP_L AMPLIFIER_L JAMP_R AMPLIFIER_R JAMIC1 A-MIC connector JECDB EC Debug connector JDB1 Debug connector OFT-15W01 Quick Reference Guide 37...
  • Page 38: Ethernet Led Behavior

    Warning: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions." Attention: Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez les piles usagées selon les instructions. 38 OFT-15W01 Quick Reference Guide...
  • Page 39: Bcx11 Connectors Settings

    LED_GND LED_GREEN+ LED_GREEN (Power on) LED_GND 2.5.2 General purpose I/O connector (JDIO1) Signal PIN PIN Signal DIO_GP20 DIO_GP10 DIO_GP21 DIO_GP11 DIO_GP22 DIO_GP12 DIO_GP23 DIO_GP13 DIO_GP24 DIO_GP14 DIO_GP25 DIO_GP15 DIO_GP26 DIO_GP16 DIO_GP27 DIO_GP17 I2C_0_SDA_5V I2C_0_SCL_5V +V5S_DIO OFT-15W01 Quick Reference Guide 39...
  • Page 40: Rs-232 Connector (J232-1)

    OFT-15W01 2.5.3 RS-232 connector (J232-1) Signal DEBUG_TXD DEBUG_RXD 2.5.4 RS-485 connector (J485-1) Signal Data- Data+ 40 OFT-15W01 Quick Reference Guide...
  • Page 41: Usb Connector (Jcam1)

    Quick Reference Guide 2.5.5 USB connector (JCAM1) Signal +5V_UUSB USB20_N0_CAM_R USB20_P0_CAM_R 2.5.6 AMPLIFIER_L (JAMP_L) Signal SPKL_P SPKL_M OFT-15W01 Quick Reference Guide 41...
  • Page 42: Amplifier_R (Jamp_R)

    OFT-15W01 2.5.7 AMPLIFIER_R (JAMP_R) Signal SPKR_P SPKR_M 2.5.8 A-MIC connector (JAMIC1) Signal IN2P IN2N 42 OFT-15W01 Quick Reference Guide...
  • Page 43: I2C Connector (Jsen1)

    Quick Reference Guide 2.5.9 I2C connector (JSEN1) Signal SENSOR_INT_R I2C_2_SCL_SENSOR I2C_2_SDA_SENSOR +3.3VA_SENSOR 2.5.10 DC Power-in connector (JDCIN3) Signal +12V_+24V_ADPIN +12V_+24V_ADPIN OFT-15W01 Quick Reference Guide 43...
  • Page 44: Fcc

    OFT-15W01 2.6 FCC Contains FCC ID: TX2-RTL8723BS IC: 6317A-RTL8723BS FCC ID is located on the MB WiFi Module: Remove all screws on shielding cover. WiFi Module is located on MB underneath of the Shielding cover. 44 OFT-15W01 Quick Reference Guide...
  • Page 45 Quick Reference Guide FCC ID is shown on WiFi Module. OFT-15W01 Quick Reference Guide 45...
  • Page 46: Android Rotate Setting

    OFT-15W01 2.7 Android Rotate Setting Landscape/portrait mode rotate setting: Default rotation is 0° rotate 90°/180°/270° Power offRestart 46 OFT-15W01 Quick Reference Guide...
  • Page 47 Quick Reference Guide OFT-15W01 Quick Reference Guide 47...
  • Page 48 OFT-15W01 48 OFT-15W01 Quick Reference Guide...
