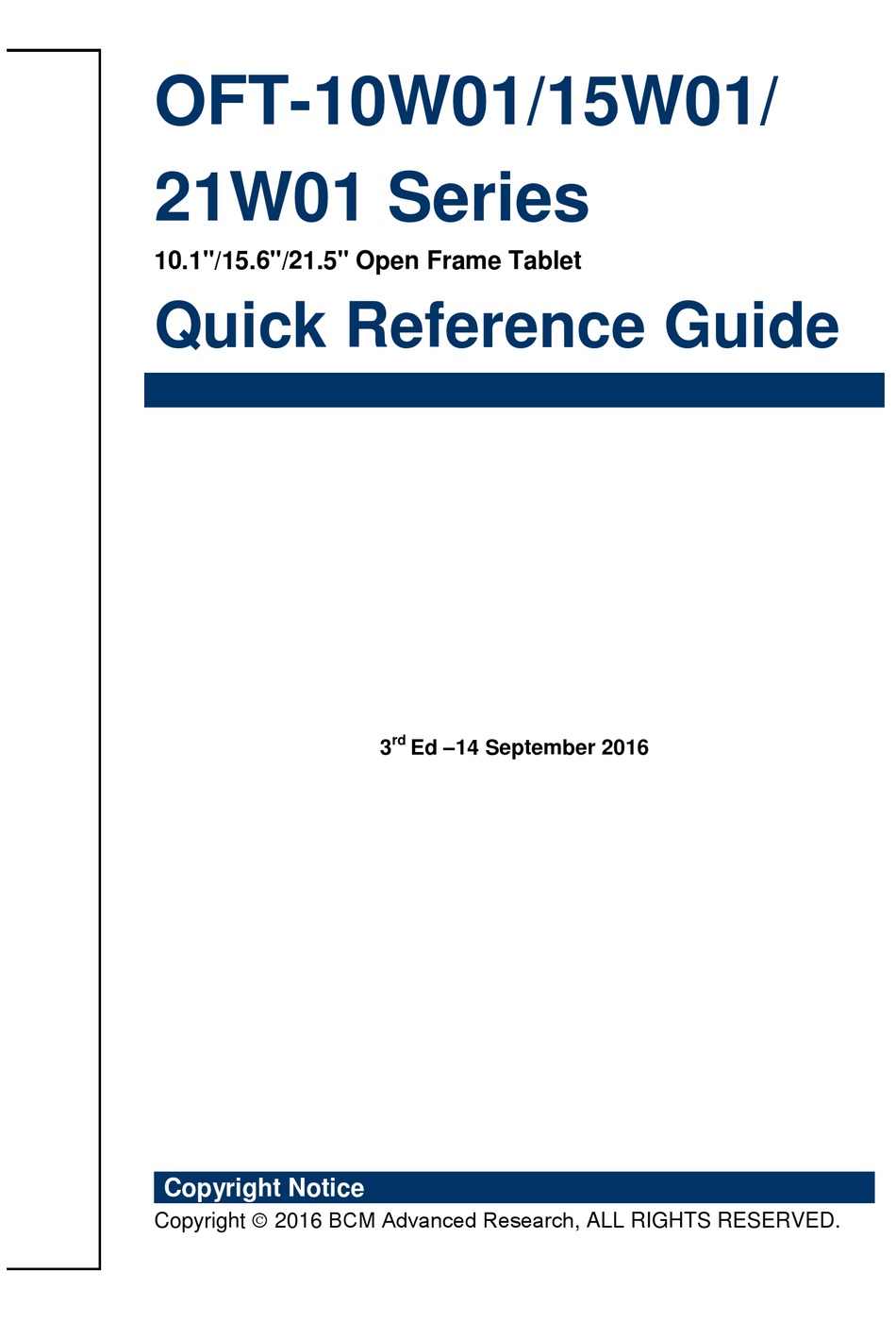

- Page 1 OFT-10W01/15W01/ 21W01 Series 10.1"/15.6"/21.5" Open Frame Tablet Quick Reference Guide Ed –14 September 2016 Copyright Notice Copyright 2016 BCM Advanced Research, ALL RIGHTS RESERVED.
- Page 2 OFT-10W01/15W01/21W01 Series Federal Communication Commission Interference Statement THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
-
Page 3: Fcc Rf Radiation Exposure Statement
Quick Reference Guide FCC RF Radiation Exposure Statement This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65 and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices. - Page 4 OFT-10W01/15W01/21W01 Series WARNING “CAUTION – Use suitable mounting apparatus to avoid risk of injury.” “CAUTION – This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures” “CAUTION –Risk of explosion if battery is replaced by an incorrect type.
- Page 5 Quick Reference Guide WiFi information : IEEE 802.11 b/g/n Wireless LAN and Bluetooth Product Description Combo LGA Module WLAN Standard IEEE 802.11b/g/n, Wi-Fi compliant Bluetooth Standard Bluetooth 2.1+Enhanced Data Rate (EDR) / BT4.0 Major Chipset Realtek RTL8723BS WiFi PID/VID B723 / 024C Antenna Type PIFA Operating Conditions...
-
Page 6: Table Of Contents
OFT-10W01/15W01/21W01 Series Content Getting Started ......................7 Safety Precautions ....................7 Packing List ......................7 System Specifications ................... 8 System Overview ....................10 1.4.1 Right View ..........................10 1.4.2 Left View ............................ 10 System Dimensions ..................... 12 1.5.1 OFT-10W01 Front and Rear side ....................12 1.5.2 OFT-10W01 Installing Extend Brackets .................. -
Page 7: Getting Started
Quick Reference Guide 1. Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. -
Page 8: System Specifications
OFT-10W01/15W01/21W01 Series 1.3 System Specifications Board Specification Processor Intel Atom Z3735F System Memory 2GB DDR3L RAM Storage 8GB or 32GB eMMC WIFI WIFI 802.11 b/g/n/ System Specification Internal I/O 1 x RS232 (TX/RX) / RS485 header ... - Page 9 Quick Reference Guide LCD Characters Panel Model OFT-10W01 OFT-15W01 OFT-21W01 Resolution 1280 x 800 1920 x 1080 1920 x 1080 Luminance View Angle 85°/85°/85°/85° 89°/89°/89°/89° 178°/178° (H+-/V+-) Touch Touch PCAP Surface hardness Note: Specifications are subject to change without notice. OFT-10W01/15W01/21W01 Series Quick Reference Guide...
-
Page 10: System Overview
OFT-10W01/15W01/21W01 Series 1.4 System Overview 1.4.1 Right View OFT-10W01 OFT-15W01 OFT-21W01 1.4.2 Left View OFT-10W01 10 OFT-10W01/15W01/21W01 Series Quick Reference Guide... - Page 11 Quick Reference Guide OFT-15W01 OFT-21W01 Connectors Label Function Note Audio line-out connector HDMI HDMI connector 2 x USB 2.0 connector DCIN DC power-in connector Micro SD card slot Micro USB Micro USB connector RJ-45 Ethernet OFT-10W01/15W01/21W01 Series Quick Reference Guide 11...
-
Page 12: System Dimensions
OFT-10W01/15W01/21W01 Series 1.5 System Dimensions 1.5.1 OFT-10W01 Front and Rear side (Unit: mm) 12 OFT-10W01/15W01/21W01 Series Quick Reference Guide... -
Page 13: Oft-10W01 Installing Extend Brackets
Quick Reference Guide 1.5.2 OFT-10W01 Installing Extend Brackets Step1. Locate brackets on both sides, matching the holes on the monitor. Step2. Insert and fasten 16 screws on each side of the monitor to secure Mounting brackets. Note: Brackets sold separately. OFT-10W01/15W01/21W01 Series Quick Reference Guide 13... -
Page 14: Oft-10W01 Front And Rear Side (With Extend Bracket)
OFT-10W01/15W01/21W01 Series 1.5.3 OFT-10W01 Front and Rear side (With Extend Bracket) (Unit: mm) 14 OFT-10W01/15W01/21W01 Series Quick Reference Guide... -
Page 15: Oft-15W01 Front And Rear Side
Quick Reference Guide 1.5.4 OFT-15W01 Front and Rear side (Unit: mm) OFT-10W01/15W01/21W01 Series Quick Reference Guide 15... -
Page 16: Oft-15W01 Installing Extend Brackets
OFT-10W01/15W01/21W01 Series 1.5.5 OFT-15W01 Installing Extend Brackets Step1. Locate brackets on both sides, matching the holes on the monitor. Step2. Insert and fasten 16 screws on each side of the monitor to secure Mounting brackets. Note: Brackets sold separately. 16 OFT-10W01/15W01/21W01 Series Quick Reference Guide... -
Page 17: Oft-15W01 Front And Rear Side (With Extend Bracket)
Quick Reference Guide 1.5.6 OFT-15W01 Front and Rear side (With Extend Bracket) (Unit: mm) OFT-10W01/15W01/21W01 Series Quick Reference Guide 17... -
Page 18: Oft-21W01 Front And Rear Side
OFT-10W01/15W01/21W01 Series 1.5.7 OFT-21W01 Front and Rear side (Unit: mm) 18 OFT-10W01/15W01/21W01 Series Quick Reference Guide... -
Page 19: Oft-21W01 Installing Extend Brackets
Quick Reference Guide 1.5.8 OFT-21W01 Installing Extend Brackets Step1. Locate brackets on both sides, matching the holes on the monitor. Step2. Insert and fasten 16 screws on each side of the monitor to secure Mounting brackets. Note: Brackets sold separately. OFT-10W01/15W01/21W01 Series Quick Reference Guide 19... -
Page 20: Oft-21W01 Front And Rear Side (With Extend Bracket)
OFT-10W01/15W01/21W01 Series 1.5.9 OFT-21W01 Front and Rear side (With Extend Bracket) (Unit: mm) 20 OFT-10W01/15W01/21W01 Series Quick Reference Guide... -
Page 21: Flush Mounting Concept
Quick Reference Guide 1.6 Flush Mounting Concept OFT-10W01/15W01/21W01 Series Quick Reference Guide 21... -
Page 22: Wall Mounting Concept
OFT-10W01/15W01/21W01 Series 1.7 Wall Mounting Concept 22 OFT-10W01/15W01/21W01 Series Quick Reference Guide... -
Page 23: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- BCX11 included in this manual. OFT-10W01/15W01/21W01 Series Quick Reference Guide 23... -
Page 24: Architecture Overview-Block Diagram
OFT-10W01/15W01/21W01 Series 2.1 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of BCX11. 24 OFT-10W01/15W01/21W01 Series Quick Reference Guide... -
Page 25: Bcx11 Overviews
Quick Reference Guide 2.2 BCX11 Overviews OFT-10W01/15W01/21W01 Series Quick Reference Guide 25... - Page 26 OFT-10W01/15W01/21W01 Series 26 OFT-10W01/15W01/21W01 Series Quick Reference Guide...
-
Page 27: Bcx11 Connector List
Quick Reference Guide 2.3 BCX11 Connector list Connectors Label Function Note JHP1 Audio line-out connector JHDMI1 HDMI connector JUSB1/2 2 x USB 2.0 connector JRJ45 RJ-45 Ethernet connector JDCIN2 DC Power-in connector JDCIN3 DC Power-in connector J10TP1 10” Touch connector J19TP1 21”... - Page 28 OFT-10W01/15W01/21W01 Series *Ethernet LED behavior: Label LED color Indication Meaning LED off 10 Mbits/sec data rate is selected Data Rate Yellow LED on 100 Mbits/sec data rate is selected LAN link is not established Link/ACT Green LED on LAN link is established LED Blinking LAN active is occurring *RTC Battery...
-
Page 29: Bcx11 Connectors Settings
Quick Reference Guide 2.4 BCX11 Connectors settings 2.4.1 Touch button board connector (JTB1) Signal Signal PWR_JTB1 BU1_TV_3V VOL_UP_3V VOL_DOWN_3V PWRBTN_3V BU_BR+_3V BU_BR-_3V BU7_3V LED_GREEN_con LED_ORANGE_con 2.4.2 General purpose I/O connector (JDIO1) Signal PIN PIN Signal DIO_GP20 DIO_GP10 DIO_GP21 DIO_GP11 DIO_GP22 DIO_GP12 DIO_GP23 DIO_GP13... -
Page 30: Rs-232 Connector (J232-1)
OFT-10W01/15W01/21W01 Series 2.4.3 RS-232 connector (J232-1) Signal DEBUG_TXD DEBUG_RXD 2.4.4 RS-485 connector (J485-1) Signal 485_422TX1- 485_422TX1+ +5V_DEV 30 OFT-10W01/15W01/21W01 Series Quick Reference Guide... -
Page 31: Usb Connector (Jcam1)
Quick Reference Guide 2.4.5 USB connector (JCAM1) Signal +5V_UUSB USB20_N0_CAM_R USB20_P0_CAM_R 2.4.6 AMPLIFIER_L (JAMP_L) Signal SPKL_P SPKL_M OFT-10W01/15W01/21W01 Series Quick Reference Guide 31... -
Page 32: Amplifier_R (Jamp_R)
OFT-10W01/15W01/21W01 Series 2.4.7 AMPLIFIER_R (JAMP_R) Signal SPKR_P SPKR_M 2.4.8 A-MIC connector (JAMIC1) Signal IN2P IN2N 32 OFT-10W01/15W01/21W01 Series Quick Reference Guide... -
Page 33: I2C Connector (Jsen1)
Quick Reference Guide 2.4.9 I2C connector (JSEN1) Signal SENSOR_INT_R I2C_2_SCL_SENSOR I2C_2_SDA_SENSOR +3.3VA_SENSOR 2.4.10 DC Power-in connector (JDCIN3) Signal +19V_+24V_ADPIN +19V_+24V_ADPIN OFT-10W01/15W01/21W01 Series Quick Reference Guide 33... -
Page 34: Fcc
OFT-10W01/15W01/21W01 Series 2.5 FCC Contains FCC ID: TX2-RTL8723BS IC: 6317A-RTL8723BS FCC ID is located on the MB WiFi Module: Remove all screws on shielding cover. WiFi Module is located on MB underneath of the Shielding cover. 34 OFT-10W01/15W01/21W01 Series Quick Reference Guide... - Page 35 Quick Reference Guide FCC ID is shown on WiFi Module. OFT-10W01/15W01/21W01 Series Quick Reference Guide 35...
-
Page 36: Android Rotate Setting
OFT-10W01/15W01/21W01 Series 2.6 Android Rotate Setting Landscape/portrait mode rotate setting: Default rotation is 0° rotate 90°/180°/270° Power offRestart 36 OFT-10W01/15W01/21W01 Series Quick Reference Guide... - Page 37 Quick Reference Guide OFT-10W01/15W01/21W01 Series Quick Reference Guide 37...
- Page 38 OFT-10W01/15W01/21W01 Series 38 OFT-10W01/15W01/21W01 Series Quick Reference Guide...
