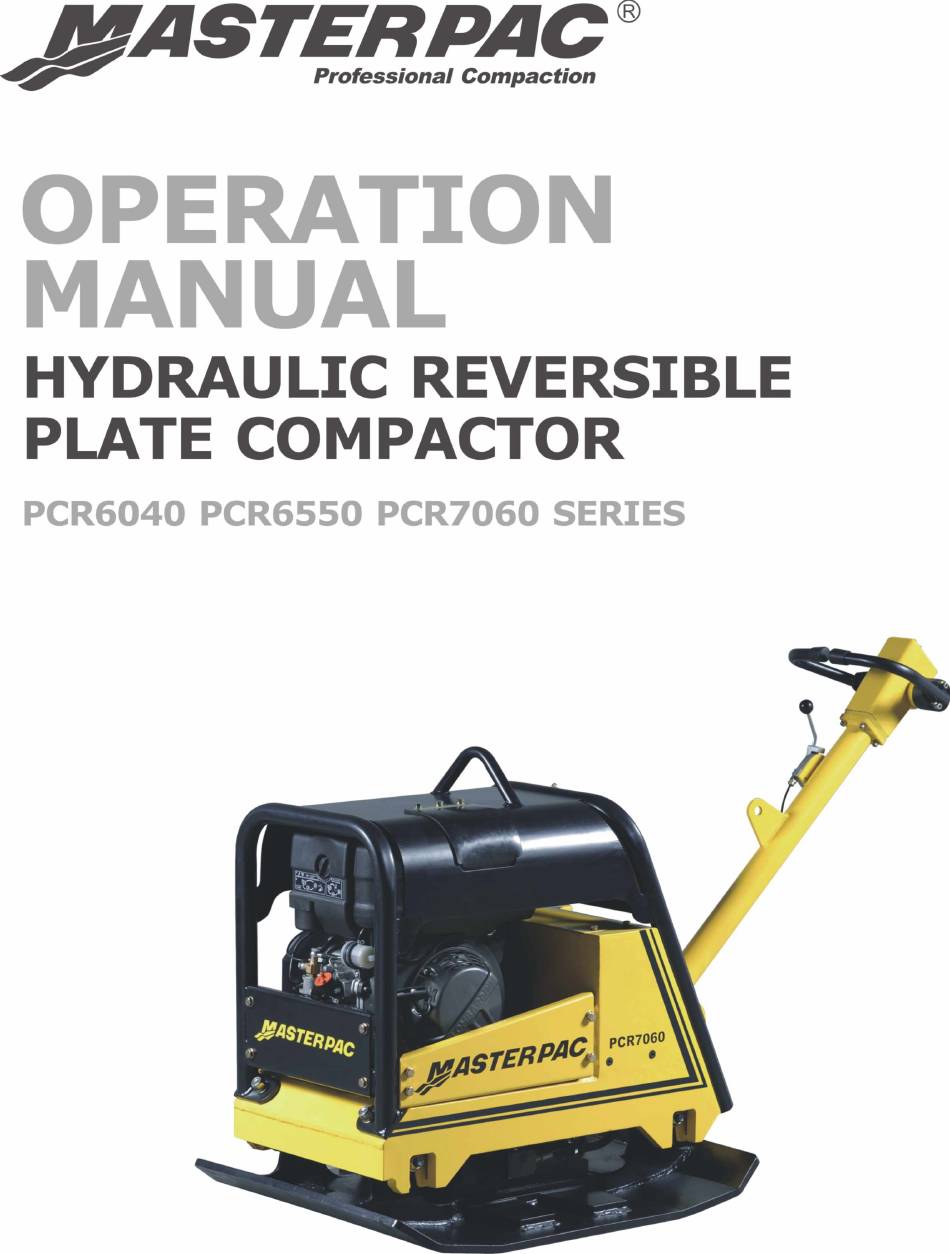

MASTERPAC PCR6040 Series Operation Manual

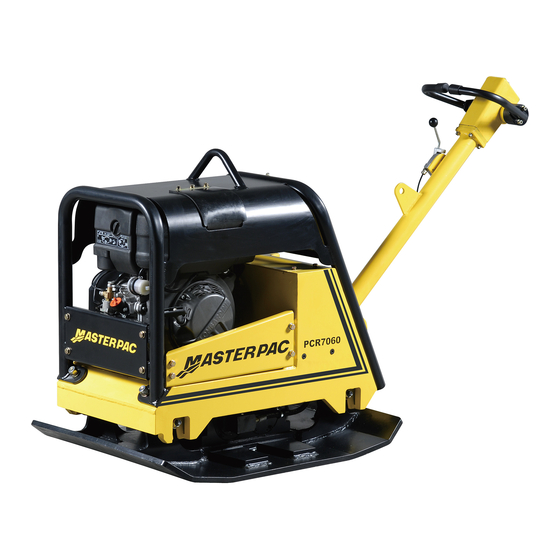

Hydraulic reversible plate compactor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCR6040 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MASTERPAC PCR6040 Series

Summary of Contents for MASTERPAC PCR6040 Series

  • Page 2: Table Of Contents

    Table of Contents 1. SAFETY INFORMATION 1.1 Safety Precautions …………………..……………………………………………………..2 1.2 Operating Safety…………………………………………………………………..…….. .3-4 1.3 Operator Safety while using Internal Combustion Engines…………………………... 4 1.4 Label Locations………………………………………………………………….………..…5 1.5 Safety and Operating Labels……………………………….…………………………….6-7 2. OPERATION 2.1 Controls………………………………………………………………………………………… . ..8 2.2 Operating Principle ………………………………………………………………………………9 2.3 Delivery Checks ……………………………………………………………………….…………9 2.4 Before Starting……………………………………………………..………………….………….9 2.5 To Start ………………………………………………………………………………..………10-11...

  • Page 3: Safety Information

    SAFETY INFORMATON 1. SAFETY INFORMATION 1.1 Safety Precautions Before operating the machine, read both the manual and the engine manual carefully to become familiar with the location and proper use of all controls. Do not allow untrained or unauthorized personnel, especially children, to operate the machine.

  • Page 4: Operating Safety

    SAFETY INFORMATON 1.2 Operating Safety DO NOT modify the machine without the prior consent of the manufacturer. We don’t assume responsibility for any accident due to equipment modification. NEVER operate the machine in purpose for which it is not intended. Slip/Trip/Fall is a major cause of serious injury or death.

  • Page 5: Operator Safety While Using Internal Combustion Engines

    SAFETY INFORMATON Petrol is extremely flammable and explosive under certain conditions. ENSURE that the petrol is only stored in an approved storage container. DO NOT refuel the engine while it is in operation or hot. DO NOT operate or refuel the engine in a confined area without adequate ventilation.

  • Page 6: Label Locations

    SAFETY INFORMATION 1.4 Label Locations...

  • Page 7: Safety And Operating Labels

    SAFETY INFORMATION 1.5 Safety and Operating Labels MASTERPAC machines use international pictorial labels where needed. These labels are described below: Label Meaning DANGER! Engines emit carbon monoxide; operate only in well-ventilate area. Read the Operator’s Manual for machine information. No sparks, flames, or burning objects near the machine.
  • Page 8 SAFETY INFORMATION Label Meaning WARNING! Hot surface! NOTICE! Throttle control lever: Turtle=Idle or slow, Rabbit=Full or fast. A nameplate listing the model number and serial number is attached to each unit. Please record the information found on this plate so it will be available if the nameplate lost or damaged.

  • Page 9: Operation

    OPERATION 2. OPERATION 2.1 Controls Ref. Description Ref. Description Lever for Forward/Reverse Operation Engine Throttle Control Base Plate Lifting Point Handle Refueling...

  • Page 10: Operating Principle

    OPERATION 2.2 Operating Principle The following instructions were compiled to provide you information on how to obtain long and trouble free use of the unit. Periodic maintenance of this unit is essential. Read the manual in its entirety and follow the instructions carefully. Failure to do so may injure yourself or a bystander.

  • Page 11: To Start

    OPERATION 2.5 To Start 2.5.1 Diesel Engine — Lombardini 1. Do not actuate starter for more than 20 seconds at a time. If engine does not start, wait 1 minute before repeating attempt. If engine does not start after two attempts, trace the cause according to Diagnosis Chart.

  • Page 12: To Stop

    OPERATION 5. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until engine resistance is felt, then let starter return. 6. Taking care not to pull the starter’s cope fully out, pull the starter handle briskly. 7.

  • Page 13: Operation

    OPERATION 2.9 Operation – Driving 1. Forward Operation: Move the forward /reverse lever forwards. 2. Reverse Operation: Move the forward/reverse lever backwards. 2.10 Operation on Slop 1. The operator must never stand in the direction of descent. 2. Must never exceed the Max. gradient of 20°. Max.

  • Page 14: Periodic Maintenance Schedule

    MAINTENANCE 3. MAINTENANCE 3.1 Periodic Maintenance Schedule Refer to engine manufacturer’s Operation Manual for additional information on engine maintenance. A copy of the engine Operation Manual was supplied with the machine. At first Every Every Every Every Every Daily 1000 hours hours hours...

  • Page 15: Exciter Oil

    MAINTENANCE 3.2 Exciter Oil When changing the exciter oil, place the exciter on a flat, horizontal surface, remove the drain plug located at the bottom-right of the vibrator, and simply tip the compactor to drain the oil. Note that the oil will drain more easily while it is hot. DO NOT pour in too much oil.

  • Page 16: Air Cleaner

    MAINTENANCE 3.4 Air Cleaner 1. The air filter element should be cleaned because a clogged air cleaner can cause poor engine starting, lack of power and shorten engine life substantially. 2. To clean or replace air filter loosen the wing nut on the air filter housing (Figure 1), remove the cover and take out air filter cartridge.

  • Page 17: Troubleshooting

    MAINTENANCE 3.7 Troubleshooting 3.7.1 Machine Troubleshooting SYMPTOM POSSIBLE CAUSES SOLUTION The V-belt slipping. Adjust or change the V-belt. It does not advance. The clutch is slipping. Check or change the clutch. It vibrates, The vibrator maybe on a Try on the right surface. but does not move.
  • Page 18 MAINTENANCE 3.7.2 Engine Troubleshooting SYMPTOM POSSIBLE CAUSE SOLUTION Check gap, insulation or replace Spark plug bridging. spark plug. Difficult to start, "fuel Carbon deposit on spark Clean or replace spark plug. is available, but no plug. SPARK at spark Check spark plug insulation, plug".
  • Page 19 MAINTENANCE SYMPTOM POSSIBLE CAUSE SOLUTION Fuel not available in fuel Fill with correct type of fuel. tank. Fuel cock does not open Apply lubricant to loosen fuel properly. cock level, replace if necessary. No fuel present at carburetor. Fuel filter clogged. Replace fuel filter.

  • Page 20: Technical Data

    TECHNICAL DATA 4. TECHNICAL DATA PCR6040 Series Model PCR6040H PCR6040L PCR6040A Lombardini Engine type Honda GX270 Hatz 1B40 15LD440 Power 6.6(9.0) 8.1(11) 7.5(10.2) kw(hp) Operating weight 355(783) 375(825) 378(833) kg(lb) Plate size L x W 90x60(35x24) cm(in) Centrifugal force Vibration Frequency...
  • Page 21 TECHNICAL DATA Working Size (mm): Model PCR6040 Series 1540 1047 PCR6550 Series 1540 1047 PCR7060 Series 1585 1040 Sound Specification (According to 2000/14/EC) Guaranteed sound power level 109dB(A) Vibration Specification (According to ISO 2631 and EN 1033) : Model PCR6040 4.7 m/s...

  • Page 22: Warranty

    WARRANTY MASTERPAC products are covered by warranty for a period of twelve (12) months from the date of purchase against defects in material or workmanship provided that: The product concerned has been operated and maintained in accordance with the operating instructions.

  • Page 23: Maintenance Record

    MAINTENANCE RECORD PREVENTATIVE MAINTENANCE AND ROUTINE SERVICE PLAN MASTERPAC plate compactor has been assembled with care and will provide years of service. Preventative maintenance and routine service are essential to the long life of your plate compactor. After reading through this manual thoroughly, you will find that you can do some of the regular maintenance yourself.

  • Page 24: Ec Declaration

    EC DECLARATION OF CONFORMITY CE-KONFORMITÄTSERKLÄUNG DECLARACIÓN DE CONFORMIDAD DE LA CE DÉCLARATION DE CONFORMITÉ C.E. hereby certifies that the construction equipment specified hereunder / bescheinigt, da. das Bauger.t / certifica que la máquina de construcción / atteste que le matériel : Category / Art / Categoría / Catégorie: Hydraulic Reversible Plate Compactor Type / Typ / Tipo / Type:...
  • Page 25 MASTERPAC INTERNATIONAL: Add. Z.A.C du trou grillon P.O Box 38. 91280 St PIERRE DU PERRAY. FRANCE Tel. +33-6-12-70-02-63 E-mail. intlsales@masterpac.eu MASTERPAC ENGINEERING CO.,LTD Add. Weisi Road, Baohe Industrial Estate, Hefei 230051.China Tel. 86-551-4846601 Fax. 86-551-4846616 E-mail. sales@masterpac.eu www.masterpac.eu Version: 01/10/01...
