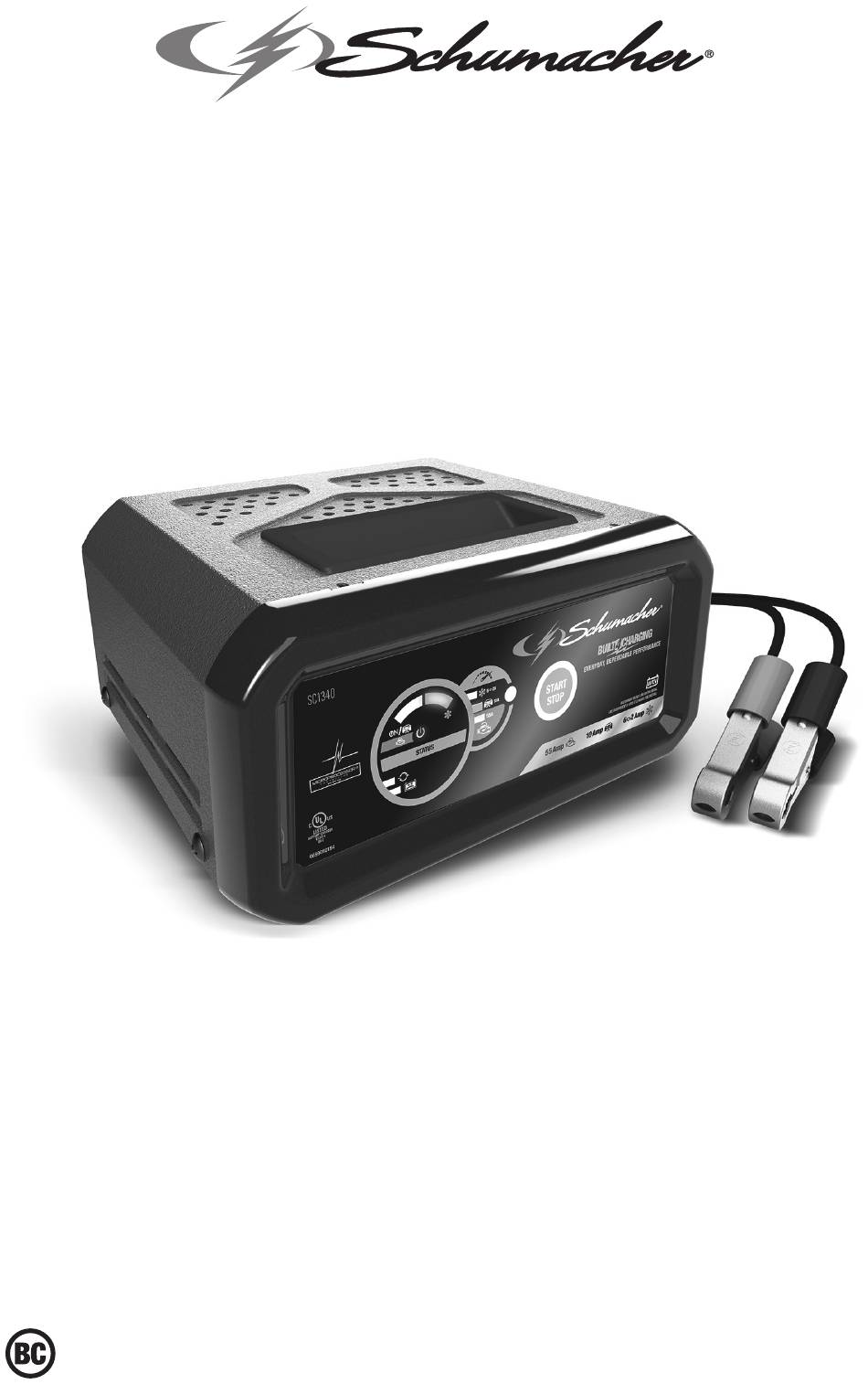

MODEL / MODELO / MODÈLE : SC1340 Automatic Battery Charger Cargador de baterías automático Chargeur de batterie automatique OWNERS MANUAL / MANUAL DEL USUARIO MANUEL D’UTILISATION PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the battery charger safely and effectively.
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................5 PERSONAL SAFETY PRECAUTIONS ..................5 PREPARING TO CHARGE ......................6 CHARGER LOCATION .........................6 DC CONNECTION PRECAUTIONS ....................6 FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE ........6 FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE ........7 GROUNDING AND AC POWER CORD CONNECTIONS ............7 ASSEMBLY INSTRUCTIONS ......................7 CONTROL PANEL ........................7 OPERATING INSTRUCTIONS .....................8...
Page 3
CONTENIDOS INSTRUCCIONES IMPORTANTES DE SEGURIDAD ..............13 PRECAUCIONES DE SEGURIDAD PERSONAL ..............13 PREPARACIÓN PARA LA CARGA ...................14 UBICACIÓN DEL CARGADOR ....................14 PRECAUCIONES DE CONEXIÓN EN CC ................14 SIGA ESTOS PASOS CUANDO LA BATERÍA ESTÉ COLOCADA EN EL VEHÍCULO ...14 SIGA ESTOS PASOS CUANDO LA BATERÍA SE ENCUENTRE FUERA DEL VEHÍCULO ..15 CONEXIONES A TIERRA Y ENERGÍA DE CA ................15 INSTRUCCIONES DE MONTAJE ....................16 PANEL DE CONTROL ........................16...
Page 4
TABLE DES MATIÈRES CONSIGNES DE SÉCURITÉ IMPORTANTES................22 MESURES DE SÉCURITÉ PERSONNELLE ................22 PRÉPARATION POUR LE CHARGEMENT ................23 EMPLACEMENT DU CHARGEUR ....................23 PRÉCAUTIONS SUR LA CONNEXION C.C................23 ÉTAPES À SUIVRE QUAND LA BATTERIE EST INSTALLÉE DANS UN VÉHCULE .....23 ÉTAPES À SUIVRE QUAND LA BATTERIE EST INSTALLÉE HORS DU VÉHICULE ....24 MISE À...
1.3 Do not expose the charger to rain or snow. a qualified serviceman when service or 1.4 Use of an attachment not recommended repair is required. Incorrect reassembly or sold by Schumacher Electric ® may result in a risk of electric shock or fire.
3. PREPARING TO CHARGE 3.1 If necessary to remove battery from battery without removable cell caps, such vehicle to charge, always remove as valve regulated lead acid batteries, grounded terminal from battery first. Make carefully follow manufacturer’s recharging sure all accessories in the vehicle are off, instructions.
7. FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE WARNING: A SPARK NEAR THE connect NEGATIVE (BLACK) charger clip BATTERY MAY CAUSE A BATTERY to free end of cable. EXPLOSION. TO REDUCE THE RISK OF 7.5 Do not face battery when making final A SPARK NEAR THE BATTERY: connection.
RATE SELECTION BUTTON 10A BOOST – For quickly adding Use this button to select one of the following: energy to a severely discharged or large capacity battery prior to Engine Start. The 6<>2A CHARGE – For charging small unit will automatically switch to 6A<>2A and large batteries.
4. Press the START/STOP button to MAINTAINING A BATTERY begin Engine Start. Engine Start will The SC1340 charges and maintains 6V and not begin without pressing the START/ 12V batteries, keeping them at full charge. STOP button.
13. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Battery clamps do not The START/STOP button has Press the START/STOP button. spark when touched not been pressed. together. AC outlet is dead. Check for open fuse or circuit LED does not breaker supplying AC outlet. light when charger is properly connected.
For REPAIR OR RETURN, contact Customer Service at 1-800-621-5485. DO NOT SHIP UNIT until you receive a RETURN MERCHANDISE AUTHORIZATION (RMA) number from Customer Service at Schumacher Electric Corporation. 15. SPECIFICATIONS Input ..........120V AC @ 60Hz, 2.2A continuous, 12A intermittent Output ...............6V DC, 2A cont.;...
Manufacturer does not provide any warranty for any accessories used with this product that are not manufactured by Schumacher Electric Corporation and approved for use with this product. This Limited Warranty is void if the product is misused, subjected to careless handling, repaired, or modified by anyone other than Manufacturer or if this unit is resold through an unauthorized retailer.
1.9 No desarme el cargador; hágalo revisar o a la nieve. por una persona capacitada que efectúe 1.4 El uso de un accesorio no recomendado reparaciones cuando necesite servicio o suministrado por Schumacher Electric ® de mantenimiento o una reparación. Corporation puede provocar riesgo de Volver a ensamblar el cargador en forma incendio, descarga eléctrica o lesiones a...
como para soldar un anillo o provocar batería para cargar baterías de pila seca efectos similares sobre el metal, que por lo general se utilizan con artefactos causando una quemadura de gravedad. domésticos. Estas baterías podrían explotar y provocar lesiones a personas o daño a la 2.8 Utilice este cargador solamente para cargar propiedad.
6.3 Verifique la polaridad de los bornes de cuerpos metálicos. Conecte a una pieza la batería. El borne POSITIVO (POS, metálica de calibre grueso del marco o P, +) de la batería generalmente posee del bloque motor. un diámetro mayor al borne NEGATIVO 6.6 En un vehículo con descarga a tierra (NEG, N, -).
8.3 USO DE UN CABLE DE EXTENSIÓN • Asegúrese de que el cable de extensión esté conectado correctamente y en El uso de una extensión no se buenas condiciones eléctricas. recomienda. Si debe usar una extensión, siga estas pautas: • El tamaño del cable debe ser lo suficientemente extenso para el calibre •...
Page 17
MANTENIENDO UNA BATERÍA [modo de mantenimiento] automáticamente El SC1340 carga y mantiene las baterías después que la batería se cargue. de 6 y 12 voltios, manteniéndolas a carga TIEMPOS DE CARGA completa.
6. Déle arranque al motor hasta que UTILIZAR LA FUNCIÓN se ponga en marcha o que pasen 3 DE ENCENDIDO DE MOTOR segundos. Si el motor no arranca, El cargador de batería se puede utilizar espere 3 minutos antes de intentarlo para impulsar el auto si la batería está...
13. LOCALIZACIÓN Y RESOLUCIÓN DE PROBLEMAS PROBLEMA CAUSA POSIBLE SOLUCIÓN Las pinzas de la batería El botón START / STOP No se Presione el botón START / STOP. no hacen corto al ha pulsado. juntarse una con otra. Tomacorriente de C.A. fuera de Controle la posible presencia de El LED no se ilumina...
5:00 Para REPARACIÓN O DEVOLUCIÓN, comuníquese con Servicios al Cliente al 1-800-621-5485. NO ENVÍE LA UNIDAD hasta que usted reciba AUTORIZACIÓN DE DEVOLUCIÓN DE MERCANCÍA (RMA) de Servicios al Cliente de Schumacher Electric Corporation. 15. ESPECIFICACIONES Input ..........120V AC @ 60Hz, 2.2A continuous, 12A intermittent Output ...............6V CC, 2A cont.;...
El Fabricante no presta garantía por lo accesorios utilizados con este producto que no sean los fabricados por Schumacher Electric Corporation y que no estén aprobados para su uso con este producto. La presente Garantía Limitada será nula si el producto se utiliza en forma errónea, se trata de manera inadecuada, es reparado o modificado...
L’utilisation d’accessoires vous devez l’entretenir ou le réparer. Un non recommandés ou vendus par mauvais remontage pourrait causer un Schumacher Electric Corporation peut ® risque d’incendie ou de choc électrique. engendrer un risque d’incendie, un choc électrique ou des blessures.
recommandé de 12Ah (6V) et 22-59Ah 2.9 NE JAMAIS charger une batterie gelée. (12V). Il n’est pas conçu pour alimenter un 2.10 AVERTISSEMENT : Ce produit contient système électrique à basse tension autre un ou plusieurs produits chimiques que dans une application d’un démarreur. reconnus par l’État de Californie pour Ne pas utiliser ce chargeur de batterie causer cancer, des malformations...
du chargeur à la borne POSITIVE (POS, châssis du véhicule ou au moteur, loin de P, +) non mise à la masse de la batterie. la batterie. Ne pas raccorder la pince au Raccorder la pince NÉGATIVE (NOIRE) carburateur, aux canalisations d’essence au châssis du véhicule ou au moteur, ni aux pièces de la carrosserie en tôle.
9. DIRECTIVES D’ASSEMBLAGE 9.1 Enlever tous les cordons dérouler sur les câbles avant d’utiliser le chargeur de batterie. 10. PANNEAU DE CONTRÔLE BOUTON START/STOP REMARQUE : Consultez la section des Appuyez pour enclencher aussitôt le Consignes d’Utilisation pour une description chargement de la batterie auparavant complète des modes de chargeur.
Page 26
MAINTENIR UNE BATTERIE TEMPS DE CHARGEMENT Le SC1340 maintient batteries de 6 et 12 volts, de les maintenir à pleine charge. Il TAILLE DE TEMPS DE CHARGE (Heures) LA BATTERIE APPLICATION charge et maintient à...
de démarrage du moteur, ou il va Si le moteur ne démarre pas, attendez endommager le système électrique du 3 minutes avant de l’activer à nouveau. véhicule. Faite vérifiée la batterie. Cela permet au chargeur et la batterie de refroidir. La DEL de Démarrage du 1.
Page 28
PROBLÈME CAUSE POSSIBLE SOLUTION Cycle de démarrage Pas de courant à la prise. Vérifiez si un fusible est coupé ou court ou non existant le disjoncteur pour cette prise de quand on lance le courant. moteur. Mauvais branchement du Vérifiez le cordon d’alimentation et cordon CA ou de la rallonge.
Du lundi au vendredi 07h00-17h00 CST Pour RÉPARATION OU RETOUR, contactez le service téchnique au 1-800-621-5485. NE PAS ENVOYER L’UNITÉ jusqu’à ce que vous receviez une AUTORISATION DE RETOUR DE MARCHANDISE (RMA) auprès du service clientèle au Schumacher Electric Corporation. 15. SPÉCIFICATIONS Entrée ..........
Le Fabricant ne fournit aucune garantie sur les accessoires utilisés avec ce produit qui ne sont pas fabriqués par Schumacher Electric Corporation et approuvés pour être utilisés avec ce produit. Cette garantie limitée est annulée si le produit est sujet à...
ORIGINAL receipt because it will be required for any warranty claims. This warranty is not transferable. Send warranty card only. DO NOT SEND UNIT TO THIS ADDRESS FOR REPAIR. Mail this card to: Schumacher Electric Corporation 801 Business Center Drive Mount Prospect, IL 60056-2179 Name ______________________________________________________________...
éventuelle réclamation au titre de la garantie. Cette garantie n’est pas transférable. Envoyer la carte de garantie seulement. NE PAS ENVOYER L’UNITÉ À CETTE ADRESSE POUR RÉPARATION. Envoyer cette carte à : Schumacher Electric Corporation 801 Business Center Drive Mount Prospect, IL 60056-2179 (É.-U ) Nom _______________________________________________________________...
