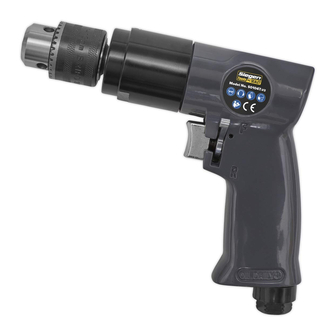

10mm 1800rpm reversible

Advertisement

Thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear protective
instruction
gloves
manual

1. saFeTY

9
Follow all workshop health & safety rules, regulations, and conditions when using drill.
WarNiNG! disconnect from air supply before changing accessories or servicing.
WarNiNG! Check correct air pressure is maintained and not exceeded. We recommended 90 psi.
9
maintain the drill in good condition and replace any damaged or worn parts. Use genuine parts only. non-authorised parts may be
dangerous and will invalidate the warranty.
9
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are secure.
9
Wear approved safety eye protection. If dust is generated wear respiratory protection, and safety gloves.
9
Wear suitable clothing to avoid snagging. dO NOT wear loose jewellery and tie back long hair.
9
Keep hands away from rotating chuck and drill bit.
9
Keep drill bits clean and sharp for best and safest performance.
9
maintain correct balance and footing. ensure the floor is not slippery and wear non-slip shoes.
9
Secure non stable work piece with a clamp, vice or other adequate holding device.
9
ensure the chuck is securely fastened to the spindle and the drill bit is secure in the chuck.
9
Keep children and unauthorised persons away from the working area.
WarNiNG! dO NOT use drill if damaged or faulty. Contact your local service agent.
WarNiNG! Beware of high-reaction torque when breaking through the material being drilled.
8
dO NOT get the drill wet or use in damp or wet locations.
8
dO NOT apply excessive loads to the drill bit during operation.
8
dO NOT hold the workpiece by hand. Use clamps or a vice to secure the workpiece.
8
dO NOT use the drill for a task it is not designed to perform.
8
dO NOT use drill unless you have been instructed in its use by a qualified person.
8
dO NOT drop, throw or abuse the drill.
8
dO NOT carry the drill by the air hose, or yank the hose from the air supply.
8
dO NOT operate drill if you are tired, under the influence of alcohol, drugs or intoxicating medication.
8
dO NOT carry drill with your hand on the power trigger in order to avoid unintentional starting.
8
dO NOT direct air from the air hose at yourself or others.
9
When not in use disconnect from air supply and store in a safe, dry, childproof location.
2.

iNTrOducTiON

i
Powder coated aluminium housing for added corrosion resistance, with planetary gear drive assembly. Features reversible action making
this tool suitable for driving fixings. Fitted with 10mm drill chuck and supplied with chuck key. Suitable for the dIY enthusiast and light
garage use.
3.

speciFicaTiON

s
model no. ...............................................................S01047.V2
Free Speed: ............................................................. 1800rpm
Chuck size ................................................................ Ø10mm
Air Consumption:............................................................ 4cfm
operating Pressure: ...................................................... 90psi
Air inlet Size: .............................................................1/4"BSP
Weight: .......................................................................... 1.1kg
noise Power/Pressure: ...................................... 101/90dB(A)
Vibration/Uncertainty: ......................................... 0.89/1.5m/s
4.

preparaTiON

si4
Chuck Size:
4.1.
air supply
WarNiNG! ensure the air supply is clean and does not exceed 90psi while operating the drill. Too high an air pressure and unclean air
will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.1.1.
ensure drill air valve (or trigger) is in the "off" position before connecting to the air supply.
4.1.2.
You will require an air pressure of 90psi, and an air flow according to specification.
4.1.3.
drain the air tank daily. Water in the air line will damage the drill.
© Jack Sealey limited
air drill 10mm 1800rpm reversible
model no:
Wear eye
Wear face
protection
mask
10mm
Original Language Version
s01047.v2
Wear ear
protection
2
S010147.V2
Issue 1 23/07/18
