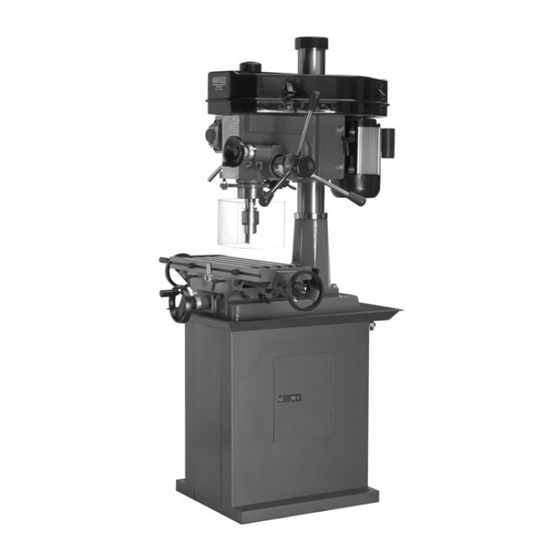

- Page 1 INSTRUCTIONS FOR Drilling/Milling Machine Stand is optional extra. SM25.V3 MODEL: SM25.V3 - 1 - 27/03/07...
-
Page 2: Safety Instructions
Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is not protected by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by contacting your Sealey dealer. - Page 3 Remove the coating with commercial degreaser, kerosene or similar solvent before operating. Avoid getting the solvent on belts or other rubber parts. After degreasing coat the machined surfaces with a medium consistency machine oil. SM25.V3 - 1 - 27/03/07...
- Page 4 Setting and locking the cutter height. Once the workpiece is in place the cutter can be lowered to the required cutting height using the vertical fine feed hand wheel. The height setting must then be locked using the feed lock handle situated next to the depth gauge ( See fig.3-3 ). SM25.V3 - 1 - 27/03/07...
- Page 5 ‘F’ position so that the drill bit is turning clockwise. Refer to Section 4.3.13 4.4.8 Switching on. Refer to Section 4.3.14 for the operation of the main ON/OFF switch. SM25.V3 - 1 - 27/03/07...
-
Page 6: Maintenance
27/03/07 93/68/EEC CE Marking Directive 2002/95/EC RoHS Directive For Jack Sealey Ltd. Sole importer into the UK of Sealey Quality Machinery 2002/96/EC WEEE Directive NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
