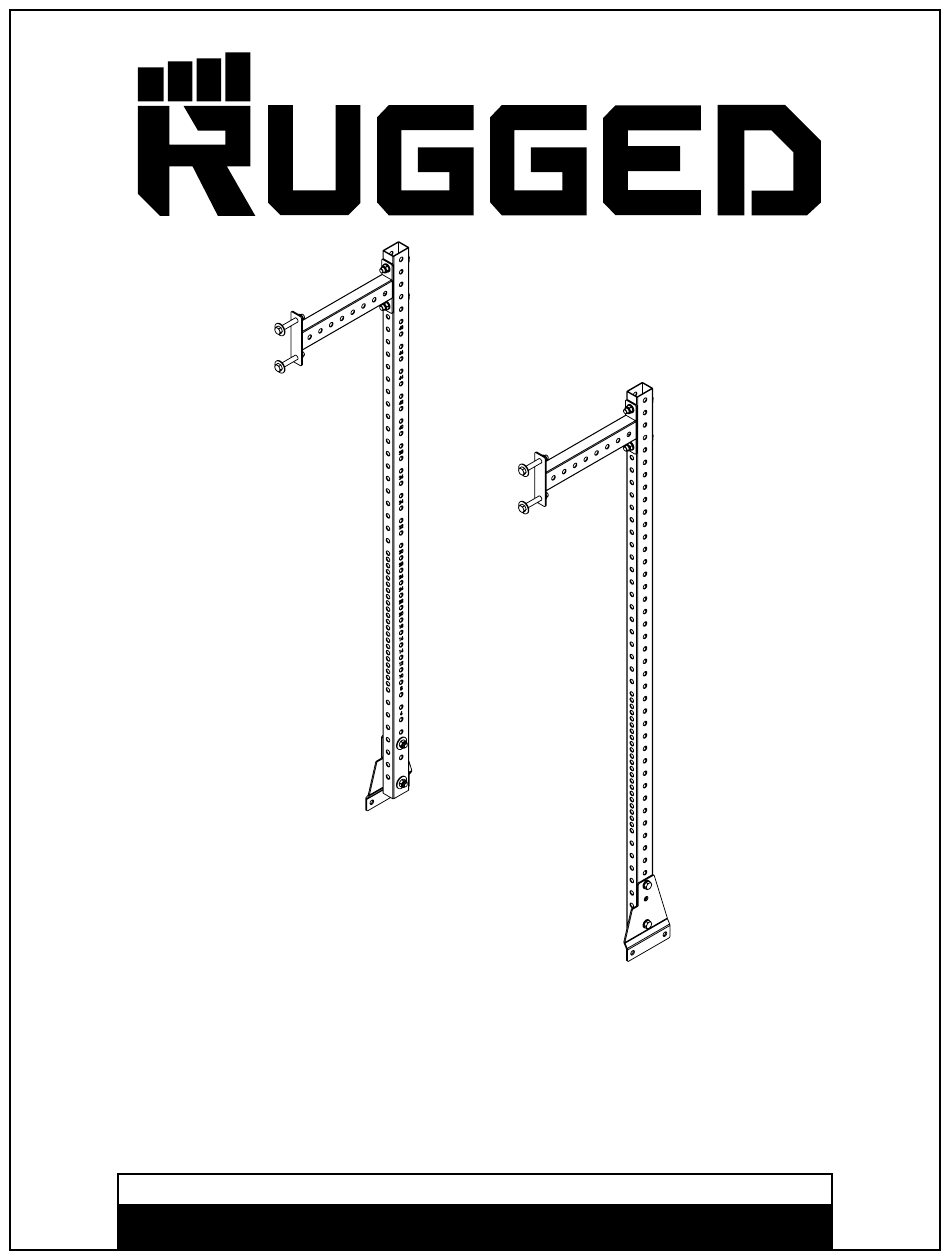

- Page 1 S T R E N G T H & F I T N E S S WARRIOR HALF RACK EXTENSION SKU# Y220 & A s s e m b l y I n s t r u c t i o n s O W N E R ’...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e Be sure that all users carefully read and understand all warning, safety and maintenance labels on the machine before each use.
-
Page 3: Table Of Contents
T a b l e o f C o n t e n t s • SAFETY INSTRUCTIONS......PAGE 4 • PREPARATION..........PAGE 5 • HARDWARE ILLUSTRATION......PAGE 6 • PARTS / HARDWARE LIST......PAGE 8 • PARTS ILLUSTRATION........PAGE 9 • ASSEMBLY INSTRUCTIONS......PAGE 10 • EXPLODED VIEW.......... PAGE 15 • CONTACT PAGE..........PAGE 16... -
Page 4: Safety Instructions
I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement. -
Page 5: Preparation
P r e p a r a t i o n Required Tools Assembly Tips Read all “Notes” on each page before beginning each The basic tools that you must obtain before assembling the Y220 include but are not limited to: step. While you may be able to assemble the Y220 using the illustrations only, important safety notes and other tips m Standard Wrench Set are included in the text. m Metric Wrench Set Some pieces may have extra holes that you will not use. m Adjustable Wrench Use only those holes indicated in the instructions and illustrations. NOTE: With so many assembled parts, proper Installation Requirements alignment and adjustment is critical. While tightening the nuts and bolts, be sure to leave Follow these installation requirements when assembling room for adjustments. the Y220. Set up the Y220 on a solid, flat surface. A... -
Page 6: Hardware Illustration
Y 2 2 0 H a r d w a r e I l l u s t r a t i o n Part #1 HEX HEAD BOLT M16x80mm QTY. 4... - Page 7 Y 2 2 0 H a r d w a r e I l l u s t r a t i o n Part #5 LARGE FLAT WASHER M16 QTY. 12...
-
Page 8: Parts / Hardware List
Y 2 2 0 P a r t s & H a r d w a r e L i s t Part# Description UPRIGHT SIDE CROSSBAR RIGHT STEEL BRACKET LEFT STEEL BRACKET M16x80mm HEX HEAD BOLT M16x110mm HEX HEAD BOLT M16 REGULAR O.D. WASHER M16 LARGE O.D. WASHER 6 M16 NYLON LOCK NUT... -
Page 9: Parts Illustration
P a r t s I l l u s t r a t i o n Part A - UPRIGHT, QTY 2 Part B - SIDE CROSSBAR, QTY 2 Part D - LEFT STEEL BRACKET, QTY 1 Part C - RIGHT STEEL BRACKET, QTY 1 45 9... -
Page 10: Assembly Instructions
S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten until instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tightened to fully go on. - Page 11 S T E P Above shows Step 1 assembled and completed.
- Page 12 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware first in this step. Wrench tighten ALL hardware at the end of STEP 2B. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tightened fully go on.
- Page 13 S T E P Above shows Step 2 assembled and completed.
- Page 14 N o t e s...
-
Page 15: Exploded View
Y 2 2 0 E x p l o d e d V i e w... -
Page 16: Contact Page
S T R E N G T H & F I T N E S S Y220 PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW 013490-��-��-����-���� S/N # 1900 S. Des Plaines Ave. Forest Park, IL 60130 Phone:(708)427-3555 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST www.ruggedfitness.com...
