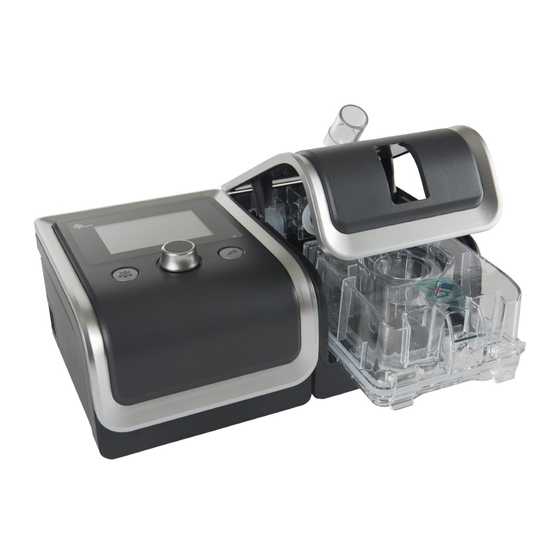

- Page 1 RESmart BPAP System 20T/25T/30T model User Manual 0123...
-
Page 2: Table Of Contents
RESmart BPAP 20T/25T/30T User Manual V1.1 Table of Contents 1. Introduction ......................1 1.1 System Contents ................... 1 1.2 Intended Use ....................1 1.3 Warnings, Cautions and Contraindications ............2 1.3.1 Warnings ..................2 1.3.2 Cautions ................... 2 1.3.3 Contraindications ................3 1.4 System Overview .................. -
Page 3: Introduction
(OSA), either in the hospital or at home. The RESmart BPAP 20T/25T/30T is to be used only on the instruction of a licensed health care professional. Your home care provider will make the correct pressure settings according to your health care professional’s prescription. -
Page 4: Warnings, Cautions And Contraindications
• Contact your health care professional if symptoms of sleep apnea recur. • Using the RESmart BPAP 20T/25T/30T at an incorrect elevation setting could result in airflow pressures higher than the prescribed setting. Always verify the elevation setting when traveling or relocating. -
Page 5: Contraindications
RESmart BPAP 20T/25T/30T User Manual V1.1 1.3.3 Contraindications The device should not be used if you have severe respiratory failure without a spontaneous respiratory drive. If any of the following conditions applies to you, consult your physician before using the device: If you have any of the following conditions, tell your doctor before using the BPAP: •... -
Page 6: Glossary
RESmart BPAP 20T/25T/30T User Manual V1.1 the RESmart BPAP 20T/25T/30T stating that it is medical equipment. It may help if you also take this manual with you when you travel. AC Inlet: Connect/disconnect the AC power cord here. SD card slot : Used to insert the SD card. -
Page 7: Symbol Key
RESmart BPAP 20T/25T/30T User Manual V1.1 1.6 Symbol Key 1.6.1 Control Buttons Pressure Start / Stop Ramp Button Humidifier On / Off User Button User Button 1.6.2 Device Attention, Consult Accompanying Documents Type BF Applied part Class II (Double Insulated) -
Page 8: Device Controls And Displays
RESmart BPAP 20T/25T/30T User Manual V1.1 2. Device Controls and Displays Display Screen: All device settings will appear here. Pressure Start/Stop Button Use this button to start/stop the airflow. DO NOT start the airflow until the circuit tubing is connected. -
Page 9: First Time Setup
3.1 Installing the Filter CAUTION! The foam filter must be in place at all times when the RESmart BPAP 20T/25T/30T is operating. a. Place the foam filter into the filter area on the back of the RESmart BPAP 20T/25T/30T. b. Attach the filter cap. Position the cap so that the small opening on the cap is facing down. -
Page 10: Adjusting The Breathing Circuit
Connect the flexible tubing to the air outlet on the front of the RESmart BPAP 20T/25T/30T. b. If you are using a mask with a built-in exhalation port, connect the mask’s connector to the flexible tubing. -
Page 11: Device Operation
4.3 Turning the System OFF Remove the mask and headgear. Press the Pressure Start/Stop Button on the top of the RESmart BPAP 20T/25T/30T to stop the airflow. Or, if the Auto Off setting has been enabled, the airflow will automatically turn off. IMPORTANT! -
Page 12: Change Device Settings
(when the airflow is turned on) will lower the airflow pressure, if prescribed, and then will gradually increase it. WARNING! DO NOT use the RESmart BPAP 20T/25T/30T if the display is erratic. Contact your home care provider for further instructions. IMPORTANT! If at any time you wish to exit the setup menu, press the Pressure Start/Stop Button and the display will go back to the system standby screen. - Page 13 When the optional InH2 Heated Humidifier is used, this setting allows the air flow continue for about 15 minutes at very low pressure (about 2 hPa) after RESmart BPAP 20T/25T/30T is turned off. This will blow off the left vapor and protect the RESmart BPAP 20T/25T/30T. Default setting is Enable.
- Page 14 Disable Use Days k. The number of nights the RESmart BPAP 20T/25T/30T was used for therapy for more than 4 hours will appear. This screen is only for reference. Your home care provider may periodically ask you for this information.
-
Page 15: Reading Therapy Information
RESmart BPAP 20T/25T/30T User Manual V1.1 4.5 Reading Therapy Information Double-click the <+> or <-> button when device is working. Parameters of Therapy information such as Tidal volume can be read in turn from Vte (tidal volume), Res. Rate, Min Vent, Leak on the interface of the display screen. - Page 16 RESmart BPAP 20T/25T/30T User Manual V1.1 breaths are given It gives the average value of Exhaled Min Ventilator Minute of the previous 4 breaths. ventilator 0-50 l ± (1+20%) The value will keep the default “0” unless more than 3 breaths are given...
-
Page 17: Alerts And Troubleshooting
RESmart BPAP 20T/25T/30T User Manual V1.1 5. Alerts and Troubleshooting The following table summarizes the device alerts. ALERT AUDIBLE VISUAL DEVICE POSSIBLE PATIENT INDICATOR INDICATOR ACTION CAUSE ACTION System beep LCD backlight Device Press any key error flashes device failure... - Page 18 RESmart BPAP 20T/25T/30T User Manual V1.1 The table below lists common problems you may have with the RESmart BPAP 20T/25T/30T and possible solutions to those problems. If none of the corrective actions solve the problem, contact your home care provider.
-
Page 19: Accessories
The oxygen supply must comply with the local regulations for medical oxygen. WARNING! Turn the RESmart BPAP 20T/25T/30T on before turning the oxygen on. Turn the oxygen off before turning the RESmart BPAP 20T/25T/30T off. Explanation of Warning: When the RESmart BPAP 20T/25T/30T is turned off, but the oxygen flow is still turned on, oxygen may accumulate within the RESmart BPAP 20T/25T/30T enclosure and create a fire risk. -
Page 20: Cleaning And Maintenance
Squeeze out the water and repeat. Air dries the filter on a rack for 8 to 12 hours or in a clothes dryer for 15 to 20 minutes. b. Insert the filter into the filter area on the back of the RESmart BPAP 20T/25T/30T. Replace the filter cap. -
Page 21: Traveling With Resmart
RESmart BPAP 20T/25T/30T User Manual V1.1 If you notice any unexplained changes in the performance of the RESmart BPAP 20T/25T/30T, if it is making unusual or harsh sounds, if it has been dropped or mishandled, if the enclosure is broken, or if water has entered the enclosure, discontinue use. Contact your home care provider. -
Page 22: Specifications
RESmart BPAP 20T/25T/30T User Manual V1.1 8. Specifications Device Size Dimensions: 220 mm× 194 mm× 112 mm, 313 mm× 194 mm× 112 mm (with InH2 heated humidifier) Weight: 2.2 kg, 3 kg (with InH2 heated humidifier) Product Use, Transport and Storage... - Page 23 RESmart BPAP 20T/25T/30T User Manual V1.1 Static Pressure Stability: 4 to 25 hPa (± 0.5 hPa) Dynamic Pressure Stability: 4 to 25 hPa (± 1.0 hPa) For 30T: Static Pressure Stability: 4 to 30 hPa (± 0.5 hPa) Dynamic Pressure Stability: 4 to 30 hPa (± 1.0 hPa)
-
Page 24: Appendix A: Emc Requirements
RESmart BPAP 20T/25T/30T User Manual V1.1 Appendix A: EMC Requirements Guidance and manufacturer's declaration - electromagnetic emissions The RESmart is intended for use in the electromagnetic environment specified below. The user of the RESmart should ensure that it is used in such an environment. - Page 25 RESmart BPAP 20T/25T/30T User Manual V1.1 Guidance and manufacturer's declaration - electromagnetic immunity The RESmart is intended for use in the electromagnetic environment specified below. The user of the RESmart should make sure that it is used in such an environment.
- Page 26 RESmart BPAP 20T/25T/30T User Manual V1.1 Guidance and manufacturer's declaration - electromagnetic immunity The RESmart is intended for use in the electromagnetic environment specified below. The user of the RESmart should make sure that it is used in such an environment.
-
Page 27: Limited Warranty
RESmart BPAP 20T/25T/30T User Manual V1.1 Limited Warranty BMC Medical Co., Ltd. warrants that the RESmart BPAP device shall be free from defects of workmanship and materials and will perform in accordance with the product specifications for a period of one (1) year for main unit and three (3) months for all accessories from the date of sale by BMC Medical Co., Ltd.
