Delfield SADBR1-SH Specifications

SPECIFICATION LINE

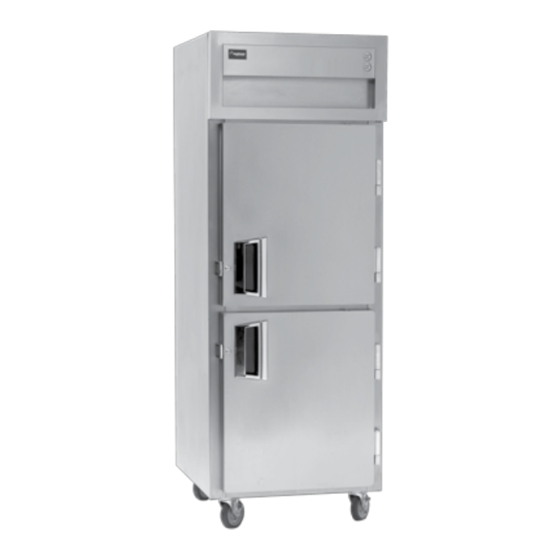

Solid Door Single Section Dual Temp Refrigerator/Freezer
Reach-Ins
MODELS
❑ SSDTR1-SH Refrigerator top/freezer bottom, stainless interior
❑ SADTR1-SH
Refrigerator top/freezer bottom, aluminum interior
SDBR1-SH
SPECIFICATIONS
Exterior: Top and bottom are constructed of
heavy gauge galvinized steel. Sides and upper
shroud are heavy gauge stainless steel.
Interior: Liner is heavy gauge, corrosion
resistant, stainless steel (SS)
or heavy gauge
. Two wire shelves per
aluminum (SA models)
section are supported by stainless steel shelf clips
which are placed in stainless steel pilasters and
are adjustable on 1" centers. Shelves are rated
at 250lb. load capacity each.
Doors: Unit is provided with two half height
hinged doors. Doors are provided with locks;
magnetic door gasket, easily removable without
tools; cam lift, self closing, edge mount door
hinges.
❑ SSDBR1-SH
❑ SADBR1-SH
STANDARD FEATURES
• Stainless steel exterior and interior (SS)
• Tri-seal door gaskets
• Stainless steel exterior, aluminum interior (SA)
• Chrome plated shelves - two per section
• Two seperate, top mounted condensing units, one for
each compartment
• Interior, ceiling mounted evaporator coil in each
compartment
• Automatic condensate removal
• High density polyurethane foam insulation
• Heavy duty hinges with stay open feature
• Easy to read exterior digital themometers
• Built in door locks with heavy duty strikes
• Recessed door handles
• Easy access "flip up" shroud
• Tough ABS interior door liners
• 6" adjustable stainless steel legs
• Stainless steel breaker strips
• Two year parts & labor warranty
Refrigeration Systems: Each compartment has
its own separate refrigeration system. Condensing
units are located on top of the cabinet, outside the
food zone, behind the removable upper shroud.
Evaporator coils are located inside the cabinet
mounted to the interior ceiling of each compartment.
Defrost is automatic. Condensate travels down a
tube in the cabinet side wall to a recepticle mounted
to the exterior bottom of the cabinet where it
evaporates with the aid of an electric heater. Each
compartment's temperature is individually monitored
and controlled. Two exterior digital themometers
monitor temperature. Refrigerator compartment
maintains temperature between 33˚F and 41˚F.
Freezer compartment maintains temperature between
+0˚F and -5˚F.
980 S. Isabella Road Phone: 800-733-8948
Mt. Pleasant, MI 48858 Fax: 800-669-0619
www.delfield.com Email: info@delfield.com
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
Freezer top/refrigerator bottom, stainless interior
Freezer top/refrigerator bottom, aluminum interior
OPTIONS AND ACCESSORIES
❑ Laminate ends
❑ Laminate doors & shroud
❑ Extra shelves
❑ Stainless steel wall trim
❑ Security package
❑ 220-50-1 electrical
❑ 220-60-1 electrical
❑ Casters
❑ Tray slides
❑ One glass door/one solid door configuration
❑ Stainless steel door liner
❑ Bottom mount electrical
❑ Heat shield end
❑ Stainless steel back
Miscellaneous: Unit comes with one 10' cord
and plug with single point connection to all
cabinet and refrigeration system electronics. Each
compartment is illuminated by a door switch
activated, 25 watt, incondescent light mounted to
the interior ceiling. Unit comes standard with four,
adjustable stainless steel legs, mounted in the field.
Unit is standard with a two year parts, two year
labor warranty and additional three year parts
warranty only on the compressor part.
Approval _________________
Date____________________
