Delfield Shelleyglas KCSC-36B Specifications

Short Form

Specifications

Exterior Body is seamless, one-piece
molded fiberglass, having perfectly
smooth exterior surface with all cor-
ners fully rounded. The fiberglass rein-
forced polyester (F.R.P.) is molded with
permanent color. Stress points are
internally reinforced.
Exterior top is constructed of
14-gauge stainless steel, welded,
ground and polished into one integral
unit.
The refrigerated cold pan is 7"
(17.8cm) deep and constructed of
stainless steel. The cold pan is sepa-
rated from the exterior top by a ther-
mal break. Copper refrigeration tubing
is attached to the sides of the cold
pan and is fully insulated with foamed
in place polyurethane insulation. Cold
pan is equipped with a 1" (2.5cm)
I.P.S. drain with drain valve located at
the bottom of the unit. Temperatures
of 33°F (1°C) to 41°F (5°C) are main-
tained with pans recessed 3" (7.6cm)
at 86°F ambient room temperature.
Pans (by others) rest on a stainless
steel bracket.
Refrigeration system uses HFC-404A
refrigerant and has a self-contained
115 volt, 60 Hertz, single phase her-
metically sealed condensing unit with
adjustable cold pan pressure control.
Unit is wired with a 3-wire, grounded,
maximum 10' (3m) cord and plug.
Unit has an on/off switch mounted on
the exterior.
Casters: Unit is mounted on 5"
(12.7cm) diameter swivel casters with
non-marking polyolefin tires and plate
brakes. Overall height of caster assem-
bly is 6.00" (15.2cm).
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
Optional Accessories and
Modifications:
A) 12" (30.5cm) wide stainless steel
fold-down tray slide
C) 10" (25.4cm) wide three-bar fold-
down tray slide
D) 10" (25.4cm) wide composite fold-
down cutting boards
E) 10" (25.4cm) wide stainless steel
fold-down work shelf
F) Line-up interlock device
G) Glass-front counter protector
H) Two tier display with glass shelves
and sneezeguards
HD) Dual service two tier display with
sneezeguards
I) Three tier diplay with glass shelves
and sneezeguards
J) 12" (30.5cm) wide 18-gauge stain-
less steel overshelf
KS) Single service flip-up sneezeguard
KD) Double service flip-up sneezeguard
L) *Fluorescent or incandescent light
fixtures
P) Open understorage with shelf or
doors (specify)
Q) *120V/60Hz/1ø, 10 amp conve-
nience outlet with breaker
SG5A) Dry storage compartment —
single door
SG5B) Dry storage compartment —
double door
SG20) *Refrigerated understorage (60"
unit or longer only)
U) 14" x 30" (35.6cm x 76.2cm) stain-
less steel end drop shelf
UU)
Molded fiberglass trim strips
V) 6" (15.2cm) high adjustable stain-
less steel legs in lieu of casters
• Adapter bars (specify length)
*Inclusion of these options will alter the elec-
trical specifications of unit.
PROJECT
ITEM #
QUANTITY
APPROVAL

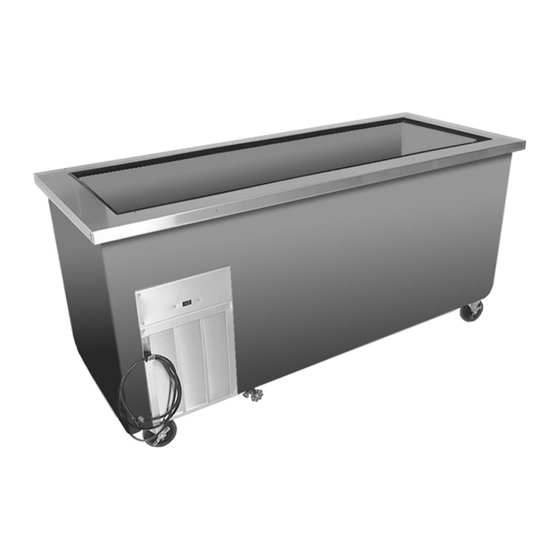

Mobile Self-Contained Cold Pan Serving Counters
DATE
KCSC-B
Model KCSC-50-B
