SCREEN GW

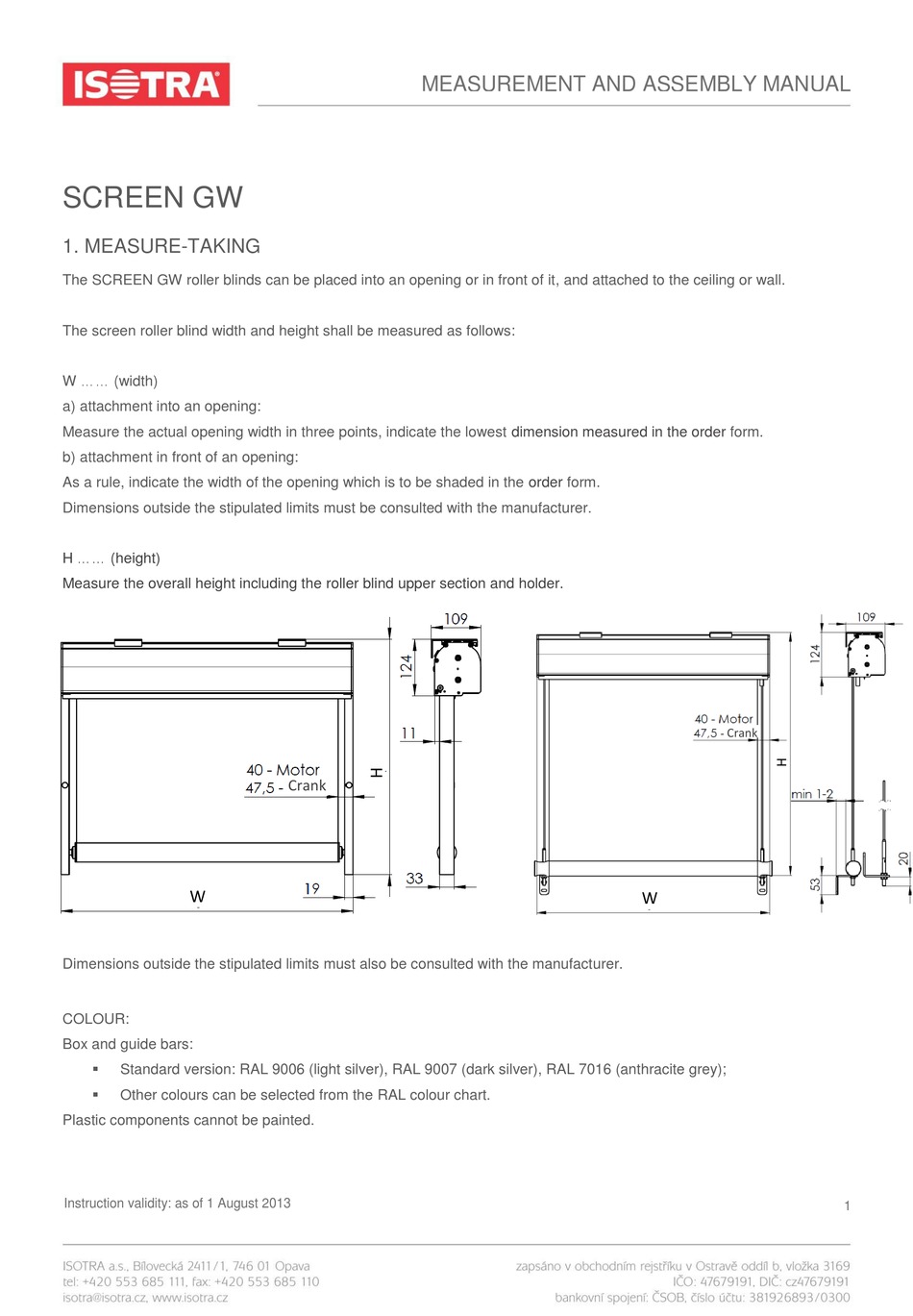

1. MEASURE-TAKING
The SCREEN GW roller blinds can be placed into an opening or in front of it, and attached to the ceiling or wall.
The screen roller blind width and height shall be measured as follows:
W ...... (width)
a) attachment into an opening:
Measure the actual opening width in three points, indicate the lowest
b) attachment in front of an opening:
As a rule, indicate the width of the opening which is to be shaded in the
Dimensions outside the stipulated limits must be consulted with the manufacturer.
H ...... (height)
Measure the overall height including the roller blind upper section and holder.
W
Dimensions outside the stipulated limits must also be consulted with the manufacturer.
COLOUR:
Box and guide bars:

Standard version: RAL 9006 (light silver), RAL 9007 (dark silver), RAL 7016 (anthracite grey);

Other colours can be selected from the RAL colour chart.
Plastic components cannot be painted.
Instruction validity: as of 1 August 2013
MEASUREMENT AND ASSEMBLY MANUAL
MEASUREMENT AND ASSEMBLY MANUAL
MEASUREMENT AND ASSEMBLY MANUAL
Crank
dimension measured in the order
order form.
W
form.
Crank
