MEASUREMENT AND ASSEMBLY MANUAL
SCREEN ZIP ECO

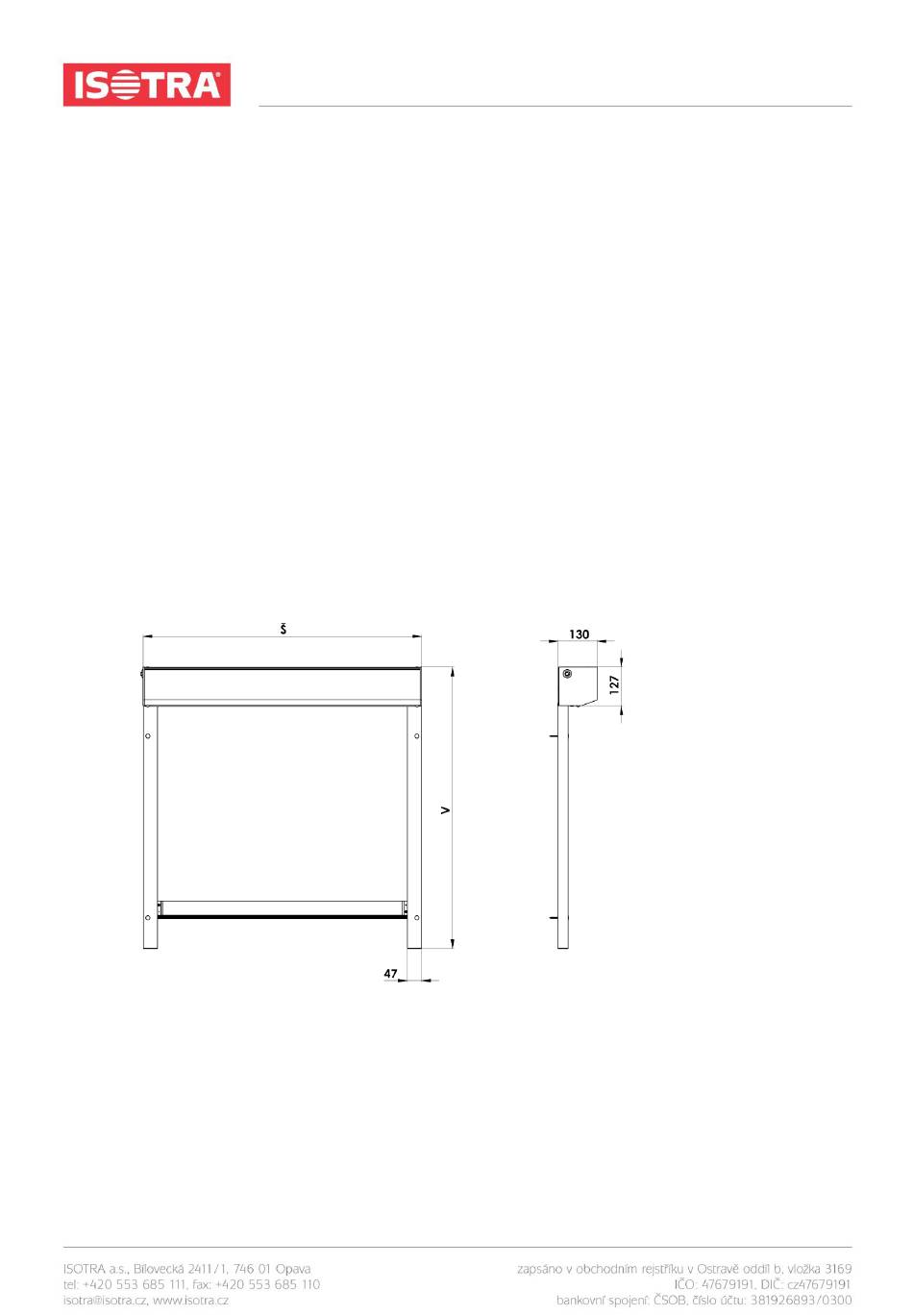

1. MEASURE-TAKING
The SCREEN ZIP ECO roller blinds can be placed into an opening or in front of it, and attached to the ceiling or wall.
The screen roller blind width and height shall be measured as follows:
W ...... (width)
a) attachment into an opening:
Measure the actual opening width in three points, indicate the lowest
dimension measured in the order
form.
b) attachment in front of an opening:
As a rule, indicate the width of the opening which is to be shaded in the
order
form + 2 x 40 mm.
Dimensions outside the stipulated limits must be consulted with the manufacturer.
H ...... (height)
Measure the overall height including the roller blind upper section
Dimensions outside the stipulated limits must also be consulted with the manufacturer.
SIDE GUIDING:
The SCREEN ZIP roller blind is equipped with a special application for the attachment of the screen fabric by the ZIP
system, allowing its perfect attachment, tension and guiding in the guide bars. Thanks to this feature the roller blind is very
stable and wind-proof.
Manual validity: 01.02.2015
1
