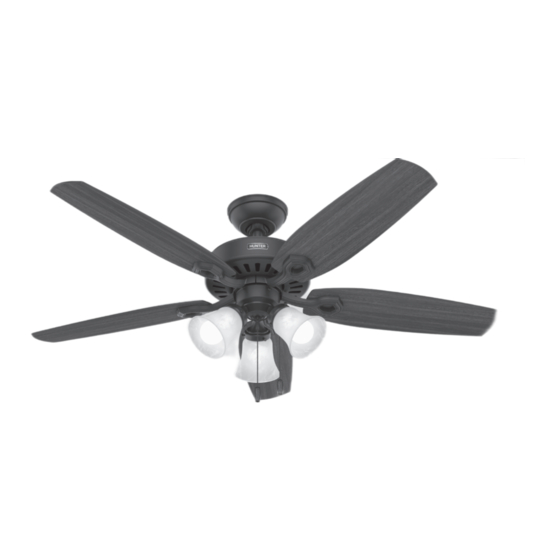

- Page 1 Builders Plus Installation Manual Model: 52729 Brushed Nickel 52732 Noble Bronze 52730 Fresh White 52731 Matte Black Fan weight ±2 lbs: 16.8 lbs (7.6 kg) ©2023 Hunter Fan Co. PG4144 r062323...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
-
Page 4: Choosing The Right Installation Location
A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. - Page 5 You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box.
-
Page 6: Hanging The Fan
1886 Installing the Downrod Follow below if you are using the downrod that came pre-assembled in your box. Need to install a longer or shorter downrod? Check out the guide at the end of this manual. DO NOT REMOVE SETSCREW COMPLETELY Back out the pre-installed setscrew so that the setscrew’s... -
Page 7: Installing The Canopy
1886 Making Connections for the Receiver and the Fan From receiver From receiver From fan From fan Connect wiring harness from ceiling Connect both wiring harnesses from fan to Connect the grounding wire plug from the bracket to the wiring harness from the the wiring harness from the receiver. -
Page 8: Installing The Blades
1886 Installing the Blades: Insert grommets found in the hardware bag into the holes in the blades, then secure each blade to a blade arm with screws found in the hardware bag. Blade Screw Grommet Repeat x5 Note: Fan style may vary. Remember the screws that you kept after removing the shipping blocks? You need... - Page 9 1886 Assembling the Light 2 of 3 1 of 3 Light Kit Screw Light Kit Screw Insert a third screw, found in the Feed the wire plug through the center hardware bag, into place and hole of the upper switch housing, then tighten all three screws.
- Page 10 1886 Installing the Pull Chains Feed the pull chains from the fan switch and the light switch down through the holes in the upper switch housing as shown. Attach the pull chain pendants to the light and fan pull chains. To adjust the fan speed, pull the chain with the fan icon and you will hear a single beep for confirmation.
-
Page 11: Troubleshooting
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. provide maintenance to the fan, or acts of God (e.g. flood). - Page 12 1886 Downrod If you need a different downrod length follow these steps: Follow steps 1-5 to remove standard downrod pipe Follow steps 6-10 to reassemble with new downrod 12” max WARNING FAN FALL HAZARD To prevent SERIOUS INJURY or DEATH: •...
