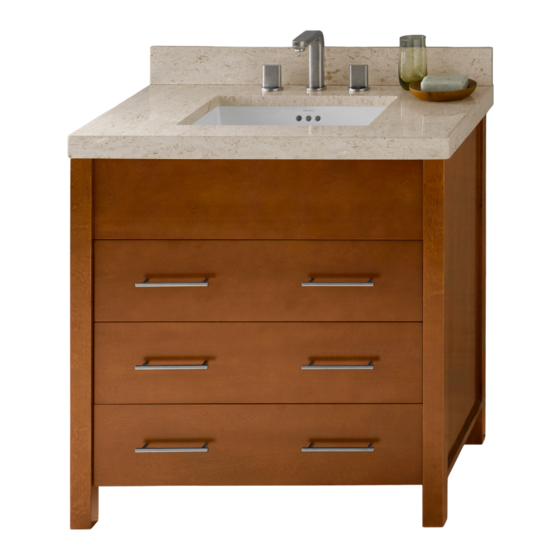

Ronbow KALI CONTEMPO 030323 Installation Sheet

KALI

23"/31"

Model:

030323

030331

Note :

For installing under counter sink with

counter top

Step 1 :

Apply adhesive caulking around the

topside of rim near the edge, Carefully

raise sink in place, align, and press firmly

See Figure 1.

Step 2 :

Attach 4 undermount-clips to hold

lavatory in place

See Figure 2.

Figure 2.

Step 3 :

Secure top & back splash to cabinet by

using adhesive caulk.

See Figure 3.

www.ronbow.com

Installation Sheet

adhesive caulking

Undermount Clip

Figure 1.

Counter top

Figure 3.

Contempo Collection

Back Splash

Table of Contents

Need help?

Do you have a question about the KALI CONTEMPO 030323 and is the answer not in the manual?

Page 1 Attach 4 undermount-clips to hold lavatory in place See Figure 2. Figure 3. Figure 2. Undermount Clip Step 3 : Secure top & back splash to cabinet by using adhesive caulk. See Figure 3. www.ronbow.com Ronbow Corporation, All Rights Reserved.
Page 2 Step 3 : Apply adhesive on wood bracket and mounting surfaces of the cabinet Figure 3. See Figure 2. Step 4 : Carefully place countertop on to the cabinet, align, and press firmly See Figure 3. www.ronbow.com Ronbow Corporation, All Rights Reserved.
Page 3 From under the drain, insert the thick rubber washer and screw on and tighten the metal nut. Remove excess Drain plumbers’ putty See Figure 3. Step 4 : Attach p-trap to tailpiece Thick rubber washer Drain Nut Tailpiece P-trap www.ronbow.com Ronbow Corporation, All Rights Reserved.

Kali contempo 030331
