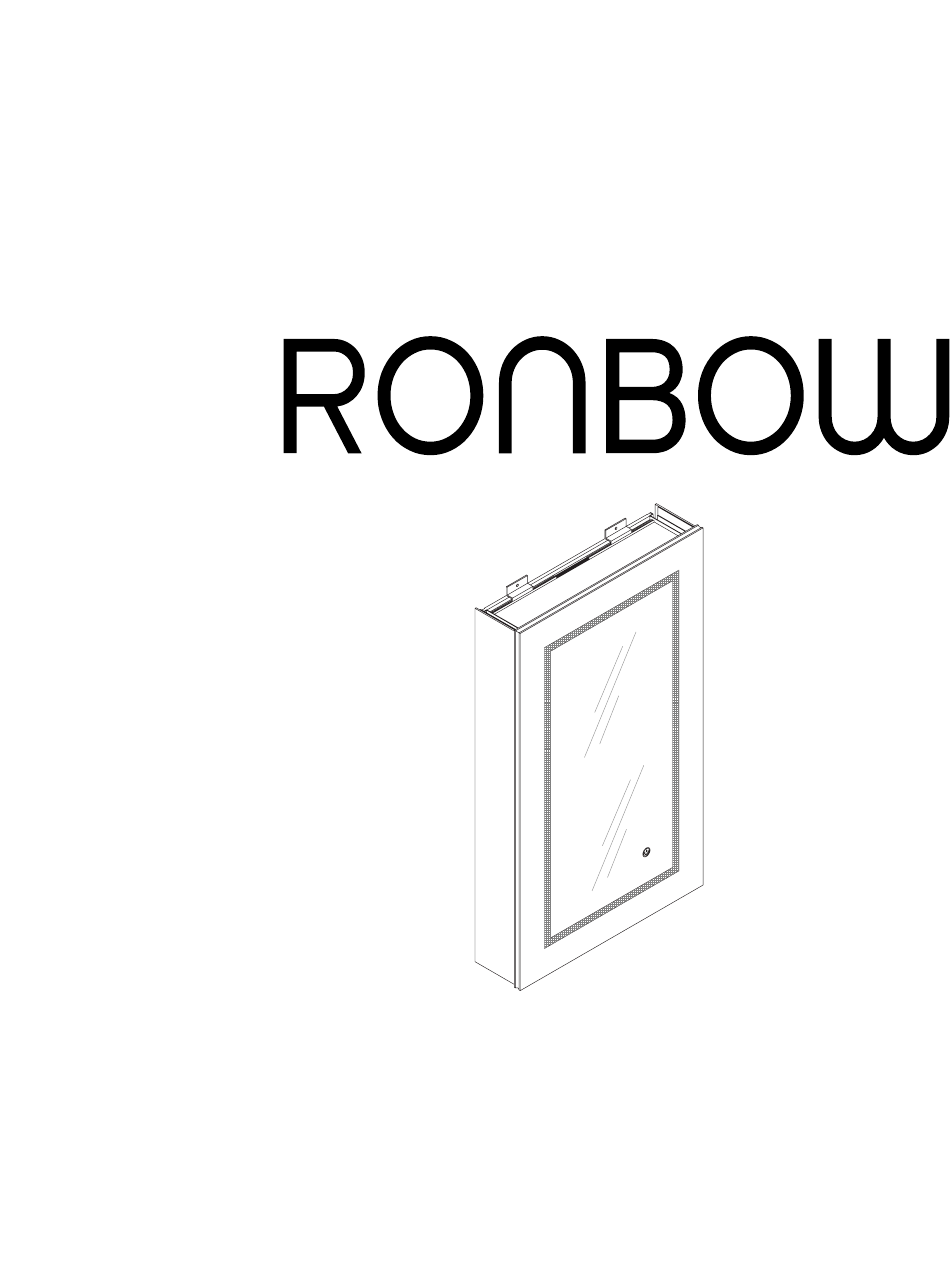

- Page 1 INSTALLATION AND CARE GUIDE MARQEE LED MEDICINE CABINET 619718-FINISH...
- Page 2 120VAC 20A GFI White = Negative White = Negative Black = Ground Black = Ground MATERIALS INCLUDED LED Medicine Cabinet small mounting bracket large mounting bracket wood screws screw covers cut out template (For recess mount) INSTALLATION SHEET ronbow.com 170728...
- Page 3 Figure 2. Measure the height of the medicine cabinet and place the 2 x 4 supporting beam on the top and bottom behind the desired location for structural support and patch up the wall. See Figure 2. INSTALLATION SHEET ronbow.com 170728...
- Page 4 Step 1: Figure 4. Place the cut out template at the desired location and cut open to create a supporting box with 2x4 supporting beam, the supporting beam should be flush with the openings. See Figure 4. INSTALLATION SHEET ronbow.com 170728...
- Page 5 Step 3: Remove the three screws from both side of the cabinet interior and remove the decorative side panel and beginning recess mount installation. See Figure 5. INSTALLATION SHEET ronbow.com 170728...
- Page 6 Step 5: For the recess installation, you may remove the 2 small mounting bracket and 1 large mounting bracket on the top. See Figure 6. INSTALLATION SHEET ronbow.com 170728...
- Page 7 Step 7: Close the electrical box and conceal the box with the screws removed. See Figure 7. Figure 8. Step 8: Connect the hinges back together to complete the installation. See Figure 8. INSTALLATION SHEET ronbow.com 170728...
- Page 8 Inward to and outward Outward See Figure 10. https://youtu.be/uToOh01OM6M Slow Close Function Figure 11. Switch the tab to turn on and off the damper for the slow close function Damper On/OFF See Figure 11. INSTALLATION SHEET ronbow.com 170728...
