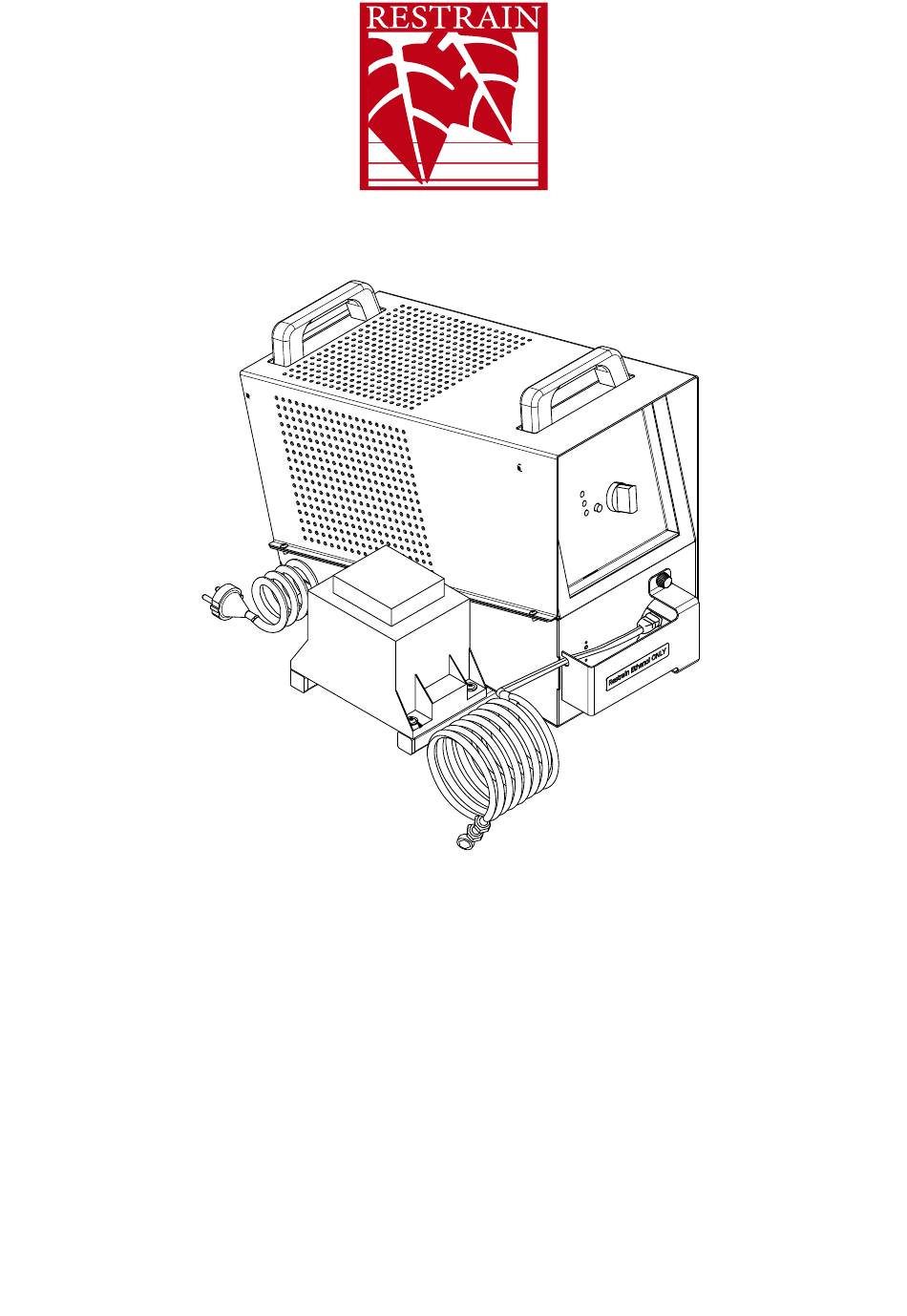

- Page 1 B100 Restrain Generator Ripen User Manual V1.0 Original user manual © Restrain 2019...
- Page 2 For information about settings, maintenance and repairs not provided for in this user manual, please contact the technical department of your supplier. This user manual has been compiled with all possible care. Restrain assumes no responsibility for any errors in this manual and/or the consequences of an erroneous interpretation of the instructions.
-
Page 3: Preface
During the lifetime of the machine, engineering improvements may result in the need to revise this manual. It is then at the discretion of Restrain, if a revision or new version of this manual is required. The following table describes the main changes for each document version of this manual. -
Page 4: Regulatory Information
Regulatory information The B100 Restrain Generator is designed to comply with the following directives: • 2014/30/EU: EMC Directive The CE Declaration is available upon request. Please contact the manufacturer. -
Page 5: Table Of Contents
3.3 General safety warnings...................... 12 4 Transport.............................13 5 Installation...........................14 5.1 Unpacking..........................14 5.2 Place the machine....................... 14 5.3 Prepare the Restrain ethanol jerrycan................. 15 6 Operation.............................16 6.1 Start the machine.........................16 6.2 Turn off the machine......................16 6.3 Emergency situations......................17 7 Maintenance and cleaning......................18 7.1 Daily checks......................... - Page 6 12.1.8 Exposure control and personal protection..............24 12.1.9 Physical and chemical properties................24 12.1.10 Stability and reactivity....................25 12.1.11 Toxicological information...................25 12.1.12 Ecological information....................25 12.1.13 Disposal considerations....................25 12.1.14 Transport information....................25 12.1.15 Regulatory information..................... 25 12.1.16 Other information......................26 12.2 Fuel COSHH assessment....................27 Restrain Contents...
-
Page 7: Introduction
Furthermore, this will void the warranty and lease contract. Contact the manufacturer if anything needs replacement. • Always use Restrain ethanol supplied by the manufacturer. The machine has been thoroughly tested with this specific ethanol. If you use any other type of ethanol, this may negatively affect the operation and life expectancy of the machine. -
Page 8: Intended Use
Width 32 cm Height 40 cm Weight 21 kg Sound emission Max. 40 dB(A) Minimum ambient temperature when in use -1 °C Maximum ambient temperature when in use 30 °C Maximum relative humidity when in use 70 % Restrain Introduction... -
Page 9: Description
Description This chapter describes the B100 Restrain Generator and its functions. Item Function Handles Use the handles to carry the machine. Programme selection knob Use the programme selection knob to select the required pump speed. Reset button Use the reset button to restart the machine after a thermal er- ror. -
Page 10: Workings Of The Machine
There are three programmes you can choose for the product you want to ripen: • A pump speed of 1.44 litres per 24 hours • A pump speed of 2.88 litres per 24 hours • A pump speed of 4.32 litres per 24 hours Restrain Description... -
Page 11: Safety
At the rear of the machine Warning sign "This side up" At the right side of the machine Text sign "Restrain Ethanol At the front of the machine ONLY" Make sure that the safety signs are always clearly recognisable and legible. Replace them if this is not the case. -
Page 12: Safety Measures
• Make sure that the machine is kept free from moisture. Water ingress in the machine may cause material damage. • The machine contains a heater that becomes very hot. When you turn off the machine, wait a minimum of 6 hours before you handle or move the machine. Restrain Safety... -
Page 13: Transport
• The machine weighs 21 kg. Always carry the machine with two hands and keep the machine upright. • Do not drop the machine. This may cause personal injury or material damage. • The machine has a cool down period of 6 hours. Turn off the machine hours before shipment. Restrain Transport... -
Page 14: Installation
Carefully open the packaging. Remove all materials from the box. Make sure that all ordered parts have been delivered: • B100 Restrain Generator Place the machine This task describes where and how to place the machine. Place the machine in the premises that needs treatment. -
Page 15: Prepare The Restrain Ethanol Jerrycan
Prepare the Restrain ethanol jerrycan This task explains how to prepare the Restrain ethanol jerrycan for use with the machine. Ethanol is extremely flammable. Do not smoke or use open fire, a radio or a mobile phone when you handle the fuel. -
Page 16: Operation
• Pump speed 2.88 litres per 24 hours • Pump speed 4.32 litres per 24 hours The Pump light turns yellow. Turn off the machine This task describes how to turn off the machine. Disconnect the machine from the mains power supply. Restrain Operation... -
Page 17: Emergency Situations
Unplug the machine from the mains power supply. For any other problem, refer to Troubleshooting on page 20. To restart the machine after an emergency situation: Plug in the mains power supply cord. The machine will continue with its programme. Restrain Operation... -
Page 18: Maintenance And Cleaning
When the machine is in use, make sure that all covers are properly secured. Cleaning Regularly clean the machine with a clean, soft and moist cloth. Do not spray the machine with water or immerse the machine in water. This will permanently damage the machine. Restrain Maintenance and cleaning... -
Page 19: Storage
Let the machine cool down for 6 hours. Remove the tube from the ethanol jerrycan. Store or dispose of the ethanol according to local laws and regulations. Also refer to the Material Safety Data Sheets on page 23. Store the machine indoors. Restrain Storage... -
Page 20: Troubleshooting
Wait 1 hour, then push the Re- red and the heater has turned catalyst reached the upper lim- set button. After approxim- off. ately 40 minutes the catalyst is warmed up and the machine will continue with the selected programme. Restrain Troubleshooting... -
Page 21: End Of The Lease Contract
Do not return ethanol to the manufacturer. Ethanol is highly explosive and can only be shipped under specific conditions. Pack the machine in its original packaging. Contact the manufacturer for the return shipment of the machine. Restrain End of the lease contract... -
Page 22: Disposal
Disposal Never dispose of the machine yourself. Always return the machine to the manufacturer. Always dispose of ethanol correctly. Refer to the Material Safety Data Sheets on page 23 for correct disposal of ethanol. Restrain Disposal... -
Page 23: Appendices
Identification of the substance Trade Name: Restrain Ethanol Product Trivial Ethyl Alcohol Name: Chemical name: Ethanol Identification of the company Restrain NL bv Minervum 7030 4817 ZL Breda The Netherlands 12.1.2 Composition CAS No : 64-17-5 200 EC No: 578-6 12.1.3... -
Page 24: Fire-Fighting Measures
12.1.7 Handling and storage Keep the Restrain Ethanol away from all sources of heat and ignition. Wear chemical resistive gloves and chemical safety goggles. Protective clothing should be worn as required. Store in a dry, locked storage area not subject to extremes of temperature. -
Page 25: Stability And Reactivity
The product is classified in accordance with the Chemicals (Hazard Information and Packaging for Supply) Regulations (CHIP 3). Highly Flammable Safety: S(1/2) Keep locked up and out of reach of children. Keep away from sources of ignition - No Smoking Restrain Appendices... -
Page 26: Other Information
Restrain Ethanol should always be stored in conditions appropriate to a highly flammable liquid. Up to 50 litres of Restrain fuel may be kept in a working area in a suitable bin or cupboard that is of fire resisting structure, and is designed to retain spills and marked highly flammable. -
Page 27: Fuel Coshh Assessment
12.2 Fuel COSHH assessment Activity Handling Restrain Ethanol containers. Reason For Activity To maintain a stable atmosphere of ethylene in a store. Status Of the Person doing the activity Store Manager Product Restrain Ethanol Hazard Identification Highly Flammable Harmful Risk Assessment Causes eye irritation. - Page 28 Use sand or vermiculite to absorb the liquid. Place used absorbent materials in closed containers for disposal. Disposal of containers Containers should be pierced and placed in appropriate waste disposal. Restrain Appendices...
- Page 29 Restrain NL bv Minervum 7030 4817 ZL Breda +31 (0)653 86 92 21 www.restrain.eu.com dirk.garos@restrain.eu.com...
