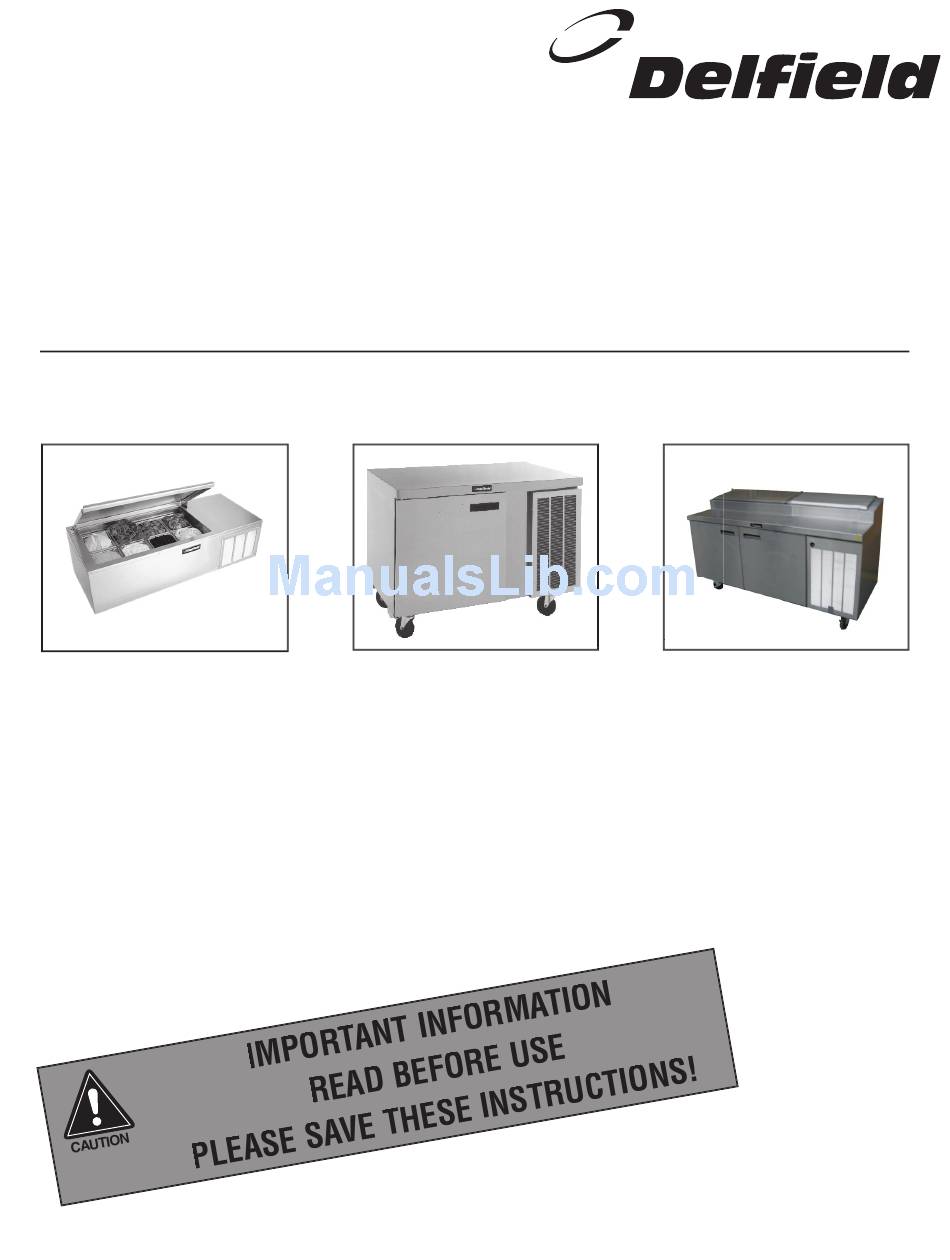

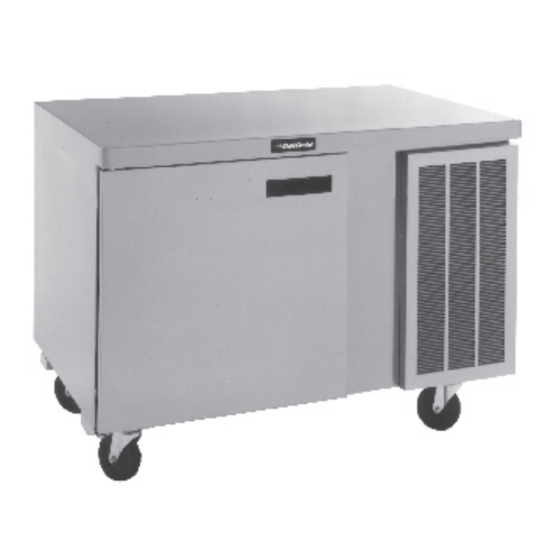

- Page 1 18000 Series and CTP-NB Service and Installation Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately. See page 3. CTP-NB Countertop Condiment Rail 18000-BUC Work Tables 18000-PTB Pizza Tables with Raised Rail Effective May 2003...
-
Page 2: Table Of Contents
Always have the serial number of your unit available when calling for parts or service. A complete list of authorized Delfield parts depots is shown on the back cover of this manual. ©2003 The Delfield Company. All rights reserved. Reproduction without written permission is prohibited. -
Page 3: Electrical Connection
For the most efficient refrigeration, be sure to provide good air circulation inside and out. Inside cabinet: Do not pack refrigerator so full that air cannot circulate. Outside cabinet: Be sure that the unit has access to ample air. -
Page 4: Operation 18000 Ptb Series
A minimum of one hour of off time per day with the pans OPERATION: 18000 BUC SERIES After turning the ON/OFF switch to ON, the units compressor will begin operating. Delfield refrigerated bases are designed to maintain an operational temperature of 36°F to 40°F. OPERATION: CTP-NB SERIES The unit is equipped with one on/off switch located on the right end of the unit. -
Page 5: Pressure Control Settings
COLDER near the knob, with an arrow to indicate the adjustment direction. These controls are field adjustable and do not require a service agent. If you have any questions, feel free to contact the Delfield Service Department. In attempting to adjust the pressure control, you can do damage to your unit by accidentally adjusting the differential. -
Page 6: Wiring Diagram 18000 Ptb Series
18000 and CTP-NB Series Service and Installation Manual WIRING DIAGRAM - 18000 PTB SERIES ON/OFF SWITCH PRESSURE CONTROL BASE SWITCH RAIL For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com ON 115 VOLT MODELS ONLY L2 IS THE NEUTRAL CONDENSING UNIT EVAPORATOR FAN(S) T'STAT... - Page 7 WIRING DIAGRAM - 18000 BUC SERIES POWER SWITCH BASE COIL 1 BASE COIL 2 (where used) PRESSURE SWITCH CONTROLS ONLY THE CONDENSING UNIT WIRING DIAGRAM - CTP-NB SERIES POWER SWITCH TEMPERATURE CONTROLS THE CONDENSING UNIT 18000 and CTP-NB Series Service and Installation Manual CONDENSING UNIT CONDENSING UNIT For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com...
-
Page 8: 18000 Buc Series
18000 and CTP-NB Series Service and Installation Manual REFRIGERATION SYSTEM- 18000 PTB SERIES EVAPORATOR COIL THERMOSTAT SOLENOID VALVE EXPANSION VALVE REFRIGERATION SYSTEM- 18000 BUC SERIES EVAPORATOR COIL EXPANSION VALVE EXPANSION VALVE For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com EVAPORATOR COIL COIL... -
Page 9: Ctp-Nb Series
18000 and CTP-NB Series Service and Installation Manual REFRIGERATION SYSTEM- CTP-NB SERIES WRAPPED RAIL THERMOSTAT TUBE FOR THERMOSTAT BULB CONDENSING UNIT ON/OFF SWITCH For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com... -
Page 10: Parts Replacement List
18000 and CTP-NB Series Service and Installation Manual PARTS REPLACEMENT LIST PART # DESCRIPTION 3526747 Condensing unit 1/5 HP 3526745 Condensing unit 1/4 HP 115v. 404A 3526746 Condensing unit 1/3 HP 115v. 404A 3526731 Condensing unit 1/2 HP 115v. 404A 3526732 Condensing unit 3/4 HP 115v 404A 3516101... - Page 11 STANDARD LABOR GUIDELINES TO REPAIR OR REPLACE PARTS ON DELFIELD EQUIPMENT Advice and recommendations given by Delfield Service Technicians do not constitute or guarantee any special coverage. • A maximum of 1-hour is allowed to diagnose a defective component. • A maximum of 1-hour is allowed for retrieval of parts not in stock.
- Page 12 OR ANY OF ITS AUTHORIZED SERVICE CENTERS AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, DELFIELD AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE...
- Page 13 ADDITIONAL FOUR YEAR PROTECTION PLAN Delfield Model# Serial # In addition to the Standard One Year Warranty on the Motor- Compressor contained in the above listed Delfield product (the “Unit”), The Delfield Company (“Delfield”) also agrees to repair, or exchange with similar or interchangeable parts in design and capacity at Delfield’s option, the defective Motor-Compressor contained in the Unit (the “Motor-Compressor), or any part thereof, for the Original Purchaser only, at any time during the four (4) years following the...
- Page 14 18000 and CTP-NB Series Service and Installation Manual NOTES: For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com...
- Page 15 18000 and CTP-NB Series Service and Installation Manual NOTES: For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com...
-
Page 16: Authorized Parts Depots
980 S. Isabella Rd., Mt. Pleasant, MI 48804-0470, U.S.A. • (989) 773-7981 or (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com Delfield reserves the right to make changes in design or specifications without prior notice. 2003 The Delfield Company. All rights reserved. Printed in the U.S.A.
