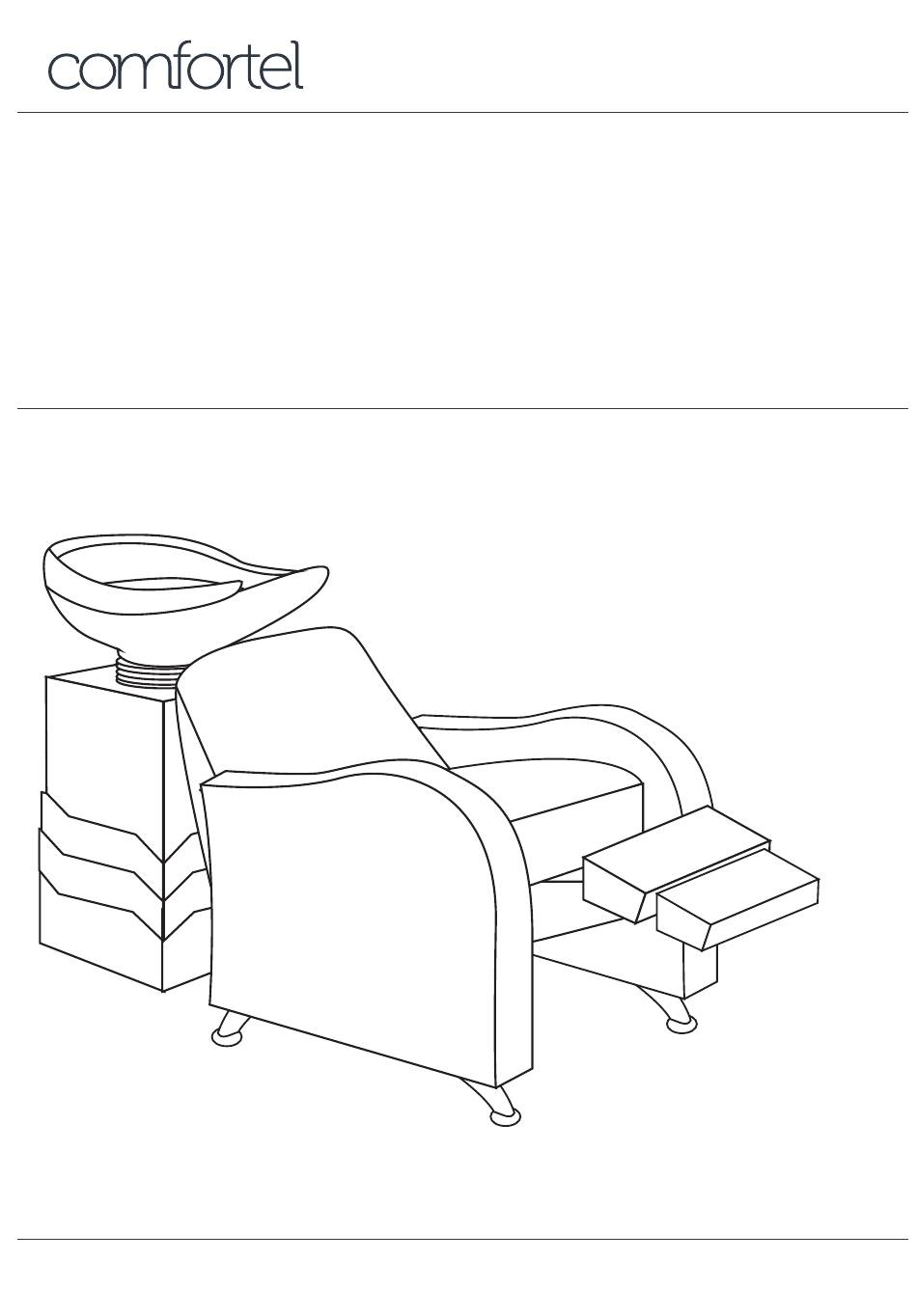

- Page 1 II washlounge #1538 CASSANDRA II comfortel.com.au...
-
Page 2: Get Started
IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS Listed below are essential safety precautions: ELECTRICAL APPLIANCES 1. All GPO’s must be installed by a qualified Electrician in GENERAL SAFETY accordance with local electrical standards. 1. Read carefully and keep these instructions in a safe place. 2. - Page 3 POSITIONING: BASIN STAND OPTION DIAGRAM A Wall 1030 2030 If washing from rear of stand, add extra distance of 400mm from wall. 3200 DIAGRAM B GPO for massage If washing from side add 400mm between each chair. All measurements are in mm. PLUMBING ACCESS OPTIONS ELECTRICAL ACCESS FOR RECLINE AND MASSAGE Determine the best way to connect plumbing...
- Page 4 Position Diagram, where 2 x Basin Bench Doubles are installed next to each other. Basin Bench Kit is recommended for situations requiring washing from behind when the plumbing is not through the floor. For more information about the product go to www.comfortel.com.au.
- Page 5 INSTALLATION & ASSEMBLY: BASIN STAND OPTION DIAGRAM E BEFORE INSTALLING YOU SHOULD CONSIDER THE FOLLOWING: Allow for the necessary room around the unit for free movement. • If installing against a wall, a minimum distance of 80mm between wall and bottom back of stand is required to allow free backward movement of basin.
- Page 6 Bench Kit Frame Flexible Waste Pipe IMPORTANT IMPORTANT GPO’S MUST BE INSTALLED BY A QUALIFIED Comfortel Furniture Pty Ltd ABN 60 300 719 042 ALL PLUMBING MUST BE COMPLETED www.comfortel.com.au ELECTRICIAN IN ACCORDANCE WITH BY A LICENSED PLUMBER Victoria (Head Office)
- Page 7 INSTALLATION & ASSEMBLY: CHAIR TO BASIN STAND Connector DIAGRAM G INSTALL CHAIR TO BASIN STAND • Fix Connector to stand front using two bolts and nuts provided. INSTALLATION & ASSEMBLY: CHAIR TO BASIN BENCH Connector DIAGRAM H INSTALL CHAIR TO BASIN BENCH •...
-
Page 8: Maintenance
Comfortel Furniture Pty Ltd. #1538 CASSANDRA II WASH LOUNGE Comfortel Furniture Pty Ltd. assumes no responsibility for any errors that may appear in this document nor does it make expressed or implied warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
