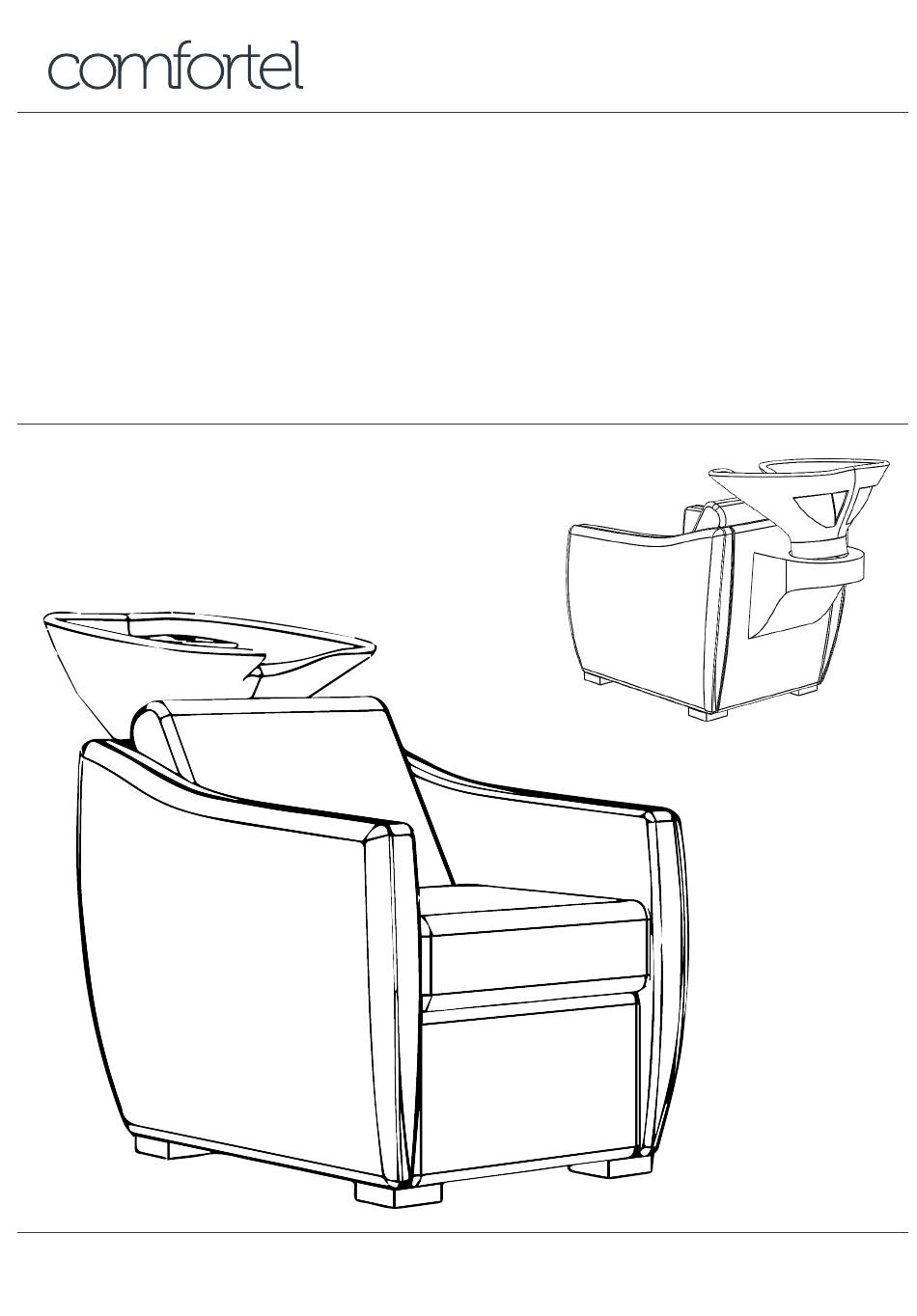

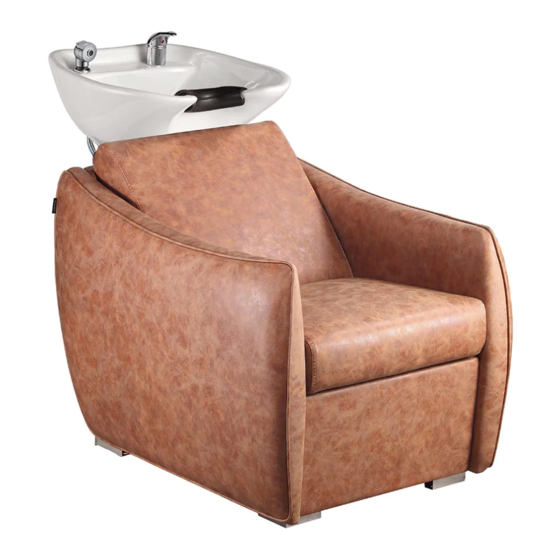

- Page 1 #1164 HAZEL TAN II #1170 HAZEL BLACK help.comfortel.com.au...
- Page 2 IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS GENERAL SAFETY IMPORTANT 1. Read carefully and keep these instructions in a safe place. ALL PLUMBING MUST BE COMPLETED 2. Use this product only for its intended function and BY A LICENSED PLUMBER do not use attachments not recommended by the manufacturer.
- Page 3 POSITIONING Wall DIAGRAM A (5.1”) (4.7”) (3.5) (5.9) (3.5) (3.15”) 1240 (48.8”) (52”) 1320 If washing from behind, add a minimum of 400mm (15.75") of space behind your wash lounge to provide room for access. DIAGRAM B 3200 (126”) (15.75”) (31.5”) (31.5”) (31.5”)
- Page 4 GET STARTED BEFORE INSTALLATION SECURE AND BOLT DOWN LIFT SEAT UP THE WASH LOUNGE MUST BE SECURED TO THE FLOOR. Making sure your wash lounge is supported from behind, remove the back panel by unscrewing the two screws located on the left and right of the access panel.
- Page 5 INSTALLATION & ASSEMBLY: BASIN DIAGRAM D BASIN ASSEMBLY Opening at back of chair Steel frame Bolts (supplied) Stainless steel cover Ceramic basin INSTALLING BASIN · Undo bolts and remove steel frame from the opening of the back of chair. · Flip steel frame over and re-bolt onto the inside of the chair using bolts supplied.
- Page 6 ASSEMBLY DIAGRAM C WASHLOUNGE ASSEMBLY Washlounge MUST be secured to the floor. BASIN ASSEMBLY 2. Install Flick Mixer using O-ring, plastic and metal washers & (Long Nut) and Shower Head using the BASIN ASSEMBLY Showerhose Basin Collar, O-ring, Foam Washer & Plastic Nut as indicated.
- Page 7 Damaged and broken parts should be replaced and loose fasteners tightened. All maintenance to be carried out by a suitably qualified tradesperson. HOW TO CHANGE A SHOWERHEAD Please view our online video on how to change a showerhead: www.comfortel.com.au/service-support/troubleshooting-videos/...
- Page 8 #1164 HAZEL TAN WASHLOUNGE #1170 HAZEL BLACK WASHLOUNGE Comfortel Furniture Pty Ltd. assumes no responsibility for any errors that may appear in this document nor does it make expressed or implied warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
