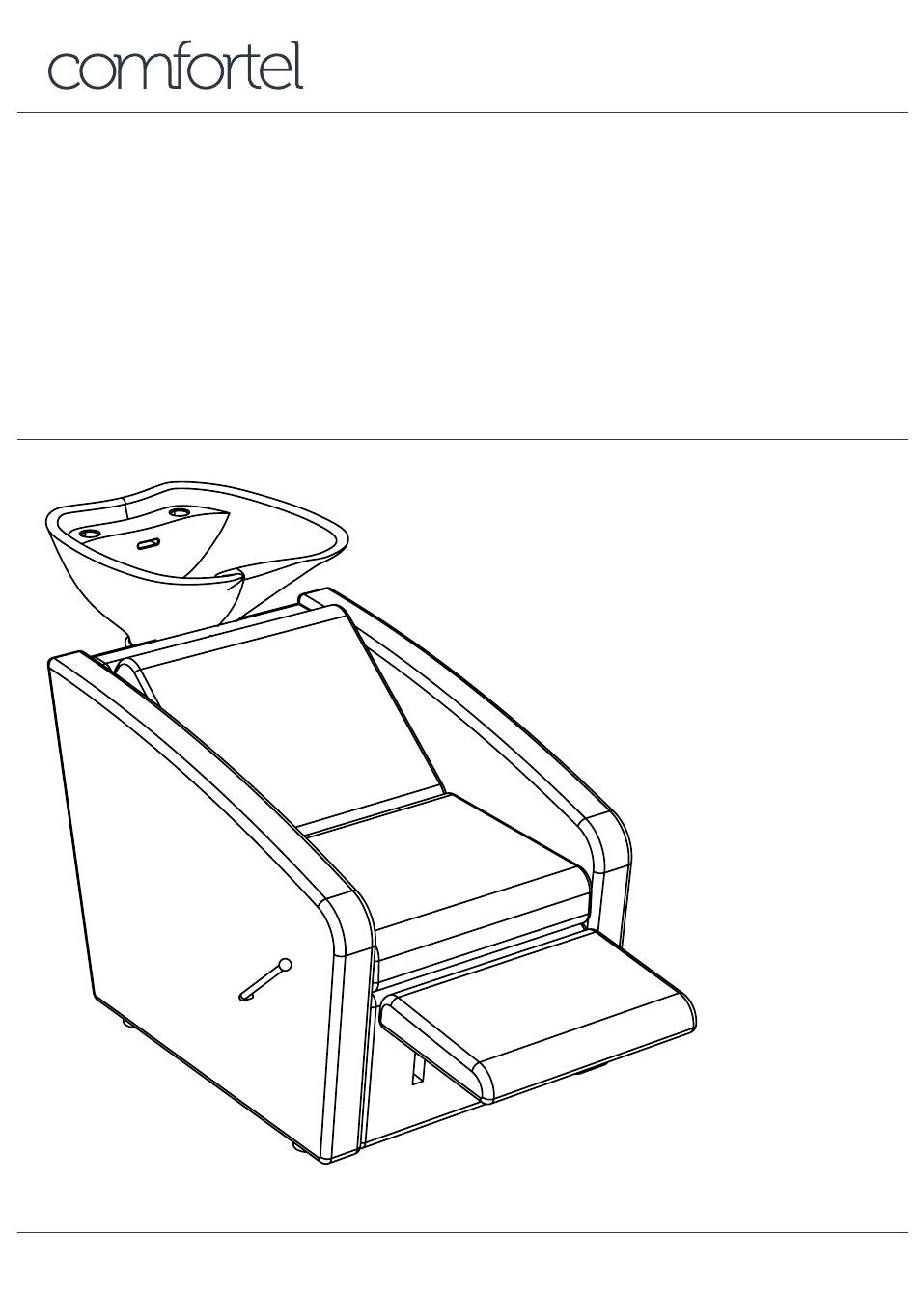

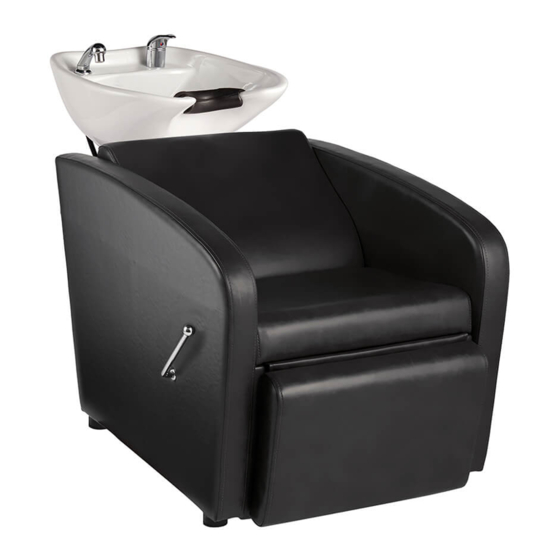

- Page 1 #2441 DUSTY (WHITE BASIN) #2442 DUSTY (BLACK BASIN) help.comfortel.com.au...
- Page 2 IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS GENERAL SAFETY IMPORTANT 1. Read carefully and keep these instructions in a safe place. ALL PLUMBING MUST BE COMPLETED 2. Use this product only for its intended function and BY A LICENSED PLUMBER do not use attachments not recommended by the manufacturer.
- Page 3 GET STARTED BEFORE INSTALLATION SECURE AND BOLT DOWN LIFT BACK REST UP THE WASHLOUNGE MUST BE SECURED TO THE FLOOR. Making sure your wash lounge is supported, lift and remove the back seat. Secure to the floor through connector brackets using appropiate fixings (not supplied).
- Page 4 POSITIONING DIAGRAM A Wall 1380 1460 If washing from behind, add a minimum of 400mm of space behind your wash lounge to provide room for access. DIAGRAM B 3200 (126”) (15.75”) (31.5”) (31.5”) (31.5”) (15.75”) (2”) (4”) (4”) (4”) (2”) (27.5”) (27.5”) (27.5”)
- Page 5 ASSEMBLY DIAGRAM C WASHLOUNGE ASSEMBLY Washlounge MUST be secured to the floor. Secure to the floor using appropiate fixings (not supplied). BASIN ASSEMBLY 2. Install Flick Mixer using O-ring, plastic and metal washers & (Long Nut) and Shower Head using the Showerhose Basin Collar, O-ring, Foam Washer &...
- Page 6 INSTALLATION & ASSEMBLY: BASIN DIAGRAM D IMPORTANT PLEASE MAKE SURE THERE IS BASIN ASSEMBLY SUPPORT AT THE BACK OF THE WASH Stainless steel cover LOUNGE WHERE THE WASH BASINS Bolts (supplied) ARE LOCATED, AS ONCE THE SEAT CUSHION IS REMOVED - THE UNIT Ceramic basin COULD TILT BACKWARDS.
- Page 7 Damaged and broken parts should be replaced and loose fasteners tightened. All maintenance to be carried out by a suitably qualified tradesperson. HOW TO CHANGE A SHOWERHEAD or SHOWERHOSE Please view our online video on how to change a showerhead or showerhose: help.comfortel.com.au...
- Page 8 #2441 DUSTY WASHLOUNGE (WHITE BASIN) #2442 DUSTY WASHLOUNGE (BLACK BASIN) Comfortel Furniture Pty Ltd. assumes no responsibility for any errors that may appear in this document nor does it make expressed or implied warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
