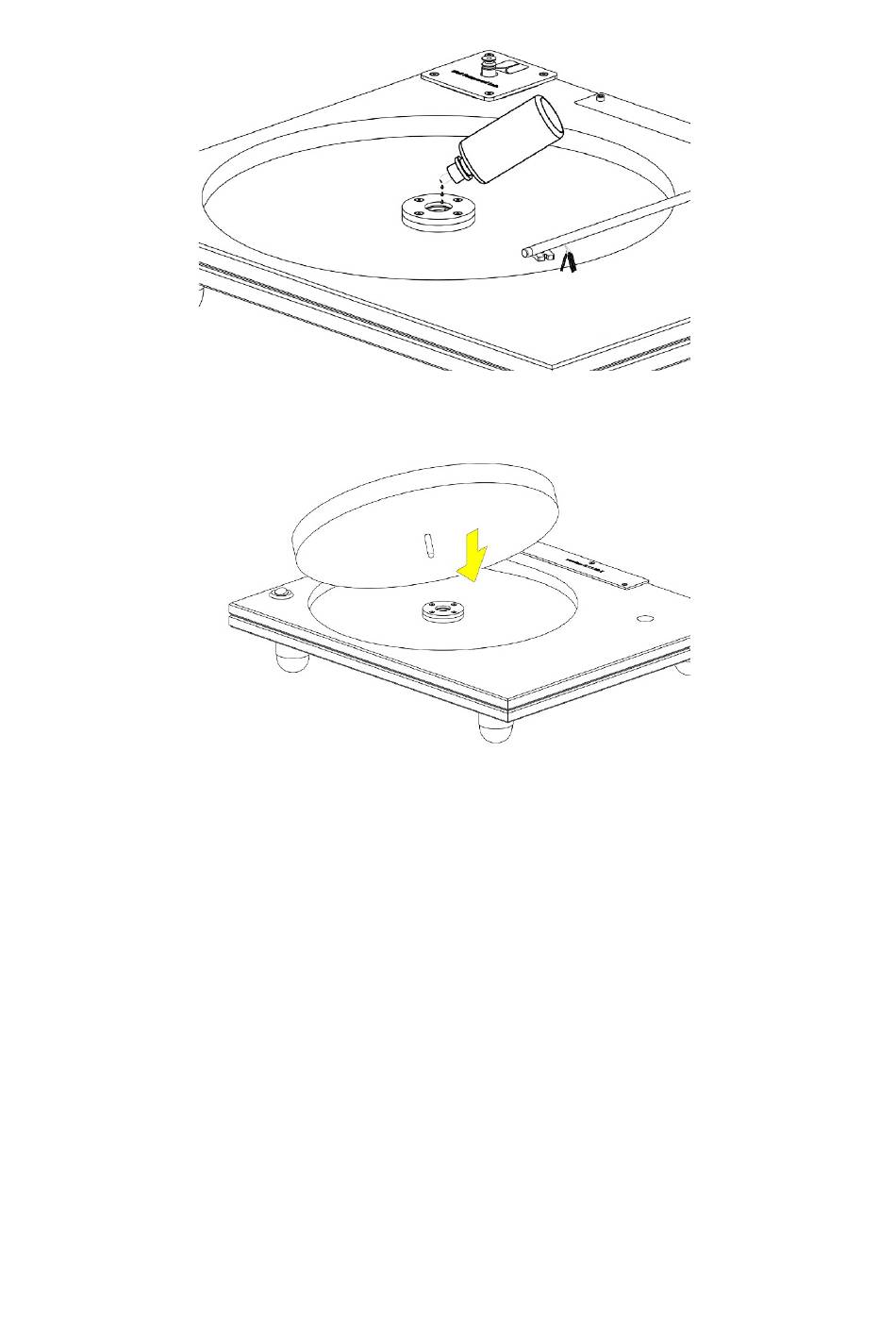

Fig (2)
Fig (3)

Speed Control

Speed change is effected by manual movement of the belt on the pulley. 33.5 RPM on the small diameter step on the pulley, 45
RPM on the larger diameter step on the pulley.

Installing the Belt

Start with the belt around the motor pulley, take care the other end clears the centre spindle and rotate the platter, the belt will track
around the platter. See Fig (4). Well Tempered Lab belts if dropped are easily misplaced, we give you two but suggest you place the
belt on something dark to make it easily seen.
4
