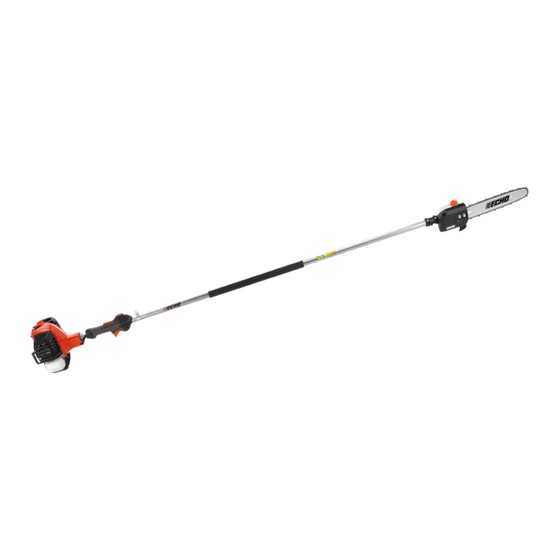

Echo Power Pruner PPF-2620 Operator's Manual
  1. Manuals
  2. Brands
  3. Echo Manuals
  4. Saw
  5. Power Pruner PPF-2620
  6. Operator's manual

Echo Power Pruner PPF-2620 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Power Pruner
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Read and understand all provided literature before
use. Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-2/NMB-2.
X7507820501
©11/19 ECHO Incorporated
Operator's
Manual
PPF-2620
TM

Advertisement

Table of Contents
loading

Related Manuals for Echo Power Pruner PPF-2620

Summary of Contents for Echo Power Pruner PPF-2620

  • Page 1 State of California to cause cancer, birth defects, or other reproductive harm. Read and understand all provided literature before use. Failure to do so could result in serious injury. Note: This product complies with CAN ICES-2/NMB-2. X7507820501 ©11/19 ECHO Incorporated...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ....................4 Servicing Information .................. 4 Parts/Serial Number................4 Service ....................5 ECHO Consumer Product Support ............5 Product Registration ................5 Additional Literature ................5 Safety ......................6 Manual Safety Symbols and Important Information ......6 International Symbols ................
  • Page 3 PPF-2620 TABLE OF CONTENTS Storage ..................... 49 Long Term Storage (Over 30 Days) ..........49 Specifications ................... 50 Product Registration ................. 52 Notes ....................... 54 X7507820501 ©11/19 ECHO Incorporated...

  • Page 4: Introduction

    SERVICING INFORMATION Parts/Serial Number Genuine ECHO Parts and Assemblies for your ECHO products are available only from an Authorized ECHO Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you. For future reference write them in the space provided below.

  • Page 5: Service

    Register your ECHO equipment on-line at www.echo-usa.com or by filling out the product registration sheet included in this manual. Registering your product confirms warranty coverage and provides a direct link to ECHO if we find it necessary to contact you.

  • Page 6: Safety

    Note: This enclosed message provides tips for use, care and maintenance of the unit. CIRCLE AND SLASH SYMBOL This symbol means the specific action shown is prohibited. Ignoring these prohibitions can result in serious or fatal injury. X7507820501 ©11/19 ECHO Incorporated...

  • Page 7: International Symbols

    15 m (50 ft.) from electrical hazard. Avoid all power lines. This unit is not insulated Plan retreat path from against electrical falling objects. current. DO NOT Allow Flames Ignition ON / OFF or Sparks Near Fuel X7507820501 ©11/19 ECHO Incorporated...
  • Page 8 Choke Control “RUN” START” Position (Choke Position (Choke Open) Closed) Chain Lubrication Wear Slip Resistant Footwear Do not operate closer Keep bystanders at least than 15 m (50 ft.) from 15 m (50 ft.) away. electrical hazards. X7507820501 ©11/19 ECHO Incorporated...

  • Page 9: Personal Condition And Safety Equipment

    Eye protection that meets ANSI Z87.1 or CE requirements ◆ must be worn whenever you operate the unit. For additional safety, a full-face shield may be worn over ◆ safety glasses or goggles to provide protection from sharp branches or flying debris. X7507820501 ©11/19 ECHO Incorporated...
  • Page 10 Hearing/Ear Protection ECHO recommends wearing personal protection whenever unit is used. Breathing Protection Operators who are sensitive to dust or other common airborne allergens may need to wear a dust mask to prevent inhaling these materials while operating unit.
  • Page 11 To reduce the risk of serious or fatal injury, persons with pacemakers should consult with their physician and the pacemaker manufacturer before operating this machine. In the absence of such information, ECHO does not recommend the use of this machine by anyone who has a pacemaker.
  • Page 12 Never touch wires directly or indirectly, otherwise serious injury or death may result. Do not operate this product indoors or in inadequately ventilated areas. Engine exhaust contains poisonous emissions and can cause serious injury or death. X7507820501 ©11/19 ECHO Incorporated...
  • Page 13 • Turn the Power Pruner off when moving from tree to tree. • Avoid any contact with saw chain.. Avoid Hot Surfaces • Keep exhaust area clear of flammable debris. Avoid contact during and immediately after operation. X7507820501 ©11/19 ECHO Incorporated...

  • Page 14: Kickback

    Cut only wood. Avoid striking concrete, metal, wire, or other obstructions which could cause kickback or damage to the saw chain. If the saw chain does strike a foreign object, immediately stop the engine, inspect and repair the Power Pruner if necessary. X7507820501 ©11/19 ECHO Incorporated...

  • Page 15: Equipment

    PPF-2620 SAFETY Equipment Use only ECHO attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO.

  • Page 16: Emission Control (Exhaust & Evaporative)

    The 50 or 300 hour emission compliance period is the time span selected by the manufacturer certifying the engine emissions output meets applicable emissions regulations, provided that approved maintenance procedures are followed as listed in the Maintenance Section of this manual. X7507820501 ©11/19 ECHO Incorporated...

  • Page 17: Description

    Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. The safety label is for example only. Your label may appear slightly different.
  • Page 18 12. Power Head 13. Choke 14. Air Cleaner 15. Purge Bulb 16. Spark Plug 17. Top Guard 18. Recoil Starter Handle 19. Spark Arrestor Muffler Or Spark Arrestor Muffler With Catalyst 20. Fuel Tank Cap 21. Fuel Tank X7507820501 ©11/19 ECHO Incorporated...

  • Page 19: Contents

    Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. Power Head / Drive Shaft Assembly Cutting Attachment with Guide Bar &...

  • Page 20: Assembly

    Insert locator screw (B) into hole (C) and tighten to snug. Tighten bolts (A), clamping the cutting attachment onto the housing. X7507820501 ©11/19 ECHO Incorporated...

  • Page 21: Saw Chain Adjustment

    Tighten both guide bar nuts with nose held up. Tighten rear nut first.. Pull the chain around the guide bar by hand. Reduce the chain tension if you feel tight spots. When chain is properly tensioned, tighten guide bar nuts securely. X7507820501 ©11/19 ECHO Incorporated...

  • Page 22: Operation

    Metal cutters can also create sparks if the cutter strikes rocks, metal, or other hard objects. Contact local fire authorities for laws or regulations regarding fire prevention requirements. X7507820501 ©11/19 ECHO Incorporated...

  • Page 23: Fuel

    2-stroke and 2/4-stroke hybrid engines. Two Stroke Oil - A two-stroke engine oil, such as ECHO branded 2-stroke oils, meeting ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FD Standards must be used. ECHO branded 2-stroke oils meet these standards. Engine problems due to inadequate lubrication caused by failure to use an ISO-L- EGD (ISO/CD 13738) and J.A.S.O.
  • Page 24 AVOID inhaling oil mists or vapors. ◆ ECHO branded 2-stroke oils may be mixed at 50:1 ratio for application in all ECHO engines sold in the past regardless of ratio specified in those manuals. Handling Fuel Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result.
  • Page 25 90 days when a fuel stabilizer is added. Stored two-stroke fuel may separate. ALWAYS shake fuel container thoroughly before each use. Used oil and gasoline, and soiled towels are hazardous waste materials. Disposal laws vary by locality. X7507820501 ©11/19 ECHO Incorporated...

  • Page 26: Lubricating The Guide Bar And Saw Chain

    If oil is leaking from the bar cover area, reduce the oil discharge volume. Refill the oil reservoir with each tank of fuel. Note: Very little visible oil on the saw chain will provide sufficient lubrication. X7507820501 ©11/19 ECHO Incorporated...

  • Page 27: Starting Cold Engine

    Firmly grasp throttle handle and throttle trigger lockout with left hand and fully depress throttle trigger to wide open position. Rapidly pull recoil starter handle/rope (D) until engine fires (or maximum five [5] pulls). X7507820501 ©11/19 ECHO Incorporated...

  • Page 28: Starting Warm Engine

    The attachment should not move at idle, otherwise serious personal injury may result. Note: If attachment moves, readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer. Stop Switch Move stop switch button (A) forward away from the STOP position.

  • Page 29: Stopping Engine

    STOP position. If engine does not stop when stop switch is moved to STOP position, close choke - COLD START position - to stall engine. Have your ECHO dealer repair stop switch before using unit again. X7507820501 ©11/19 ECHO Incorporated...

  • Page 30: Pruning Techniques

    • Plan retreat path from falling branch. Cut branches bounce when striking ground. • Long branches should be removed in several pieces. • Do not stand directly beneath Guide against branch. branch being cut. X7507820501 ©11/19 ECHO Incorporated...
  • Page 31 (4 in.) diameter or larger cut as follows: 1. Under cut 1/4 limb diameter near tree trunk. 2. Finish top cut slightly farther out on limb. 3. Flush cut stub at trunk. • DO NOT use for felling or bucking. X7507820501 ©11/19 ECHO Incorporated...

  • Page 32: Maintenance

    Level 1 = Easy to do. Common tools may be required. Level 2 = Moderate difficulty. Some specialized tools may be required. Level 3 = See your dealer. Click HERE or go to http://www.echo-usa.com/products/maintenance-kit HERE https://www.shindaiwa-usa.com/you-can.aspx For information about maintenance kits.

  • Page 33: Maintenance Intervals

    Fuel Cap Gasket Replace * IMPORTANT NOTE - Time intervals shown are maximum. Actual use and your experience will determine the frequency of required maintenance. MAINTENANCE PROCEDURE NOTES: 1 Apply lithium based grease every 25 hours of use. X7507820501 ©11/19 ECHO Incorporated...

  • Page 34: Air Filter

    Allow to dry completely before reuse. Do not oil. Air Filter • Lightly brush debris from filter. Replace filter if it is damaged, fuel soaked, very dirty, or the rubber sealing edges are deformed. Assemble components in reverse order. X7507820501 ©11/19 ECHO Incorporated...

  • Page 35: Fuel Filter

    Pinch the fuel filter with the fingers on one hand and the fuel line with the other hand. Pull and twist slightly to separate. Install the new fuel filter with the reverse action. X7507820501 ©11/19 ECHO Incorporated...

  • Page 36: Spark Plug

    Clean the plug or replace with a new one. DO NOT sand blast to clean. Remaining sand will damage engine. 0.65 mm (0.026 in.) Adjust spark plug gap by bending outer electrode. Tighten spark plug to 102-153 kgf•cm (89-133 in•lbf). X7507820501 ©11/19 ECHO Incorporated...

  • Page 37: Cooling System

    “Normal Maintenance”. Any failure attributed to lack of maintenance is not covered by the warranty. Remove spark plug lead. Remove muffler cover (A). Remove engine cover (B). DO NOT use a metal scraper to remove dirt from the cylinder fins. X7507820501 ©11/19 ECHO Incorporated...

  • Page 38: Exhaust System

    Clean carbon deposits from muffler components. Note: When cleaning carbon deposit, be careful not to damage the catalytic element inside muffler. Replace screen if it is cracked, plugged, or has holes burned through. Assemble components in reverse order. X7507820501 ©11/19 ECHO Incorporated...
  • Page 39 Tighten muffler mounting bolts (or nuts) to 90-110 kgf•cm (80-95 in•lbf). Install muffler cover and attach spark plug lead. Start engine, and warm to operating temperature. Stop engine, and re-tighten mounting bolts (or nuts) to specifications. X7507820501 ©11/19 ECHO Incorporated...

  • Page 40: Carburetor Adjustment

    For units equipped with a clutch, be sure the cutting ◆ attachment stops moving when the engine idles. When the unit is turned off, make sure the cutting ◆ attachment has stopped before the unit is set down. X7507820501 ©11/19 ECHO Incorporated...

  • Page 41: Lubrication

    Remove flex cable (C), wipe clean and apply 15 ml (1/2 oz.) of lithium based grease. Slide the flexible cable back in the drive housing. DO NOT get dirt on the flex cable. Install and secure cutting attachment assembly. X7507820501 ©11/19 ECHO Incorporated...

  • Page 42: Guide Bar And Saw Chain Replacement

    (E). Turn tension adjustment screw (C) clockwise to take up slack in saw chain. Install guide bar cover (D), and tighten guide bar nuts finger tight and install guide bar cover screw (B). Adjust chain tension. X7507820501 ©11/19 ECHO Incorporated...

  • Page 43: Guide Bar Cover Cleaning

    Hold the bar nose up. Install guide bar cover (D). Install the guide bar nuts (A). Tighten the rear nut first, then tighten the front nut. Install and tighten the guide bar cover screw (B) X7507820501 ©11/19 ECHO Incorporated...

  • Page 44: Filing Standard Saw Chain

    Dull or damaged cutters will result in poor cutting performance, increased vibration, and premature saw chain failure. Always stop engine and disconnect spark plug wire before servicing guide bar and saw chain. Always wear gloves when filing saw chain, otherwise serious personal injury may result. X7507820501 ©11/19 ECHO Incorporated...
  • Page 45 0.635 mm (0.025 in.) slot and end against front cutter raker. File cutter raker with flat file until flush with top of depth gauge. Finish cutter sharpening by rounding front raker edge with flat file. X7507820501 ©11/19 ECHO Incorporated...
  • Page 46 Apply clean oil and rotate saw chain slowly to wash away filings. If saw chain is coated or clogged with resin, clean in kerosene, then soak in oil. Parallel Depth gauge 55° 30° Top plate filing angle Side plate angle X7507820501 ©11/19 ECHO Incorporated...

  • Page 47: Troubleshooting

    - Inter- plug wire See your dealer lock switch Incorrect gap - Adjust to No spark Covered with 0.65mm (0.026 Spark at carbon - in.) plug Fouled with Clean or replace fuel - Plug plug defective X7507820501 ©11/19 ECHO Incorporated...
  • Page 48 See your dealer problem crank Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark by grounding spark plug near cylinder plug hole, otherwise serious personal injury may result. X7507820501 ©11/19 ECHO Incorporated...

  • Page 49: Storage

    Remove the spark plug. Pour 7 cc (0.25 oz.) of fresh, clean, two-stroke engine oil into the cylinder through the spark plug hole. Pull the recoil starter handle 2-3 times to distribute the oil inside the engine. X7507820501 ©11/19 ECHO Incorporated...

  • Page 50: Specifications

    Automatic Rewind Starter Clutch Centrifugal Type Drive Shaft 6.35 mm (1/4 in.) flexible shaft Sprocket Type 6 tooth spur, 9.53 mm (3/8 inch) pitch Shaft Tube Assembly 25 mm (1 in.) Galvanized Steel Gear Case Ratio 1.53 X7507820501 ©11/19 ECHO Incorporated...
  • Page 51 Shoulder Harness Standard Idle Speed 2,750 RPM Clutch Engagement Speed 4,300 RPM Wide Open Throttle Speed 10,900 RPM (W.O.T.) Guide Bar and Saw Chain 305 mm (12 in.); 9.53 mm (3/8 inch) pitch chain, (91) 0.050 gauge X7507820501 ©11/19 ECHO Incorporated...

  • Page 52: Product Registration

    Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
  • Page 53 PPF-2620 PRODUCT REGISTRATION X7507820501 ©11/19 ECHO Incorporated...

  • Page 54: Notes

    NOTES PPF-2620 NOTES X7507820501 ©11/19 ECHO Incorporated...
  • Page 55 PPF-2620 NOTES X7507820501 ©11/19 ECHO Incorporated...
  • Page 56 E60615001001 - E60615999999 ECHO INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com...
